Seat Temperature Element: Testing and Inspection

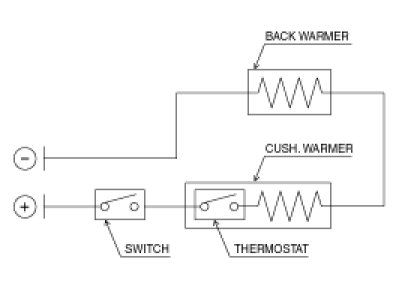

SEAT WARMER INSPECTION

1. Check for continuity and measure the resistance between the terminals.

Standard value : 2.6Ohms ± 10%





2. Operate the seat warmer after connecting the 2P connector, and then check for the thermostat by measuring the temperature of seat surface.
3. Check for continuity between the terminals after disconnecting the 2P connector.

Standard value :
28 ±3.5°C(Continuity),
37 ±3.0°C(Short)
