Rear Door Hinge: Adjustments

ADJUSTMENT

DOOR HINGE
1. Check that the door can be closed easily and properly. If there is a problem, open the door and tighten the door hinge bolts.

Tightening torque
Body side : 35 - 42 Nm (3.5 - 4.2 kg-m, 25 - 30 lb-ft)
Door side : 13 - 26 Nm (1.3 - 2.6 kg-m, 9 - 19 lb-ft)

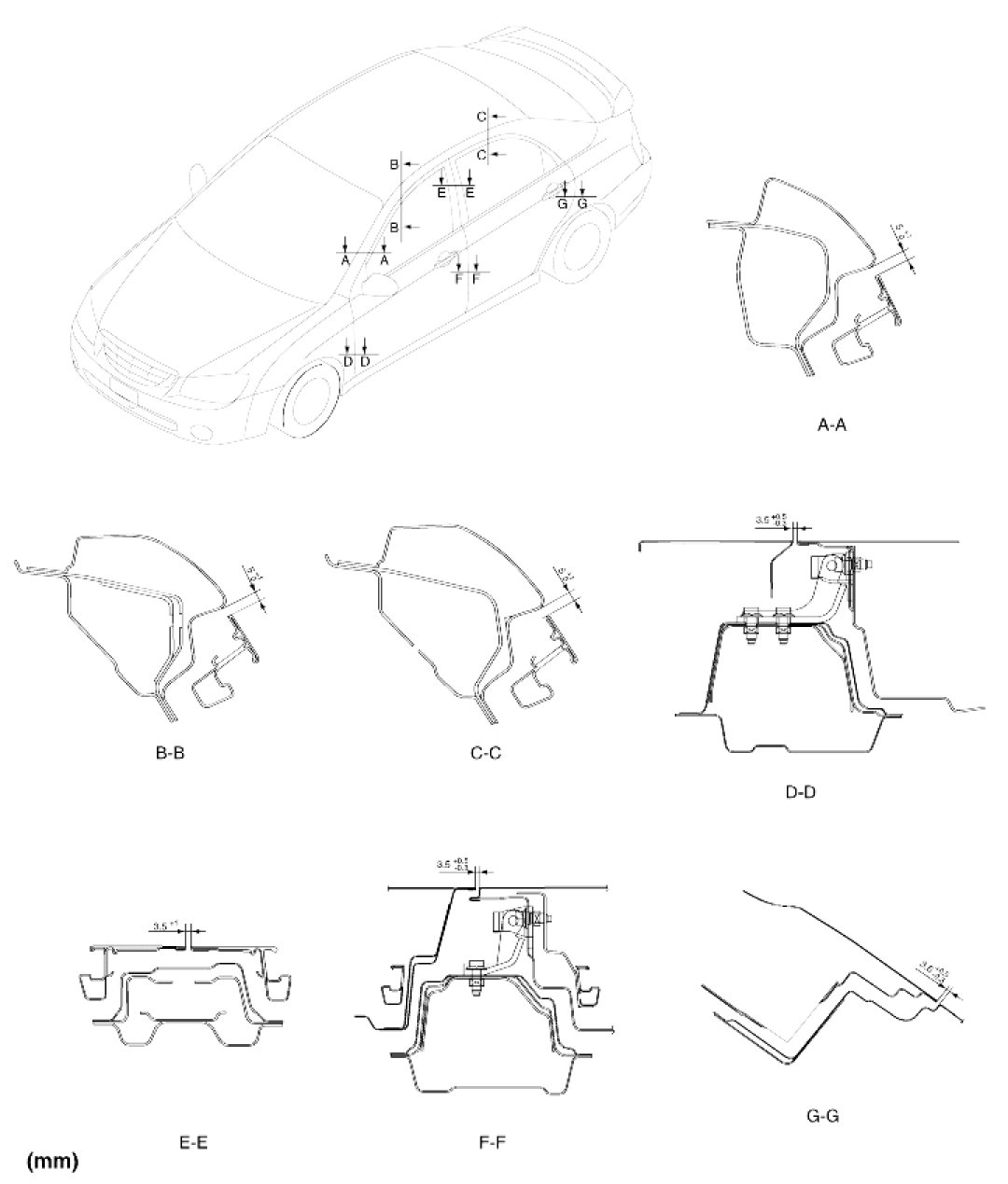

2. Check the offset of the door to the body. If there is a problem, loosen the door hinge bolts and adjust the door.
