P1602

TROUBLESHOOTING FOR DTC





1. DTC Description

The ECM monitors CAN message transferred from TCM and sets DTC P1602 if ECM did not get any message during predetermined period.
If the same error code is set in the next driving cycle, the ECM illuminates the MIL.

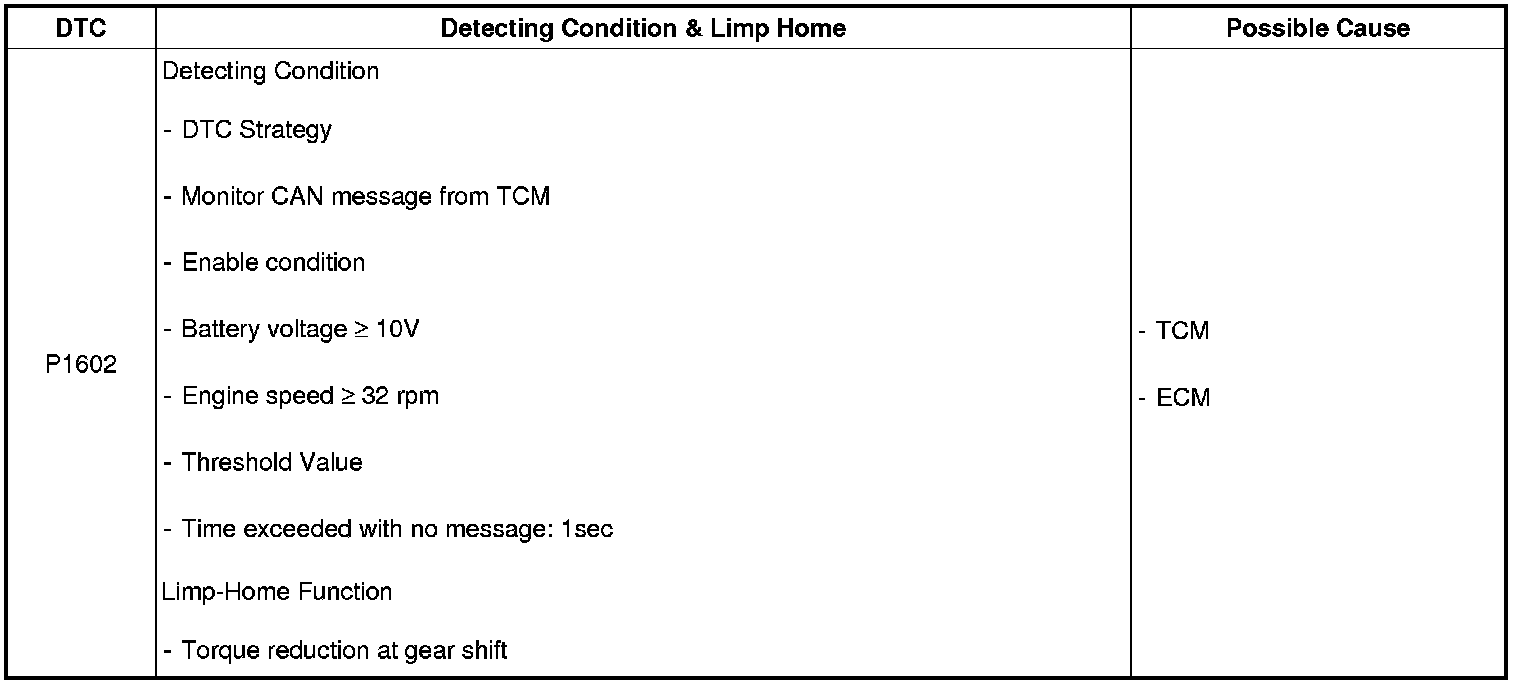

2. Conditions for Setting the DTC

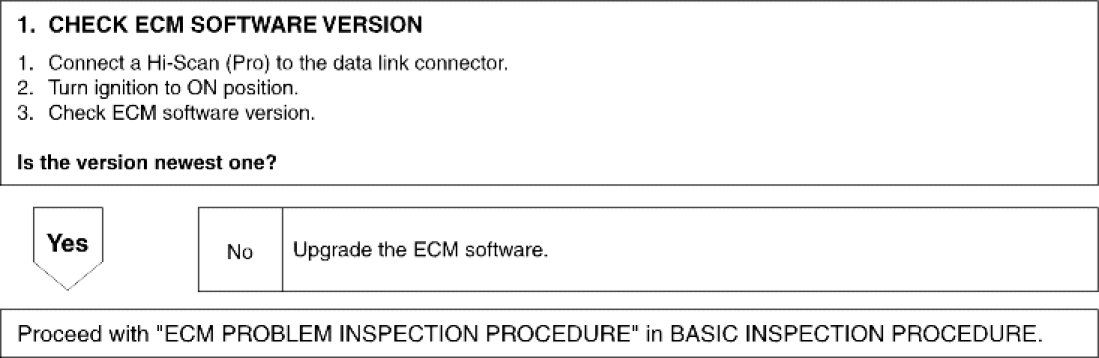

INSPECTION PROCEDURE
