Component Inspection

Component Inspection

Check Solenoid Valve
1. Ignition "OFF"
2. Disconnect "A/T SOLENOID VALVE" connector

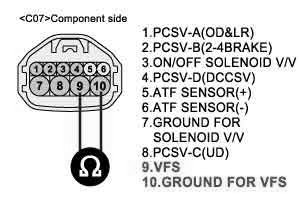

3. Measure resistance between terminal "9 and terminal "10" of the ATM SOLENOID VALVE harness connector
A. Specification: Approximately 3.5 ± 0.2 ohms (25 °C)




4. Is resistance within specifications ?
YES
1) Go to "CHECK PCM/TCM" as below
NO
1) Replace "VF SOL VALVE" as necessary and go to "Verification Vehicle Repair" procedure
Check PCM/TCM
1. Connect scantool to data link connector (DLC)
2. Ignition "ON" & Engine "OFF".
3. Select A/T Solenoid valve Actuator test and Operate Actuator test.
4. Can you hear operating sound for "VF SOL VALVE" Actuator Testing Function ?
YES
1) Go to "Verification of Vehicle Repair" procedure
NO
1) Replace PCM/TCM as necessary and Go to "Verification Vehicle Repair" procedure

CAUTION:
ACTUATOR TEST CONDITION
1. IG SWITCH ON
2. TRANSAXLE RANGE SWITCH is normal
3. P RANGE
4. Vehicle Speed 0 Km/h
5. Throttle position sensor < 1V
6. IDLE SWITCH ON
7. ENGINE RPM 0
