P0606

COMPONENT LOCATION







GENERAL DESCRIPTION

A malfunction is detected by using a checksum technique for verifying data. The digital data is composed of zeros and ones. A checksum is the total of all ones in a string of data. By comparing the checksum value with a stored value, a malfunction can be detected.

DTC DESCRIPTION

The PCM monitors RAM areas and communication connections between micro-controller and output drivers and sets DTC P0606 if failure is detected.
If same error code is set in the next driving cycle, the PCM will illuminate the MIL.

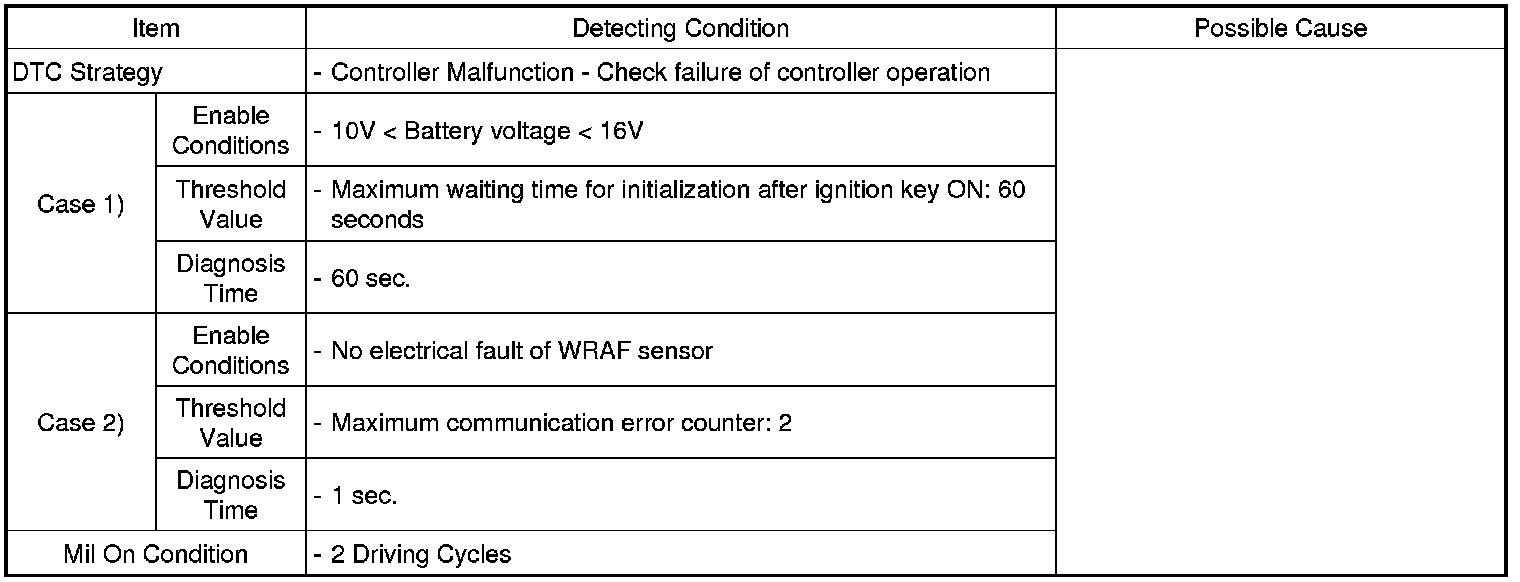

DTC DETECTING CONDITION





MONITOR DTC STATUS

1. Connect scan tool and select "Diagnostic Trouble Codes(DTCs)" mode.
2. Press F5(INFO) to select DTC information from the DTCs menu.
3. Confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
4. Read "DTC Status" parameter.




5. Is parameter displayed "History(Not Present) fault"?

NOTE:
1. History (Not Present) fault : DTC occurred but has been cleared.
2. Present fault : DTC is occurring at present time.

YES
> Fault is intermittent caused by poor contact in the sensor's and/or the PCM's connector, which was repaired but PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure.
NO
> Using a scan tool, check PCM software version and upgrade as necessary. If version is the newest one, check PCM for contamination, deterioration, or damage. Substitute with a known-good PCM and check for proper operation. If the problem is corrected, replace PCM and then go to "Verification of Vehicle Repair" procedure

VERIFICATION OF VEHICLE REPAIR

After a repair, it is essential to verify that the fault has been corrected.
1. Connect scan tool and select "Diagnostic Trouble Codes(DTCs)" mode.
2. Press F5(INFO) and confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
3. Read "DTC Status" parameter.
4. Is parameter displayed "History(Not Present) fault"?
YES
> System performing to specification at this time. Clear the DTC.
NO
> Go to the applicable troubleshooting procedure.
