W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system may caused from poor harness and terminals. These faults can be caused by interference from other electrical systems and mechanical or chemical damage.
2. Check the following conditions:

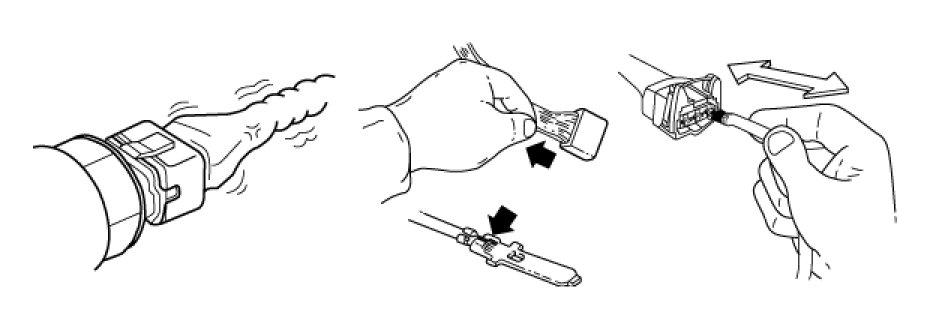

(1) Check for damaged harness and terminals: contact resistance, oxidation, bent or broken terminals.
(2) Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks and poor terminal to wire connection

CAUTION: Using a suitable male pin to ensure that contact in sockets is good. The pin should remain in position when pulled gently.





3. Is a problem found ?
YES
1) Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO
1) Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "Verification of Vehicle Repair" procedure
