System Inspection

System Inspection

1. Coolant Level Inspection
(1) Check the cooling system coolant level.
(2) Is the coolant in the reservoir at the proper level ?
YES
1) Go to next step as below
NO
1) Repair or add engine coolant as necessary and go to "Verification of Vehicle Repair" procedure
2. Thermostat Inspection
(1) Check if the thermostat bypass valve is stuck in the open position or if the correct type of thermostat was installed. Replace thermostat as necessary and go to "Verification of Vehicle Repair" procedure
(2) Check the valve opening temperature of the thermostat
Specification (Valve opening temperature) : 80 - 84 °C (176 - 183 °F):
(3) If the opening temperature is not as specified, Replace thermostat as necessary and go to "Verification of Vehicle Repair" procedure.
If OK, go to next step as below
3. ECT Sensor Inspection
(1) Ignition "OFF"
(2) Disconnect ECTS connector

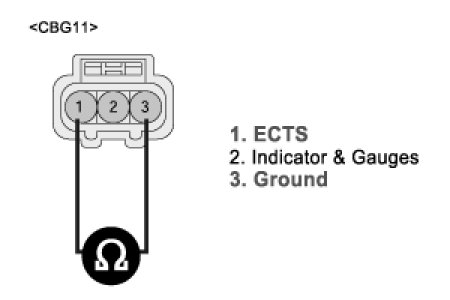

(3) Measure resistance between terminals 1 and 3 of the sensor connector (Component side)

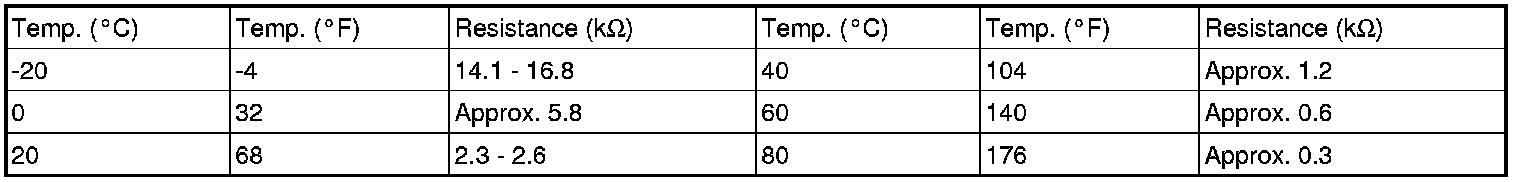

A. Specification :









(4) Is resistance within the specification ?
YES
1) Go to next step as below
NO
1) Check ECTS for contamination, deterioration, or damage. Substitute with a known-good ECTS and check for proper operation. If the problem is corrected, replace ECTS and then go to "Verification of Vehicle Repair" procedure
