General Information

Component Location





General Description

The normal operating temperature of the HO2S (Heated Oxygen Sensor) ranges from 350 to 850 °C (662 to 1562 °F). The HO2S heater greatly decreases the amount of time required for fuel control to become active. The ECM provides a pulse width modulated control circuit to adjust current through the heater. When the HO2S is cold, the value of the resistance is low and the current in the circuit is high. On the contrary, if the temperature in the resistor of the sensor rises, the current drops gradually.

DTC Description

ECM sets DTC P0037 if the ECM detects that the rear HO2S heater control line is short to ground.

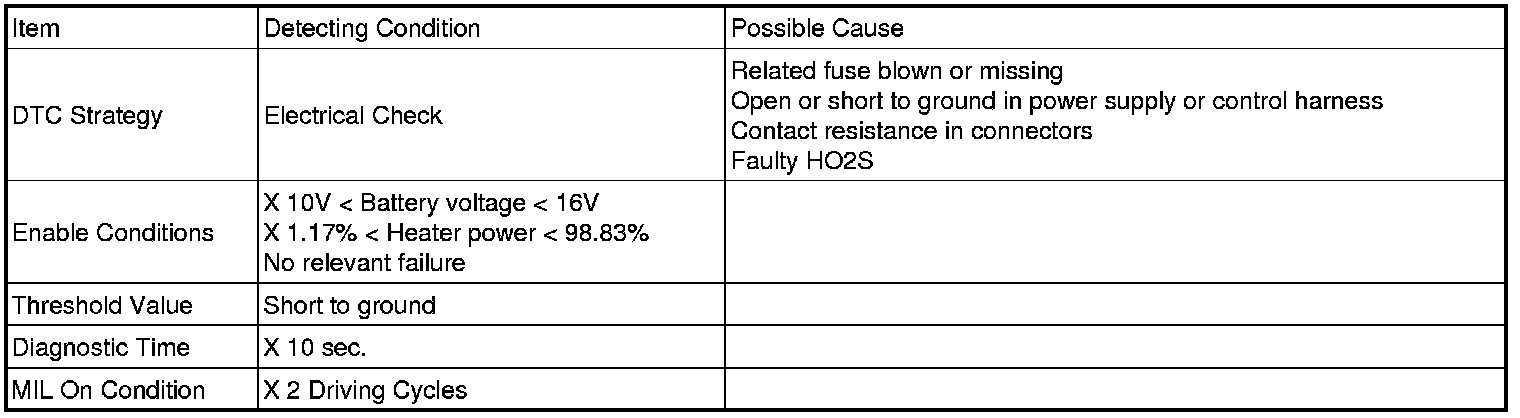

DTC Detecting Condition





Specification





Schematic Diagram





Signal Waveform
