A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Fuel System - Troubleshooting
Fuel System - Troubleshooting

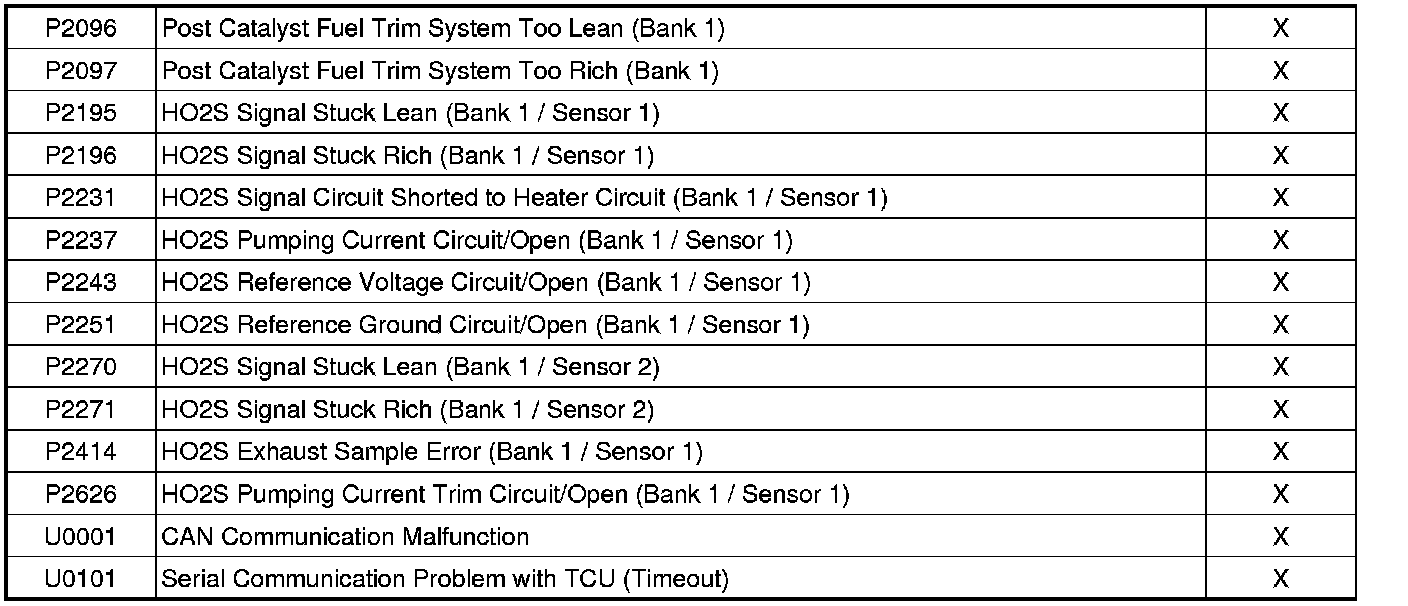

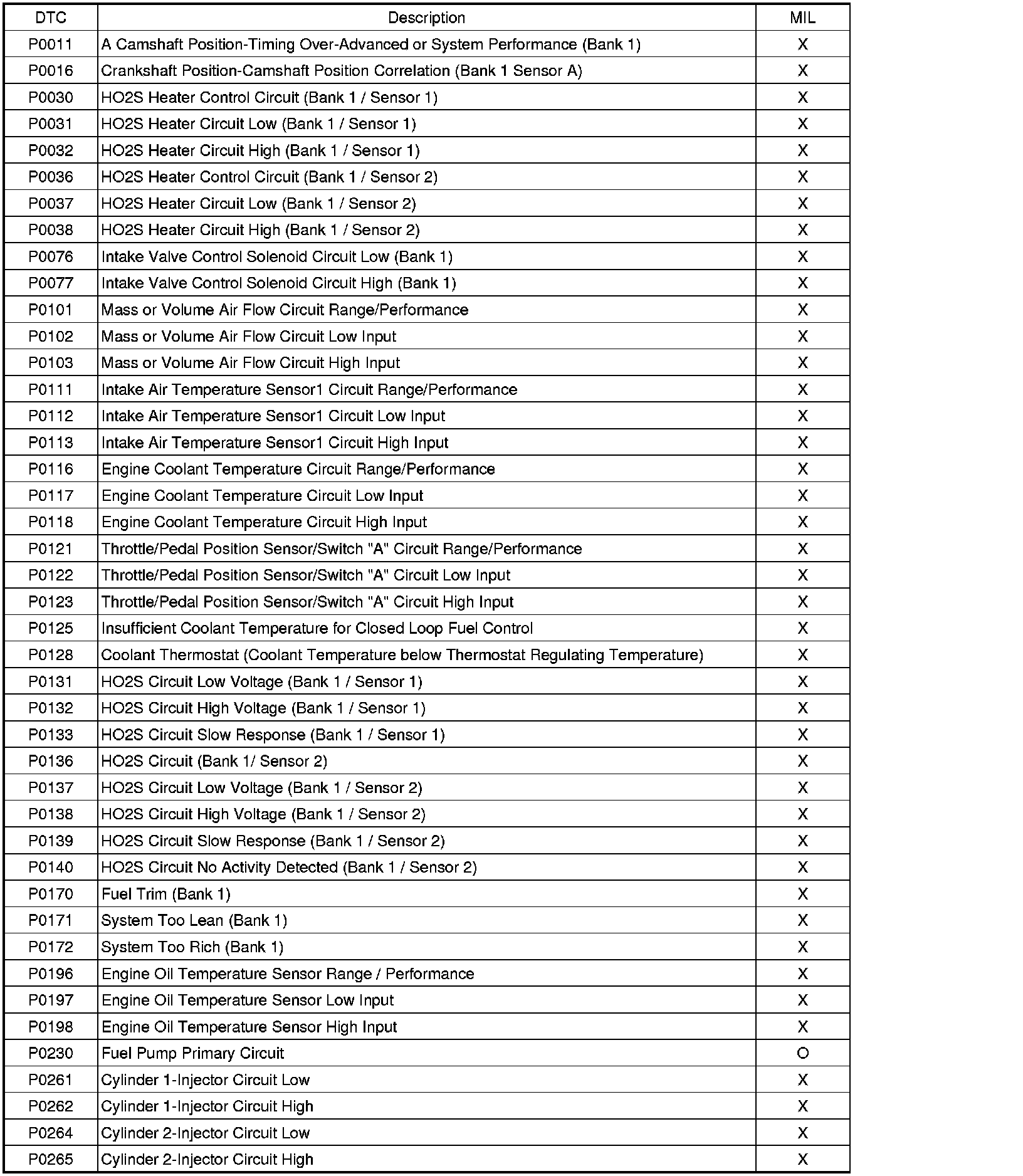

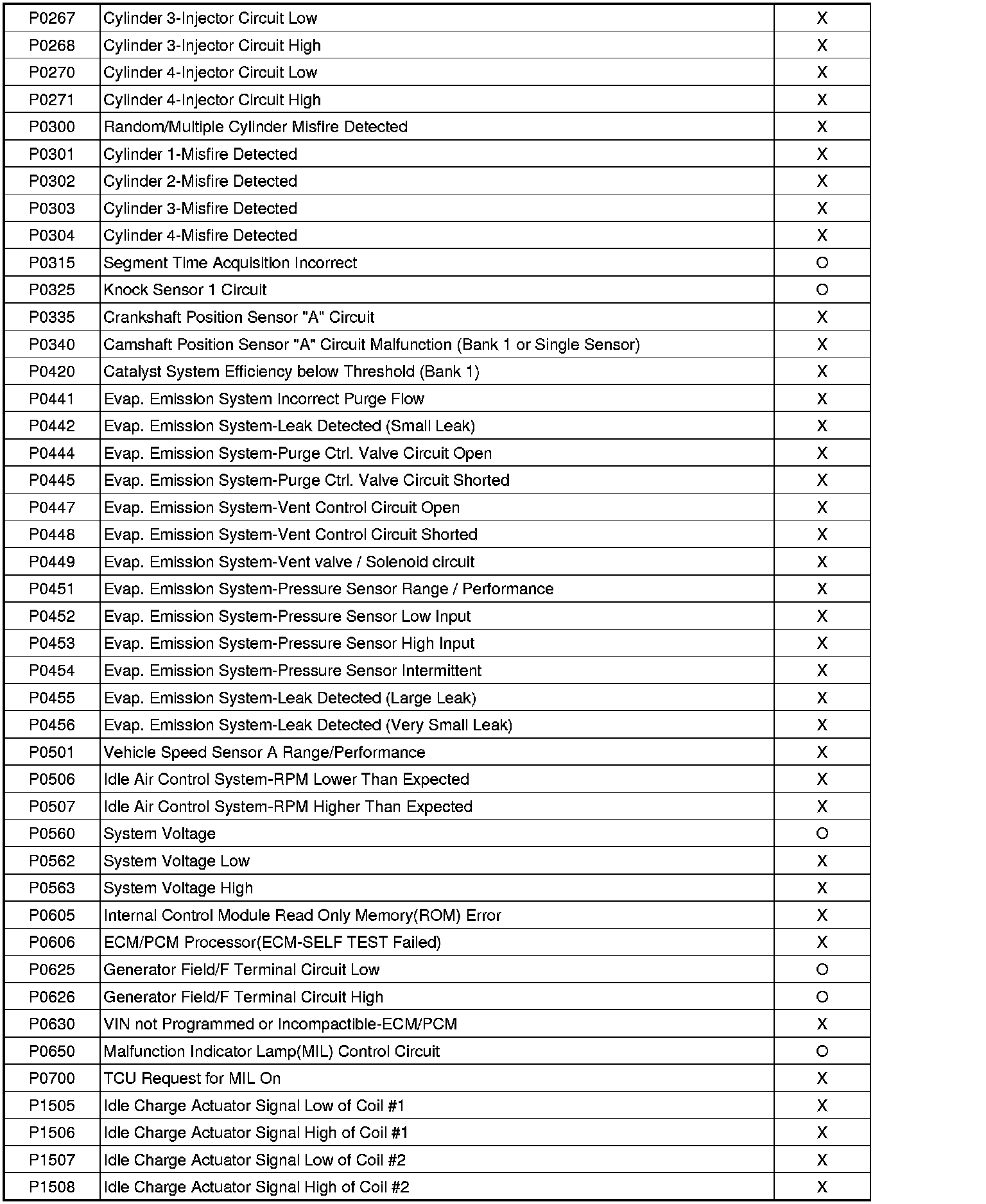

INSPECTION CHART FOR DIAGNOSTIC TROUBLE CODES (DTC)
NOTE:
X: MIL ON & MEMORY
O: MIL OFF & MEMORY
