General Information

Component Location





General Description

CAN communication is applied just for FTCS's (Full Traction Control Systems) installed in the vehicle for sending requirement data, such as Torque reduction, the number of fuel cut cylinders, and TCS control requests, to the Engine ECM & TCM. The Engine ECM performs fuel cut functions according to requests from the ABS ECU and retards ignition timing by torque reduction requests. The TCM maintains current gear positions during TCS control time, by not increasing power which causes a Kickdown shift.

DTC Description

The HECU checks the CAN communication lines for normal TCS control, and sets this code if the data received between the EMS2 and TCU is not the same. The HECU will not detect this code until 2 seconds after the IG KEY is turned ON.

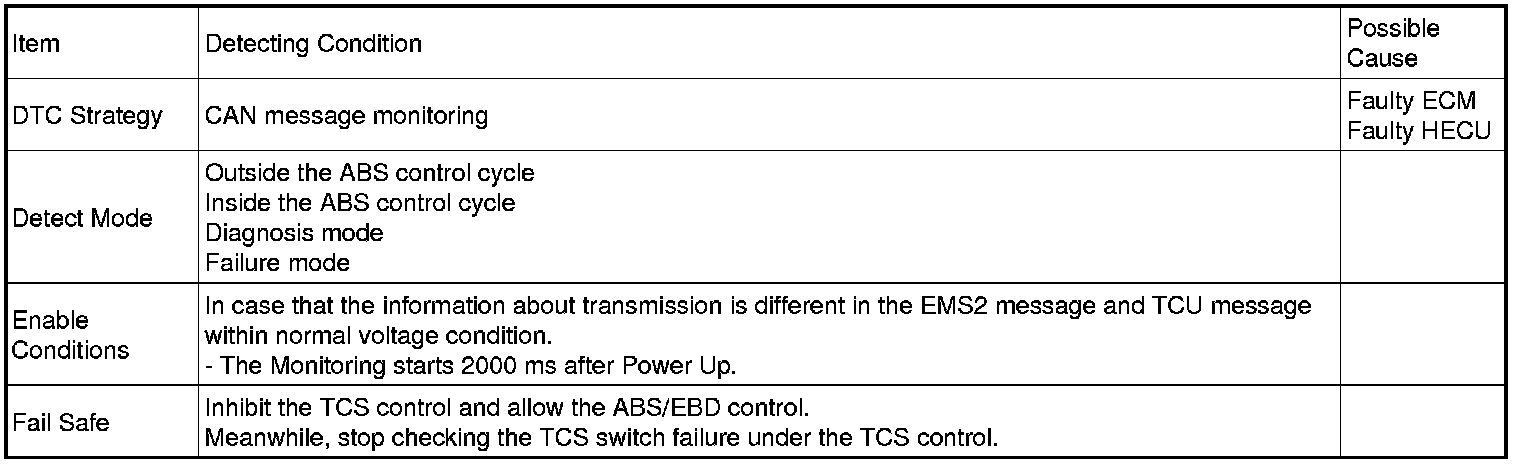

DTC Detecting Condition





Schematic Diagram
