W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found ?
YES
1) Repair as necessary and then go to "Verification of Vehicle Repair" procedure.
NO
1) Go to "Signal Circuit Inspection" procedure.

Signal Circuit Inspection

1. Ignition "ON" & Engine "OFF" & TCS Switch"ON".

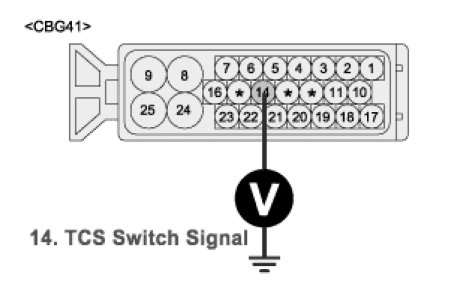

2. Measure voltage between terminal "14" of the HECU harness connector and chassis ground.
A. Specification : Approx B+




3. Is the measured voltage within specifications ?
YES
1) Go to "Component Inspection" Procedure.
NO
1) Check for damaged harness and poor connection in the power harness between the battery terminal (+) and the terminal "14" of the HECU harness connector. Check for open or blown 10A fuse referring to "Circuit Diagram". Repair as necessary and then go to "Verification of vehicle Repair" procedure.
2) If OK, Go to "Component Inspection" Procedure.
