Component Inspection

Component Inspection

1. Turn ON 'TPMS exciter'.
2. Select "TIRE SENSOR CONFIG (EXCITER)" mode.

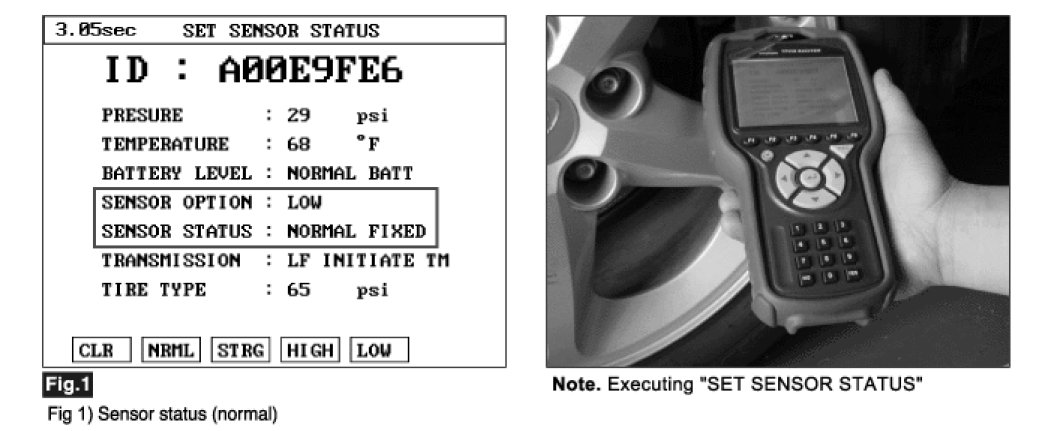

3. Execute "SET SENSOR STATUS" of each wheel.




4. Is data unable to be retrieved for any sensor ?
YES
1) Check for damaged of TPMS sensor on affected wheel.
2) Replace TPMS sensor if necessary and register sensor ID with 'TPMS exciter'.
3) Go to "Verification of Vehicle Repair" procedure.
NO
1) Substitute with a known-good TPMS receiver module and check for proper operation.
2) If the problem is corrected, replace TPMS receiver module and then go to "Verification of Vehicle Repair" procedure.
