Monitor Scantool Data

Monitor Scantool Data

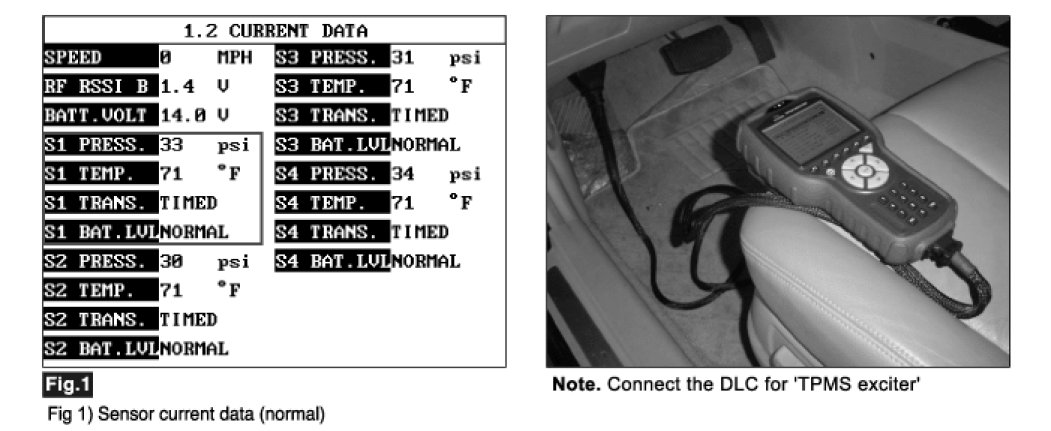

1. Park the vehicle on a level surface.
2. Connect 'TPMS exciter' or scantool to Data Link Connector (DLC).
3. Select "TPMS DIAGNOSIS" mode.
4. Select the "FULL" mode of "CURRENT DATA" function.
5. Monitor SENSOR 1's temperature parameter on the 'TPMS exciter' or scantool after 4 minutes.
A. Specification : Less than 230 °F (110 °C)

CAUTION: DTC will be demoted at temperature < 140 degree Fahrenheit (60 degree Celsius)




6. Is parameter normal ?
YES
1) Fault is intermittent. It has been repaired and TPMS receiver module memory is not cleared yet.
2) Go to "Verification of vehicle Repair" procedure.
NO
1) Go to "Component Inspection" procedure.
