General Information

Component Location





General Description

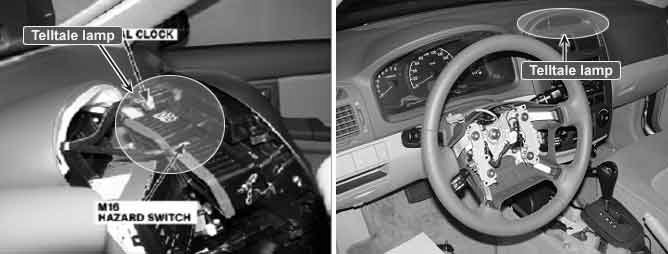

The SRS Telltale Lamp is located on the center of crash pad consists with the Digital Clock. When the passenger seat are unoccupied, the Telltale Lamp lights up for the notice, and if passenger are occupied under seat, Telltale Lamp are goes off automatically.

DTC Description

DTC B2502 is recorded when occurrence of a malfunction in the Telltale indicator Lamp system.

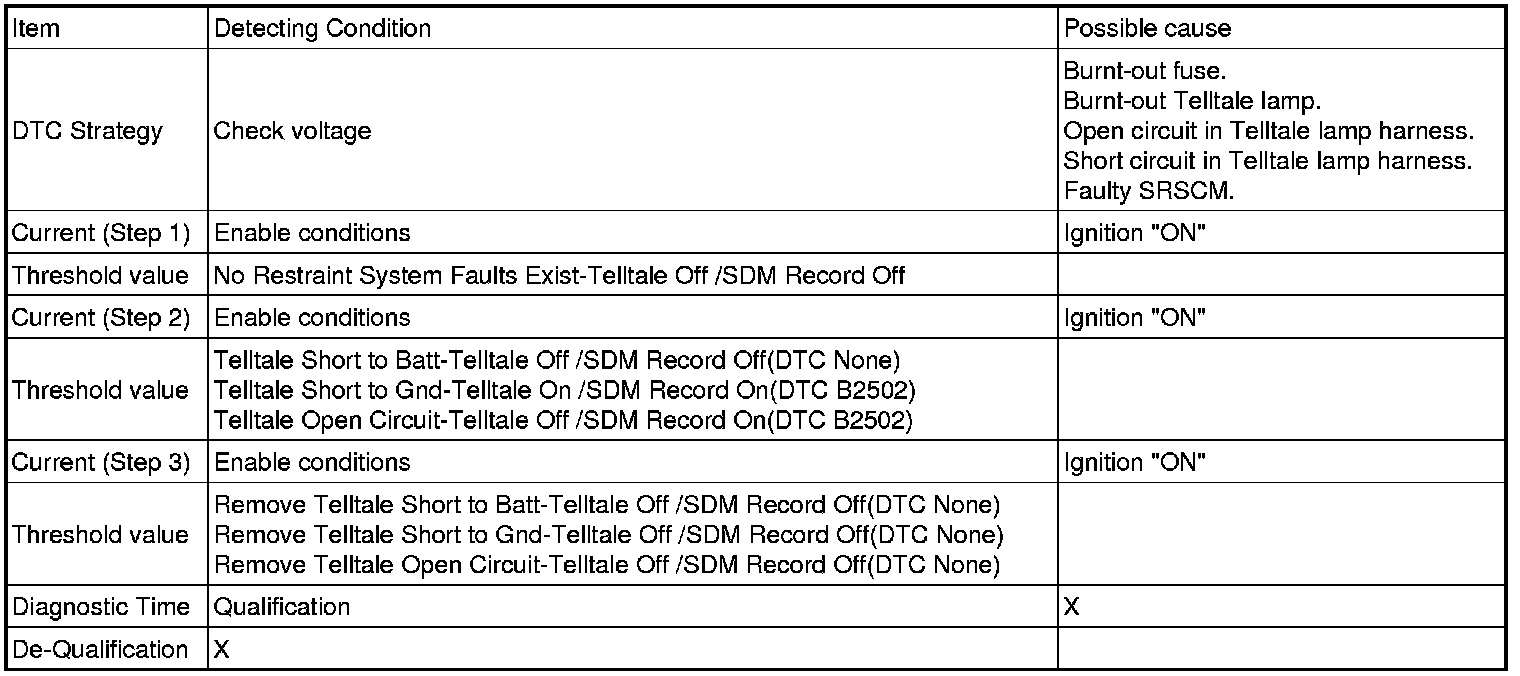

DTC Detecting Condition





Schematic Diagram
