General Information

Component Location





General Description

In collision, SRSCM sends current to pertinent air bag for deployment. Besides SRSCM performs diagnosis of overall air bag system and light warning lamp if there's any fault in it. Main functions of SRSCM are as follows.
1. Collision and Passenger presence Detection.
2. Determination of BPT, BUPT and air bag deployment in accordance with given condition.
3. Internal and external diagnosis of air bag system.
4. Warning by warning lamp if there's any fault in airbag system.
5. Proffering data for scantool diagnosis.

DTC Description

When the Crash (Belt pretensioner 6 times deployment) recorded in the SRSCM.

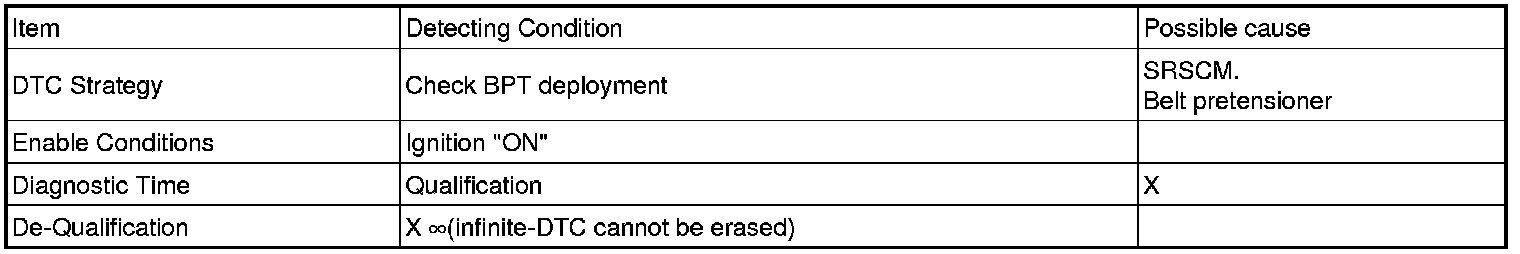

DTC Detecting Condition

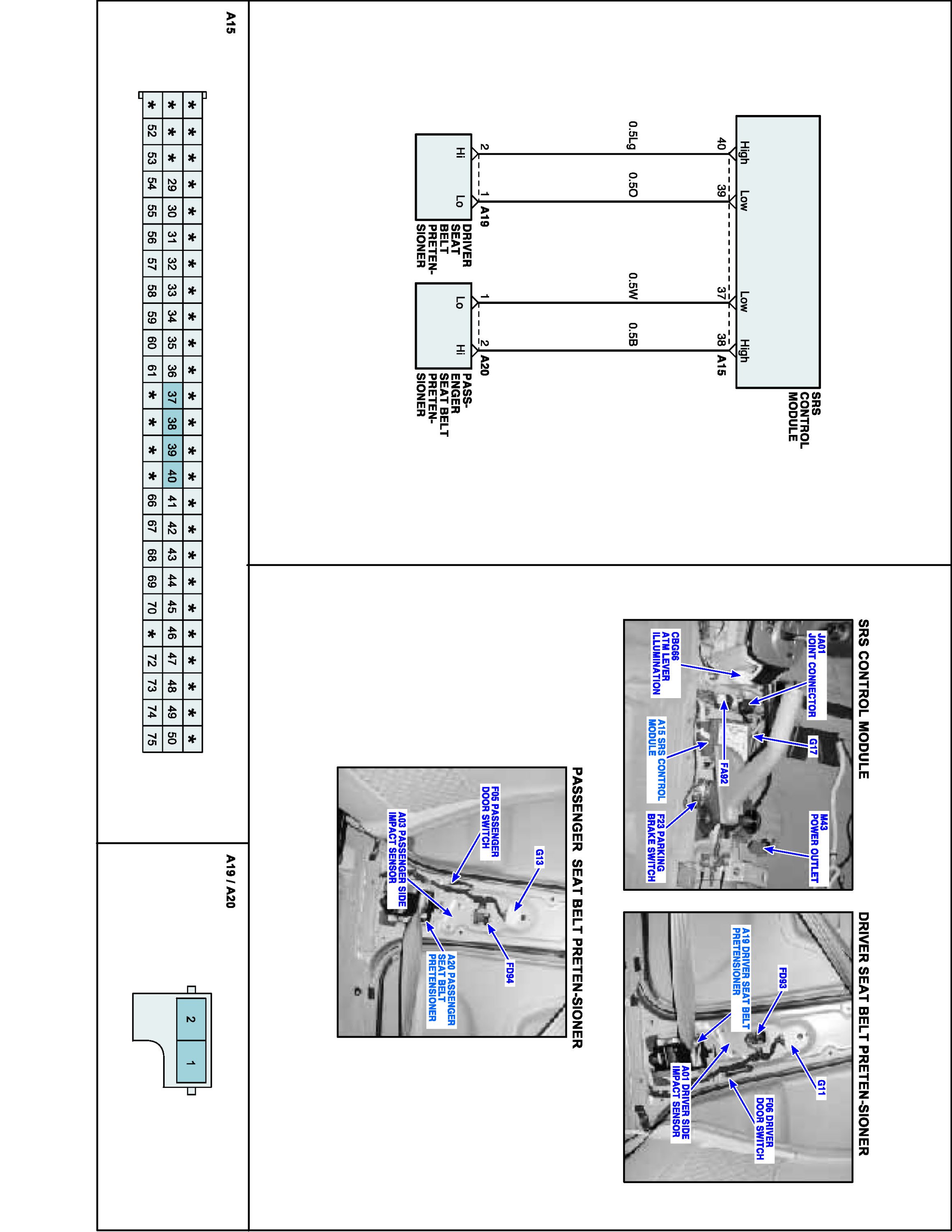

Schematic Diagram
