General Information

Component Location





General Description

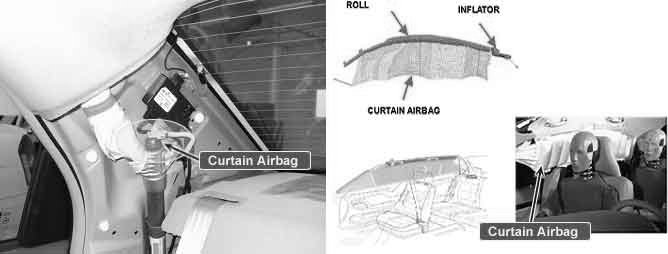

Curtain Airbag (hereinafter referred to CAB) is located at driver and passenger side of headliner It protects passenger's head and shoulder from fragments of glass or something sharpen caused by overturn. CAB is consist of air bag and inflator. Air bag reduces impact of collision by filled up gas. Inflator keeps gas and uses it to deploy air bag on collision.

CAUTION: Never measure resistance of CAB directly, Current of measuring device may cause unexpected air bag deploy.

DTC Description

The SRSCM sets DTC B1476 if there is a short to power in DCAB harness.
*In this case, SRSCM checks if there's any fault in circuit by sending current for a while.

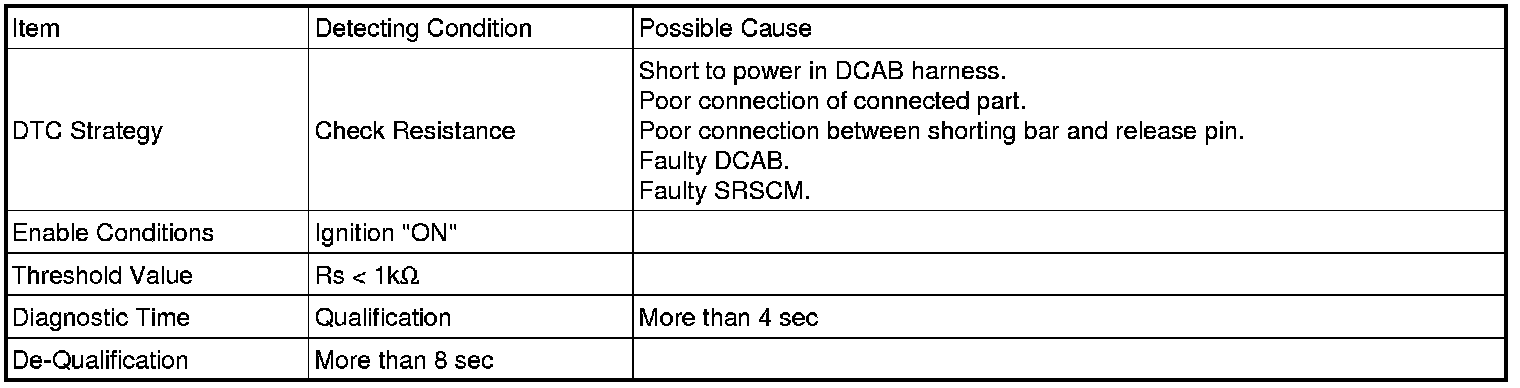

DTC Detecting Condition





Specification





Schematic Diagram
