General Information

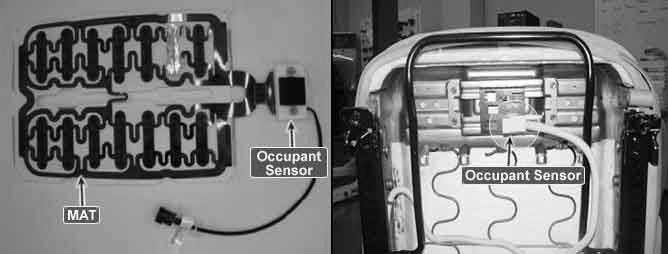

Component Location





General Description

The system is intended to classify the occupancy status of the front passenger seat in a motor vehicle based upon the measured force on the bottom seat cushion. The system also communicates to the SRSCM whether to allow or inhibit the deployment of the passenger airbags and/or pretensioner based upon this status.
The System also measured dynamic responses of the occupant. This information is used to identify when a child seat is cinched down tightly with the seat belt, and to also determine if the seat is unoccupied.
However, the dynamic measurements are not intended, nor capable of monitoring the seating position of the occupant, nor can they determine the proximity of the occupant to the inflator modules. The system should not be confused with an occupant position recognition system, or any other occupant proximity sensor. The Passenger Occupant Detecting System (PODS) utilizes bladder placed between the passenger seat cushion and suspension to measure the occupant's loading force on the vehicle seat.
The bladder is connected to pressure sensor and ultimately to an electronic control unit (ECU), both of which are mounted under the seat pan. The quantitative force determined by the system is compared to a given threshold for determination of passenger airbag suppression. Air bag reduces impact of collision by filled up gas. Inflator keeps gas and uses it to deploy air bag on collision.

CAUTION: Never measure resistance of CAB directly, Current of measuring device may cause unexpected air bag deploy.

DTC Description

The SRSCM sets above Diagnosis trouble code if it detects that the Passenger OC system ECU unit is defected.

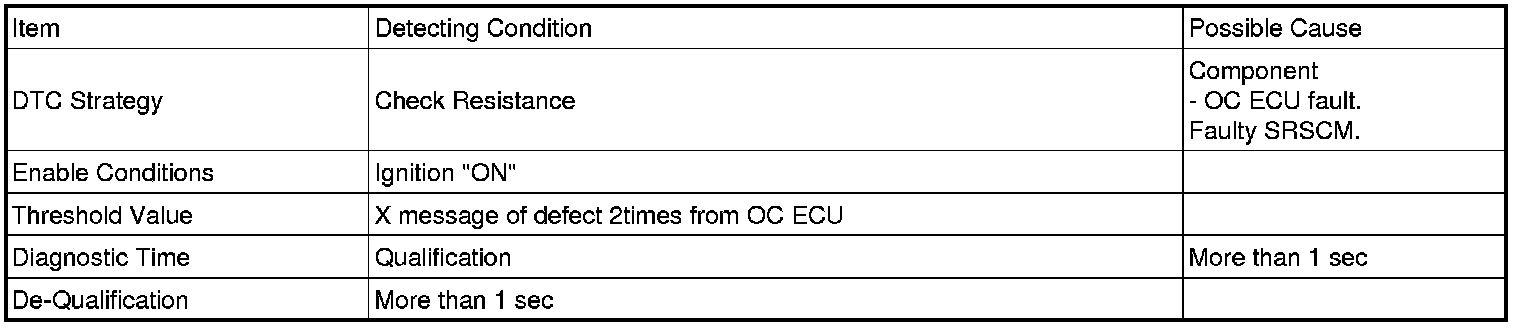

DTC Detecting Condition





Specification





Schematic Diagram
