General Information

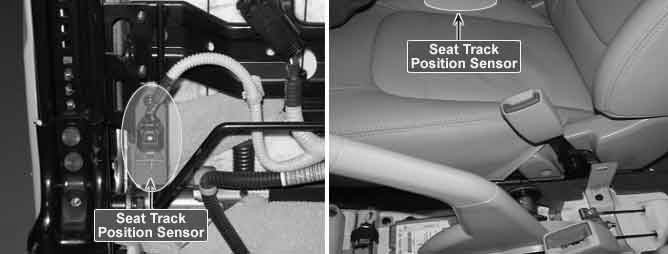

Component Location





General Description

STPS located underneath driver seat detects horizontal position of driver seat and delivers it to SRSCM. Signal of STPS is the one of major parameters that determine the way dual output type airbag deploys.

DTC Description

The SRSCM sets DTC B1387 if there is a short to ground in Driver STPS harness.

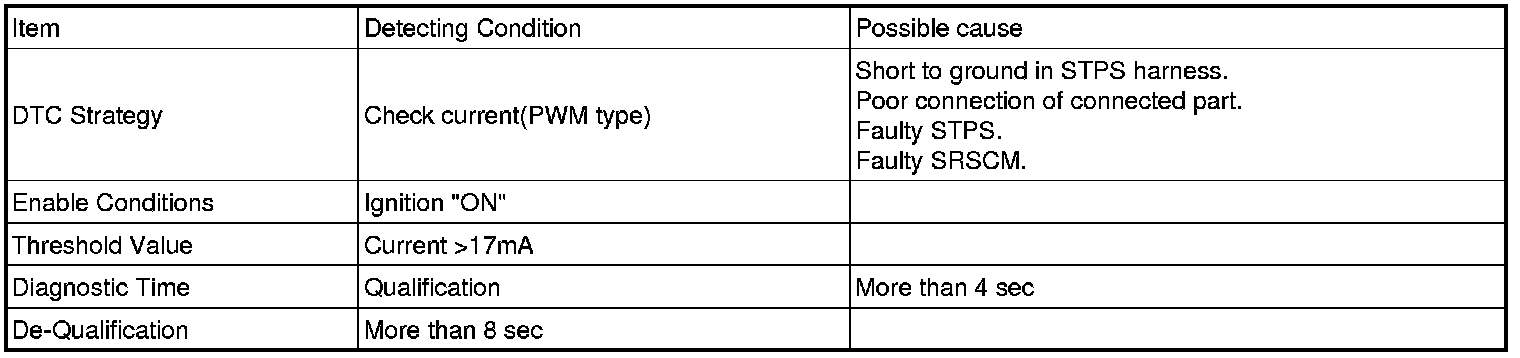

DTC Detecting Condition

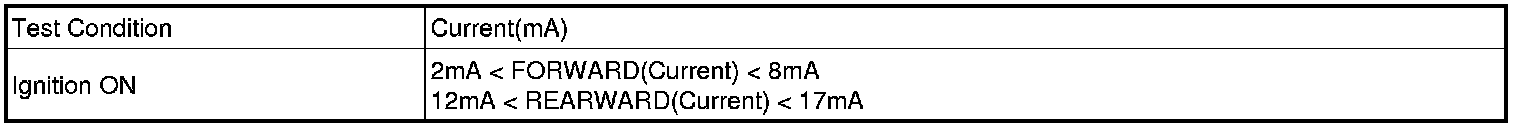

Specification

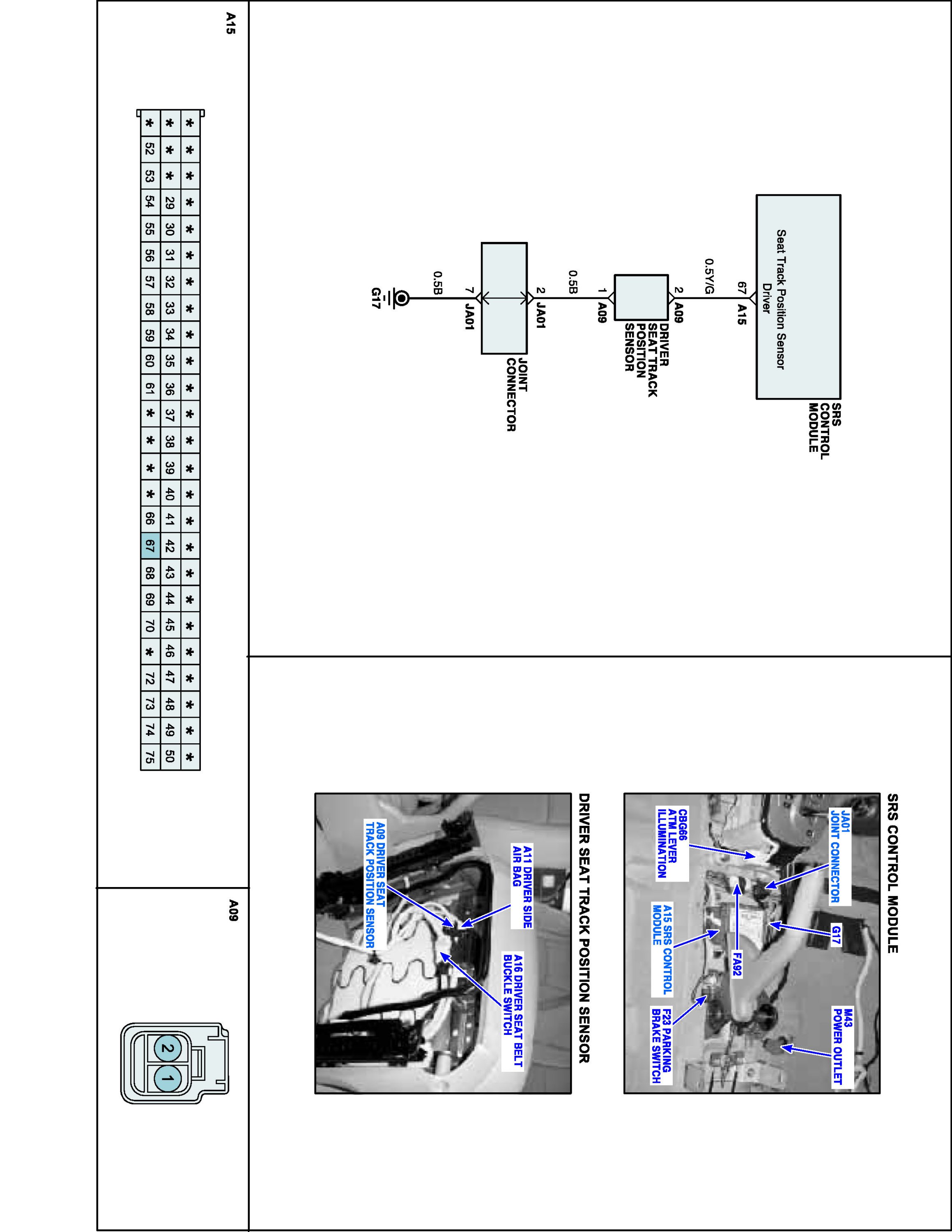

Schematic Diagram
