General Information

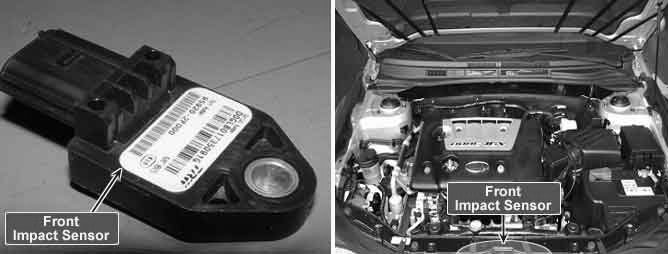

Component Location





General Description

Front Impact Sensor (FIS) located at Front Center body of the front of engine room detects head-on collision. When FIS delivers collision signal to SRSCM, SRSCM checks if safing sensor located in SRSCM detects collusion. and if Front Center body FIS and safing sensor detects collision simultaneously, SRSCM operates front air bag.

DTC Description

The SRSCM sets DTC B1338 if there is any fault in Center side front impact sensor.

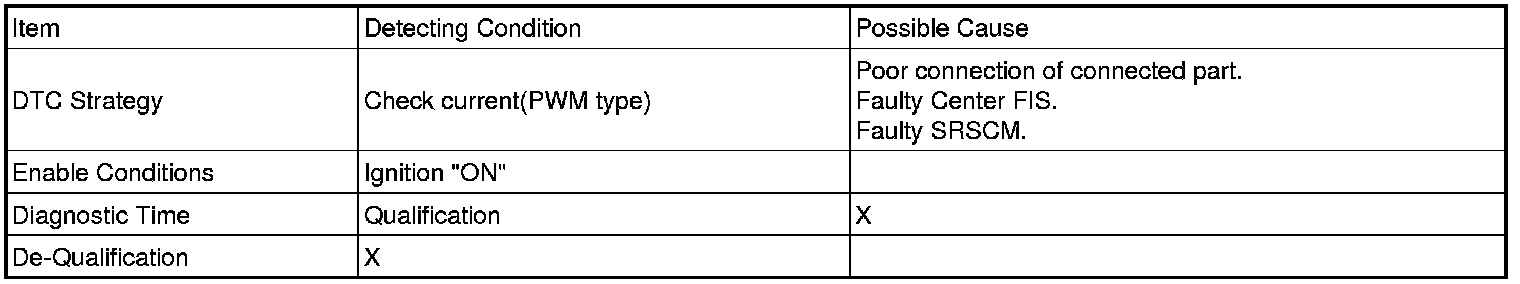

DTC Detecting Condition





Schematic Diagram
