Home >> Kia >> 2007 >> Rondo V6-2.7L >> Repair and Diagnosis >> Wiper and Washer Systems >> Sensors and Switches - Wiper and Washer Systems >> Windshield Washer Switch >> Testing and Inspection >> Rear Washer Switch

Rear Washer Switch

REAR WASHER SWITCH

INSPECTION

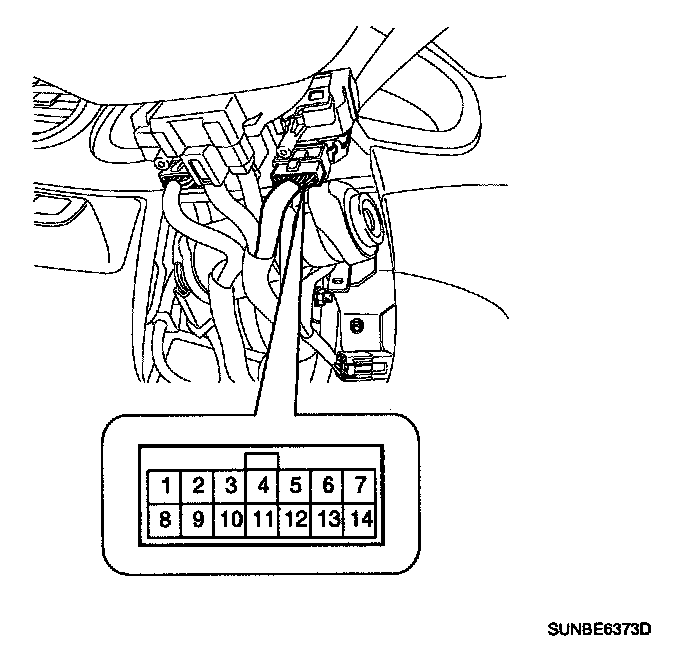

1. With the rear wiper & washer switch in each position, make sure that continuity exists between the terminals. If continuity is not as specified, replace the multifunction switch.

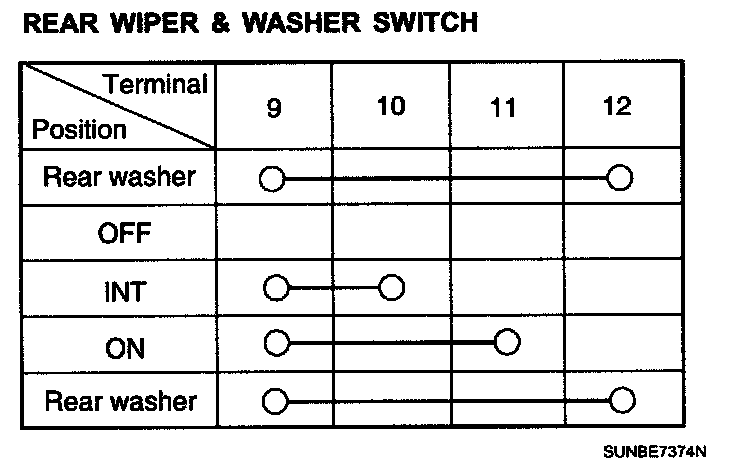

REAR WIPER & WASHER SWITCH
