Mechanical System

MECHANICAL SYSTEM

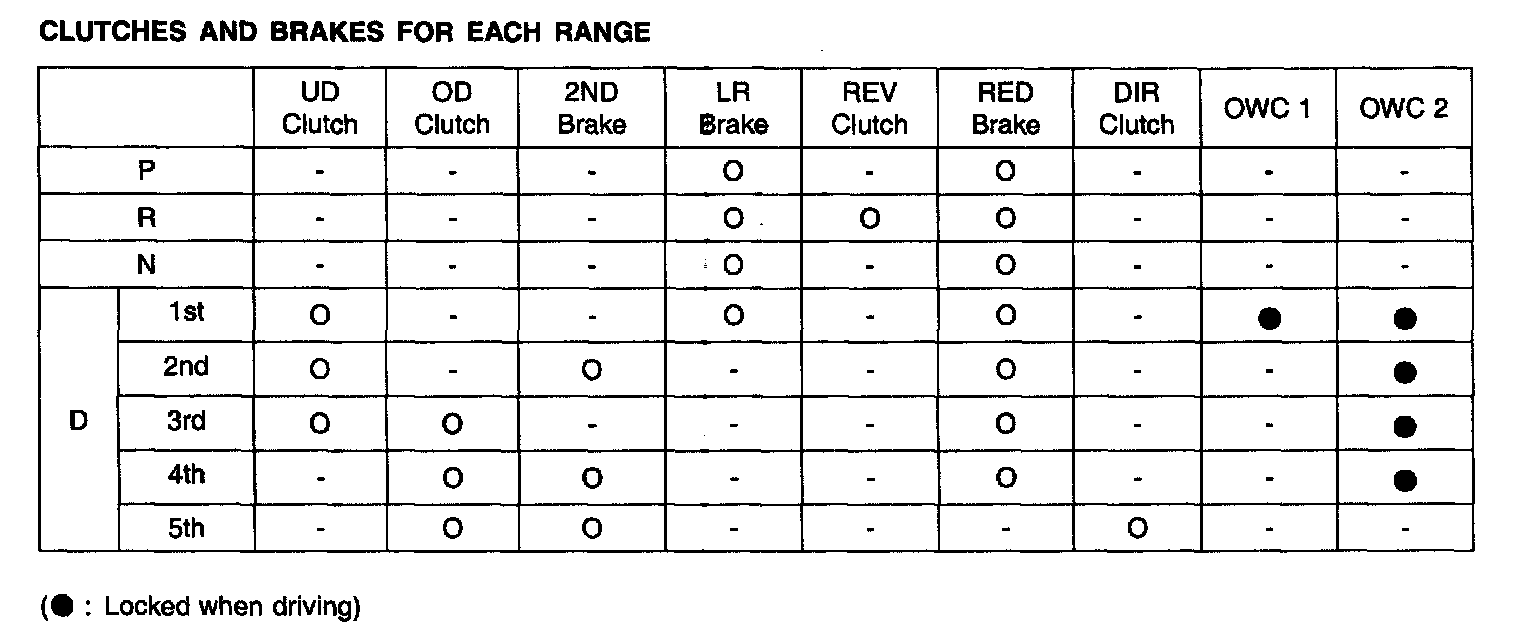

Clutches And Brakes For Each Range:

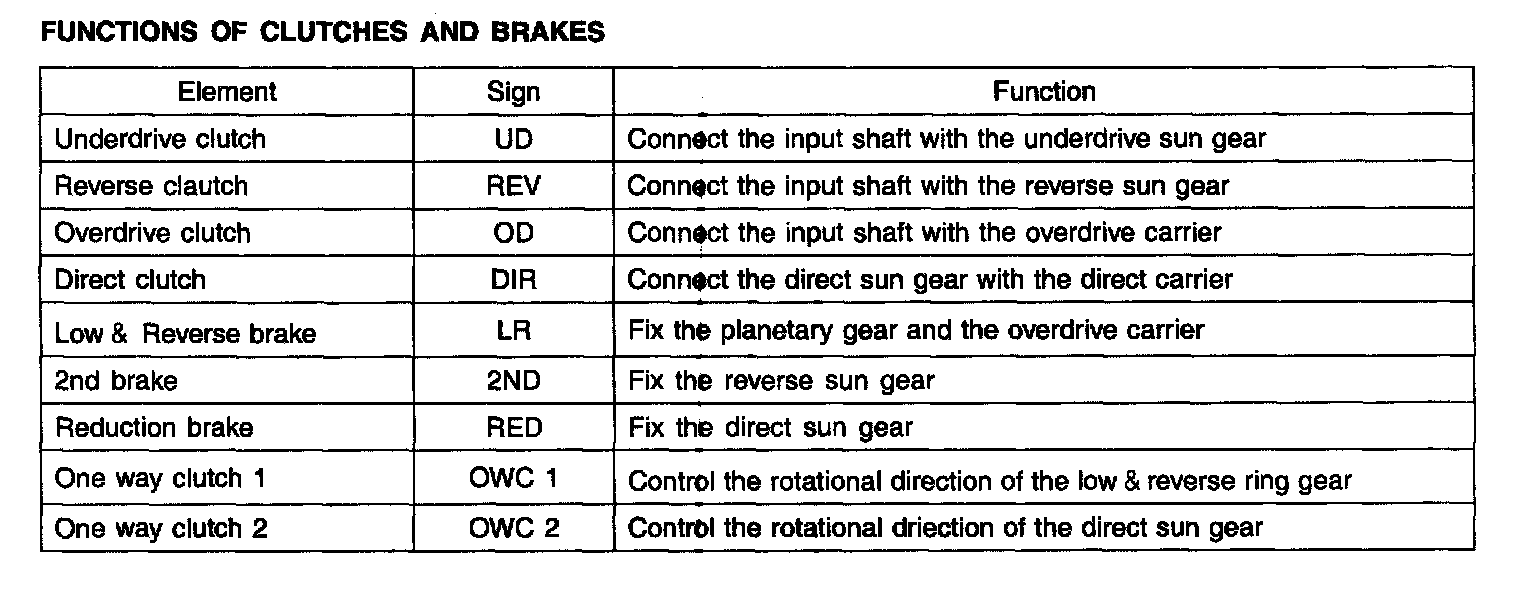

Functions Of Clutches And Brakes:
