Automatic Transaxle Hydraulic Circuit

AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT

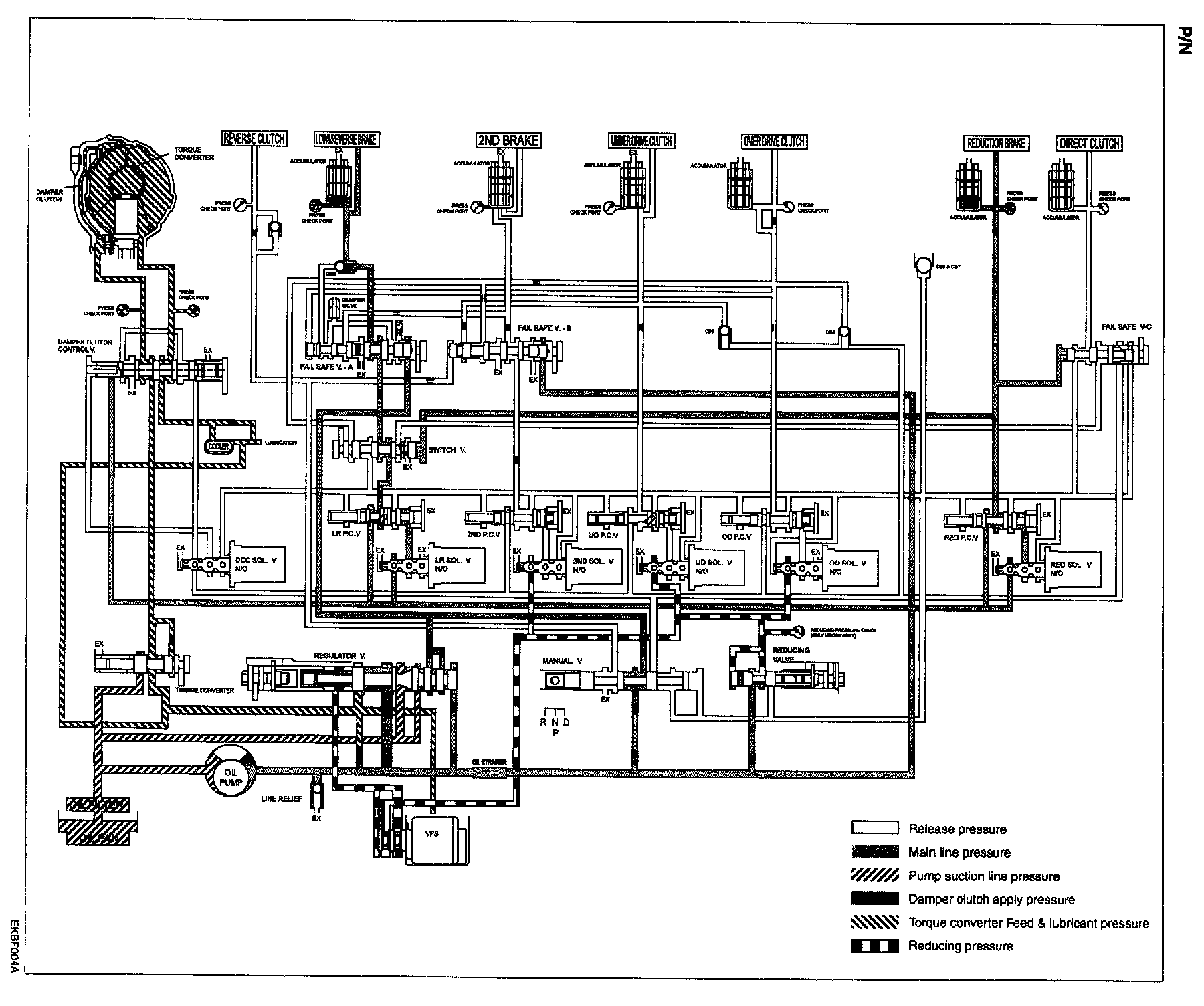

P/N:

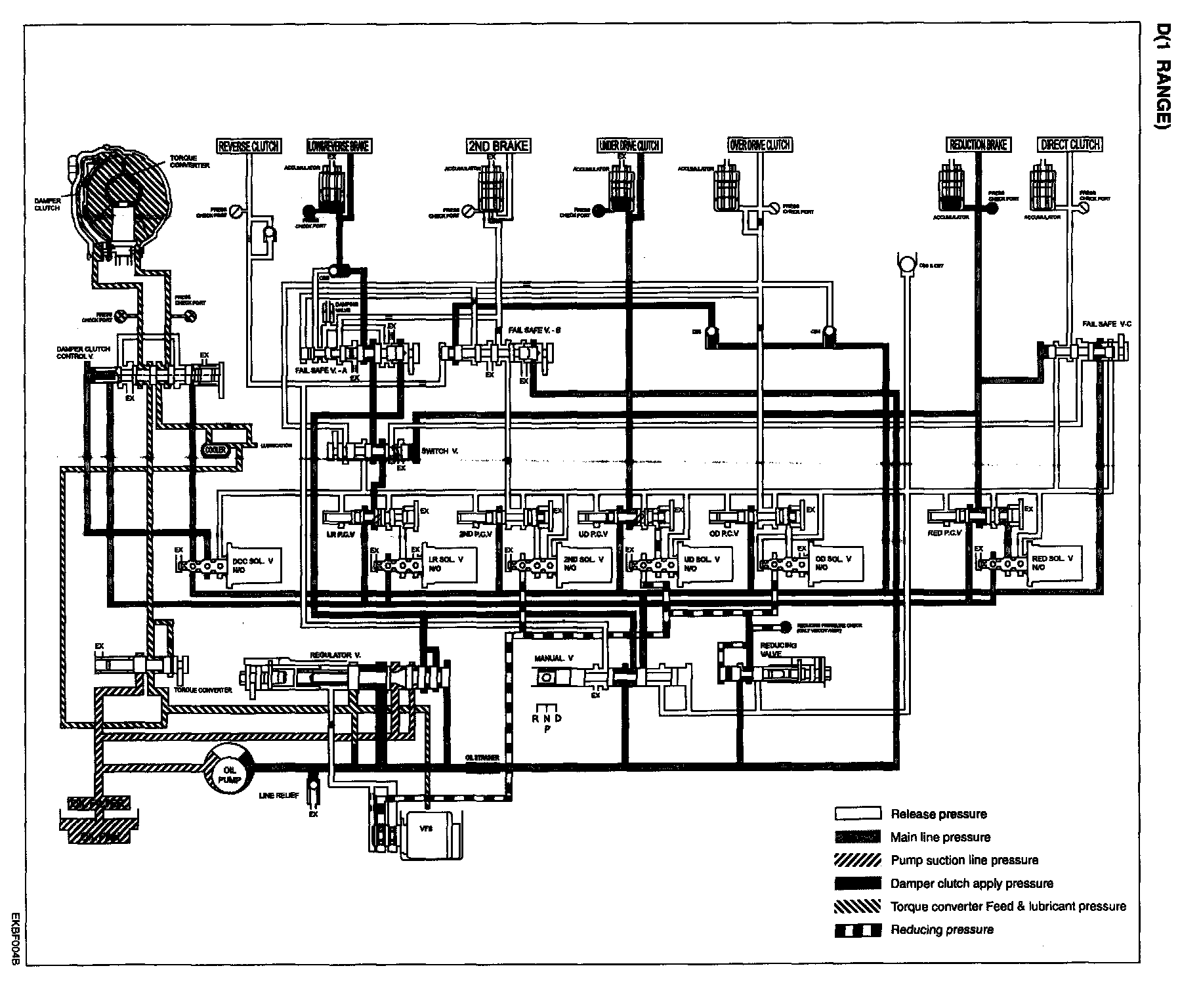

D(1 Range):

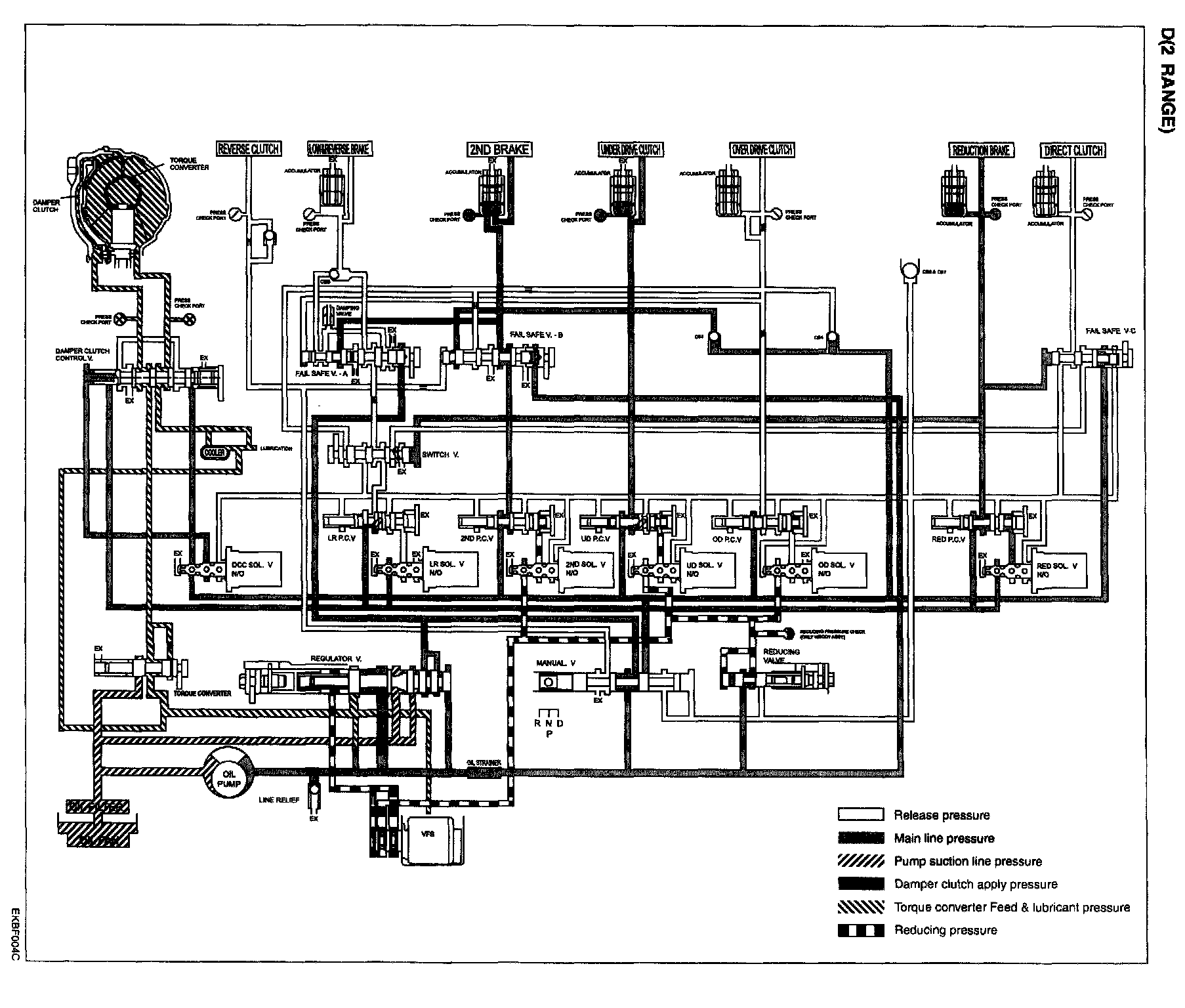

D(2 Range):

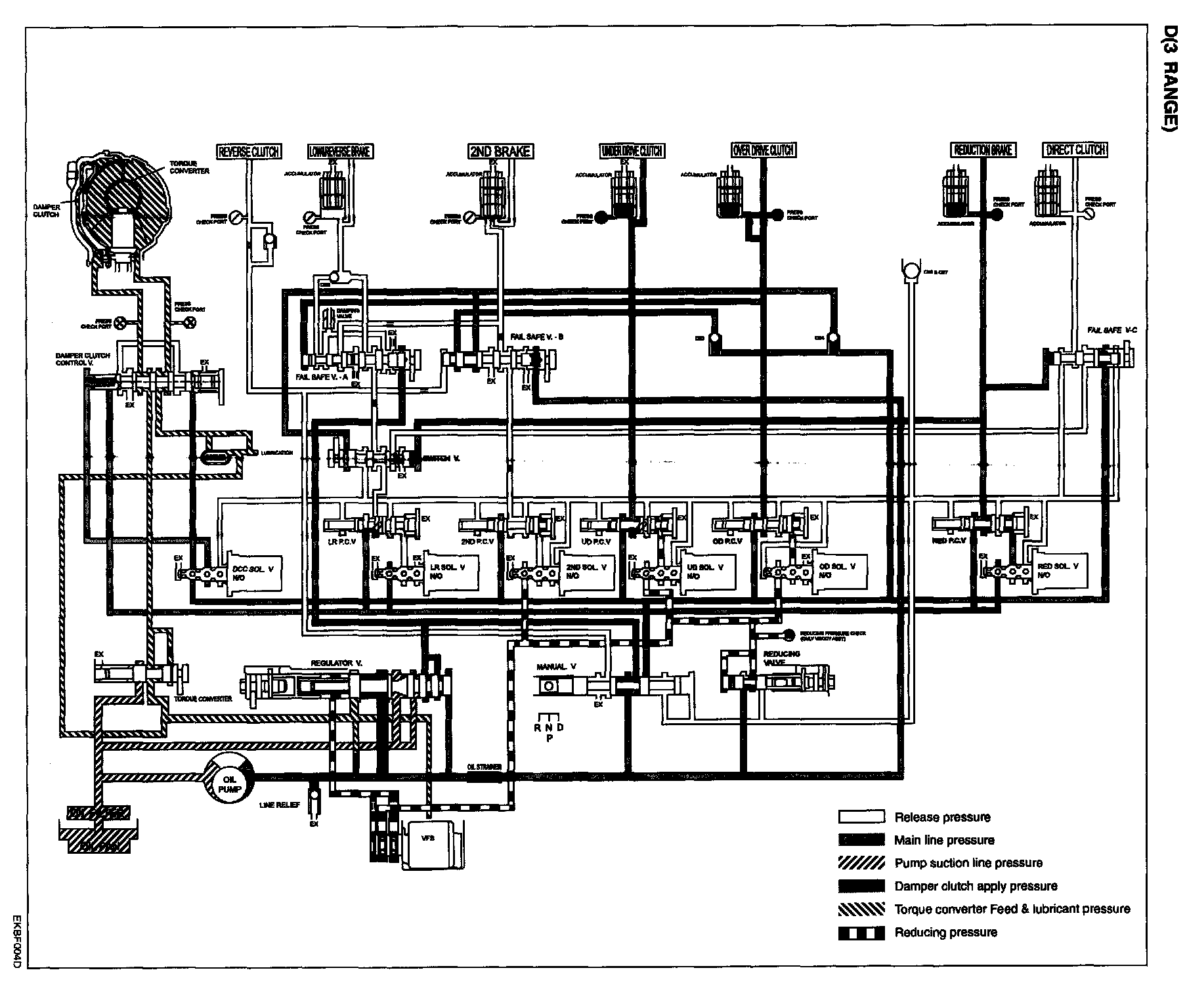

D(3 Range):




D(4 Range):

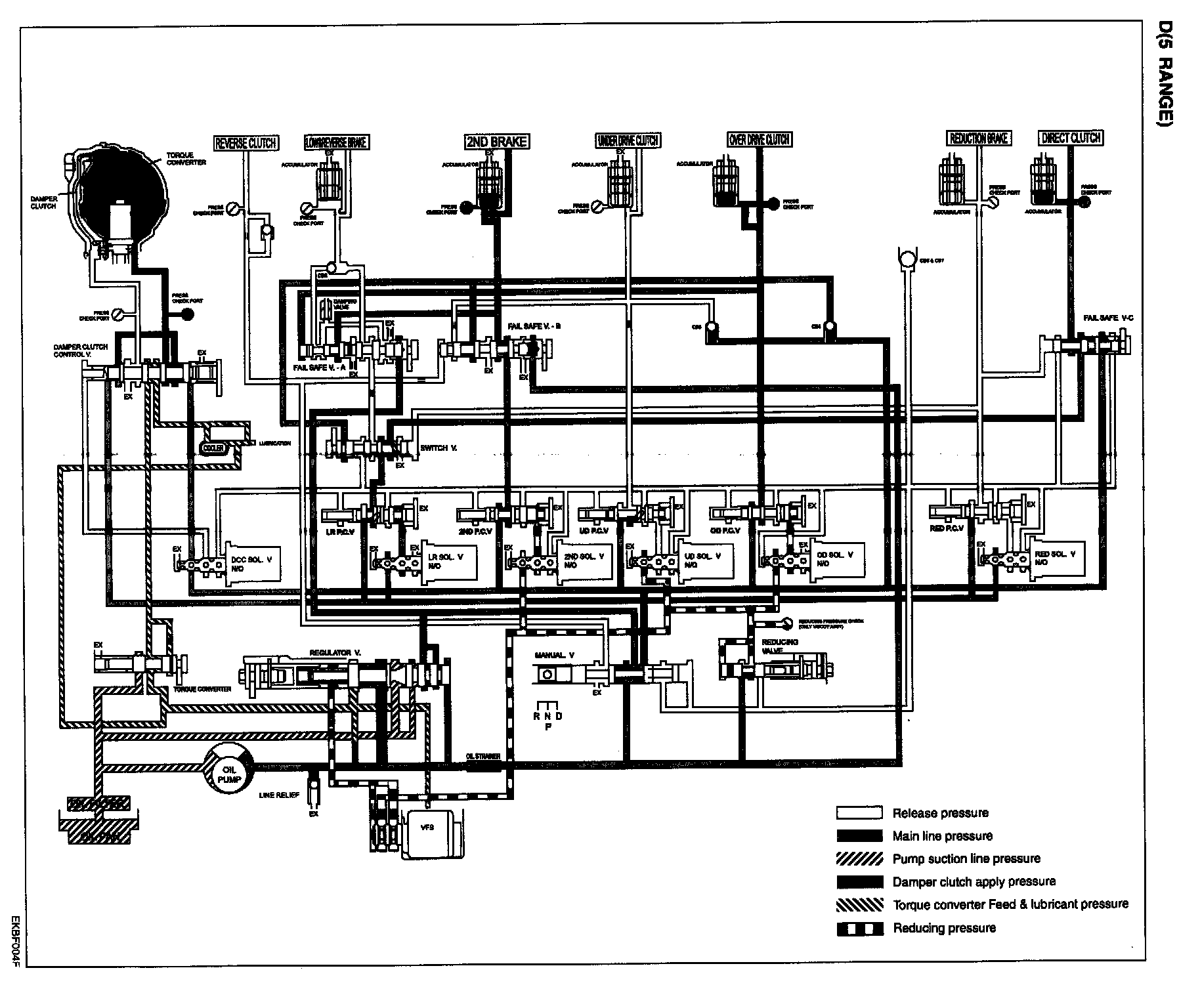

D(5 Range):

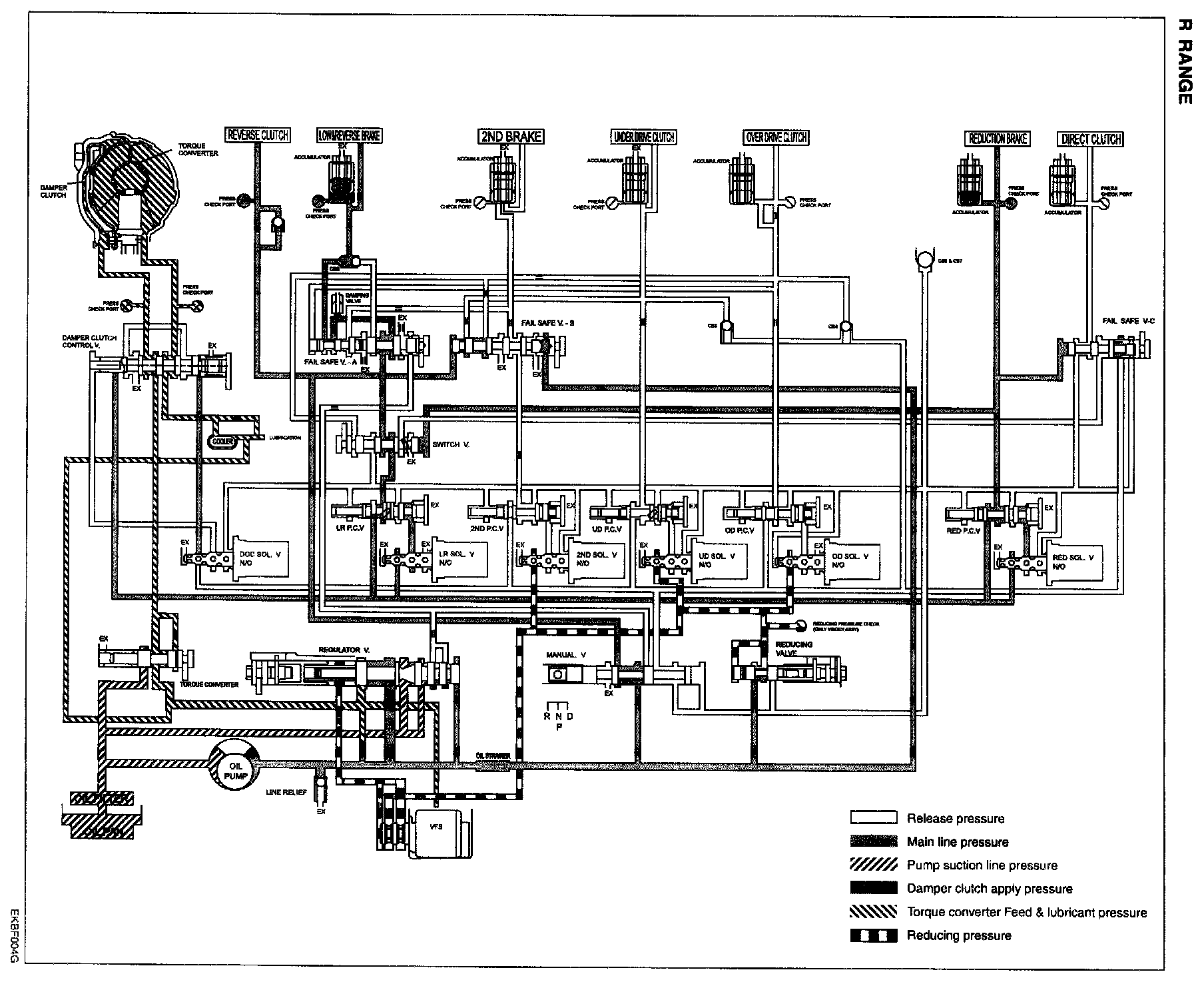

R Range:
