Removal

REAR STABILIZER BAR

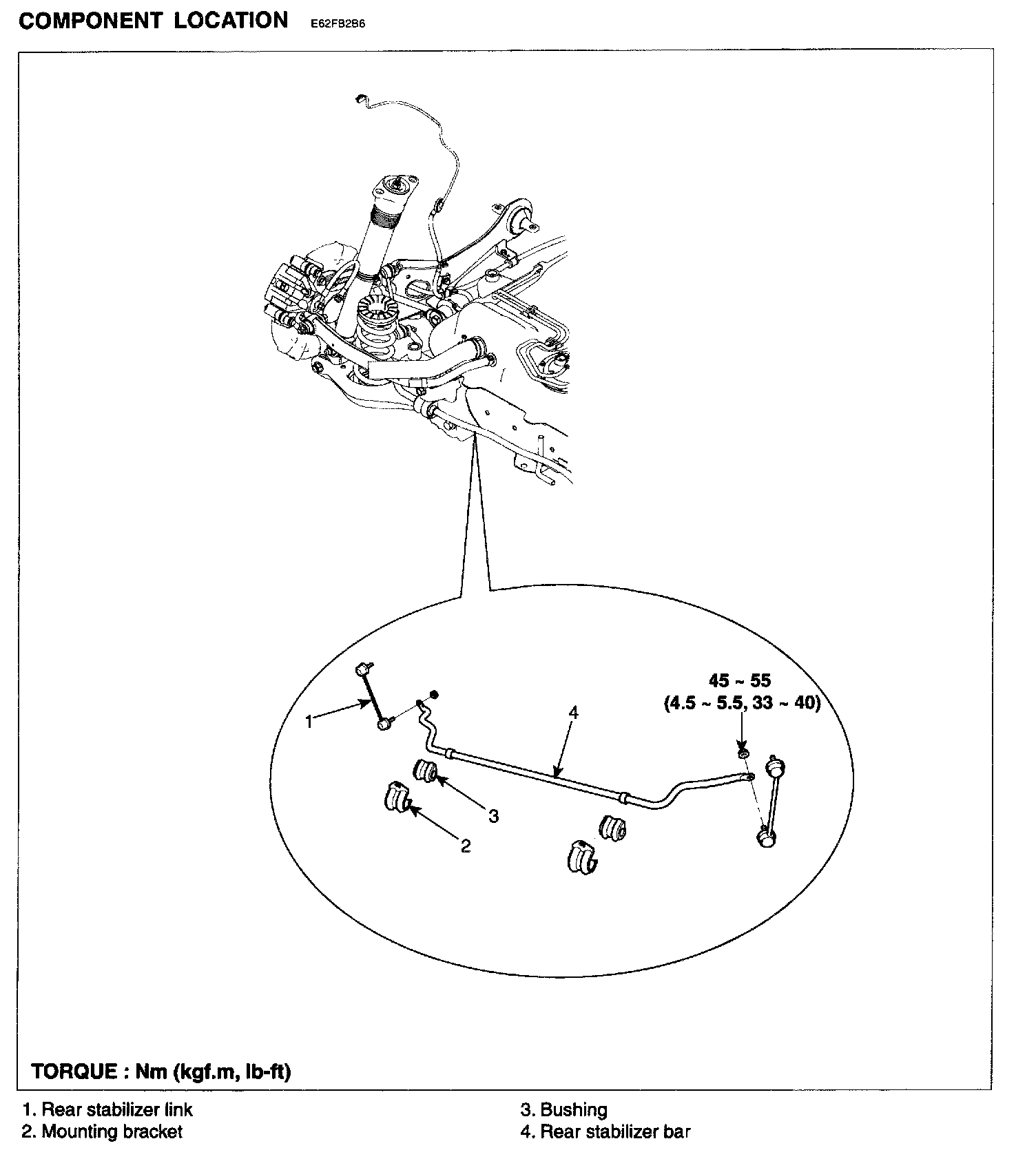

Component Location:

REMOVAL
1. Remove the rear wheel & tire.

CAUTION: Be careful not to damage the hub bolts when removing the rear wheel & tire.

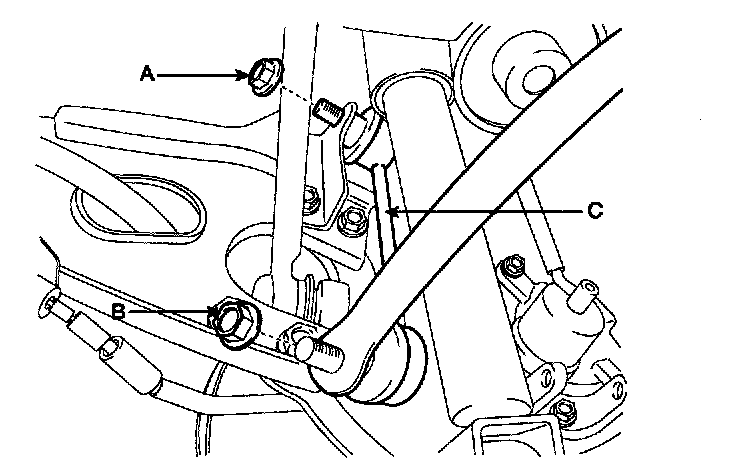

2. Remove the stabilizer link (C) by loosening the nuts (A,B).





3. Remove the rear stabilizer bar (B) from the cross member by loosening the bracket mounting bolts (A).

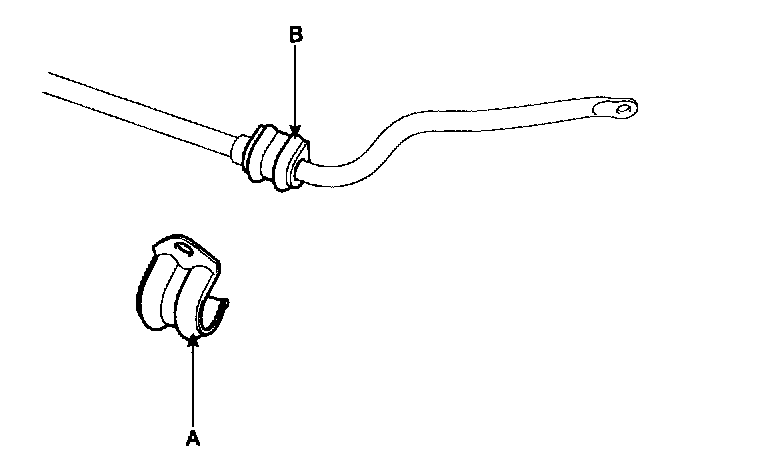

4. Remove the mounting bracket (A) and bushing (B) from the rear stabilizer bar.
