Rear Assist Arm

REAR ASSIST ARM

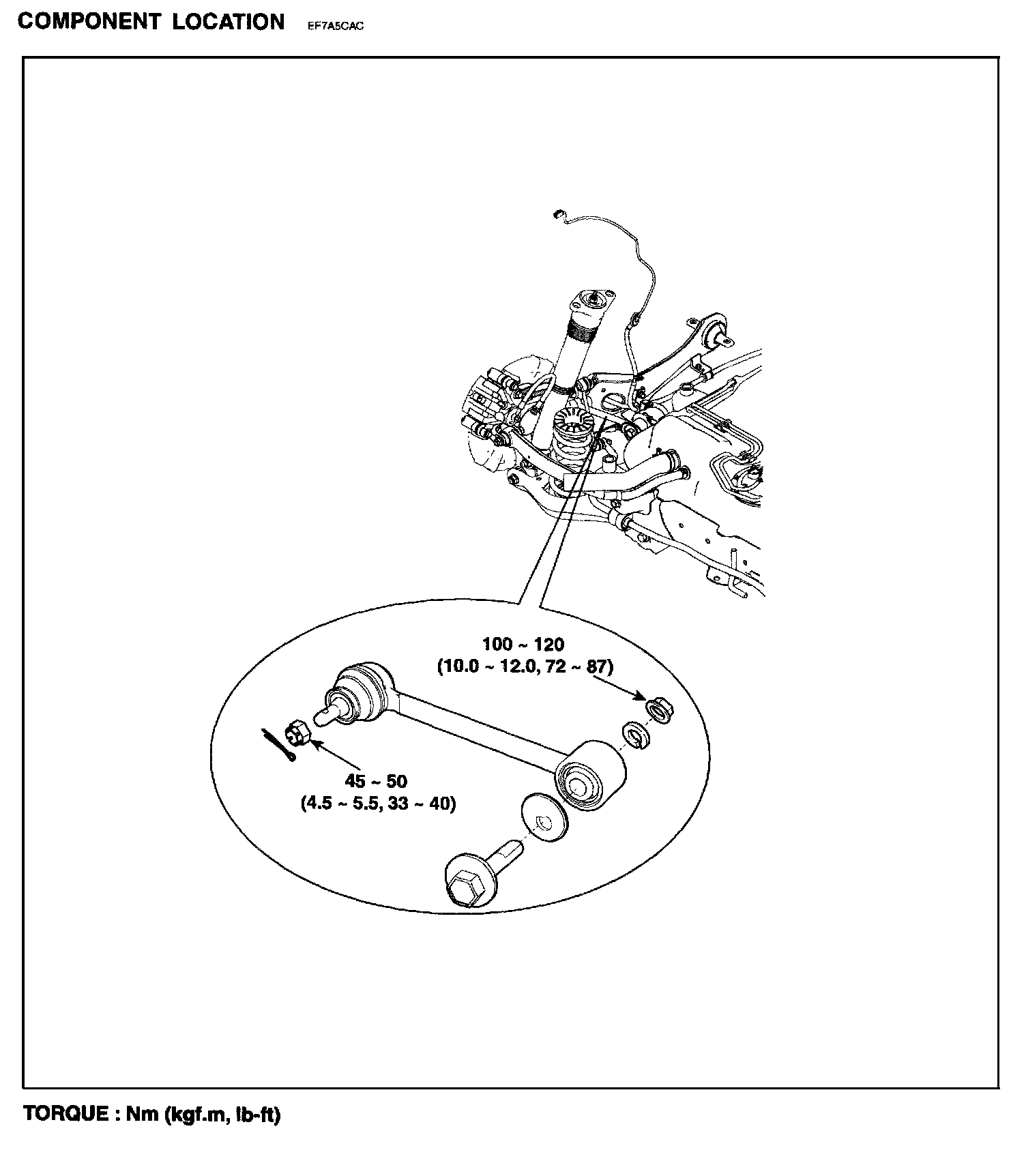

Component Location:

REMOVAL
1. Remove the rear wheel & tire.

CAUTION: Be careful not to damage the hub bolts when removing the wheel & tire.

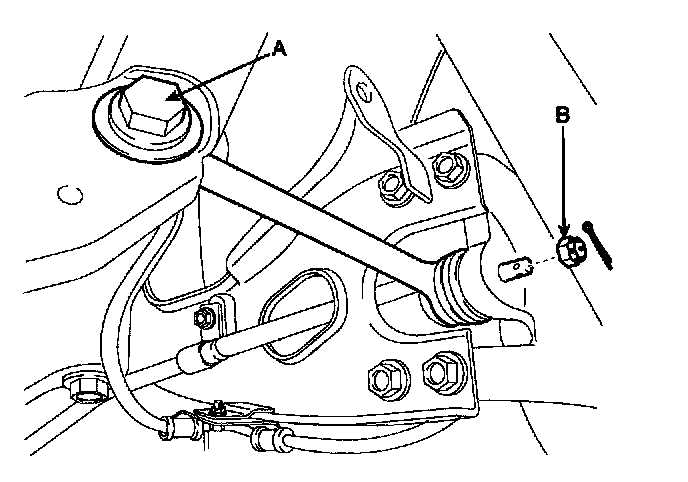

2. Remove the cam bolt (A), split pin, and castle nut (B).





3. Disconnect the ball joint of the rear assist arm (A) with the carrier assembly with the SST (09568-34000).
