Removal

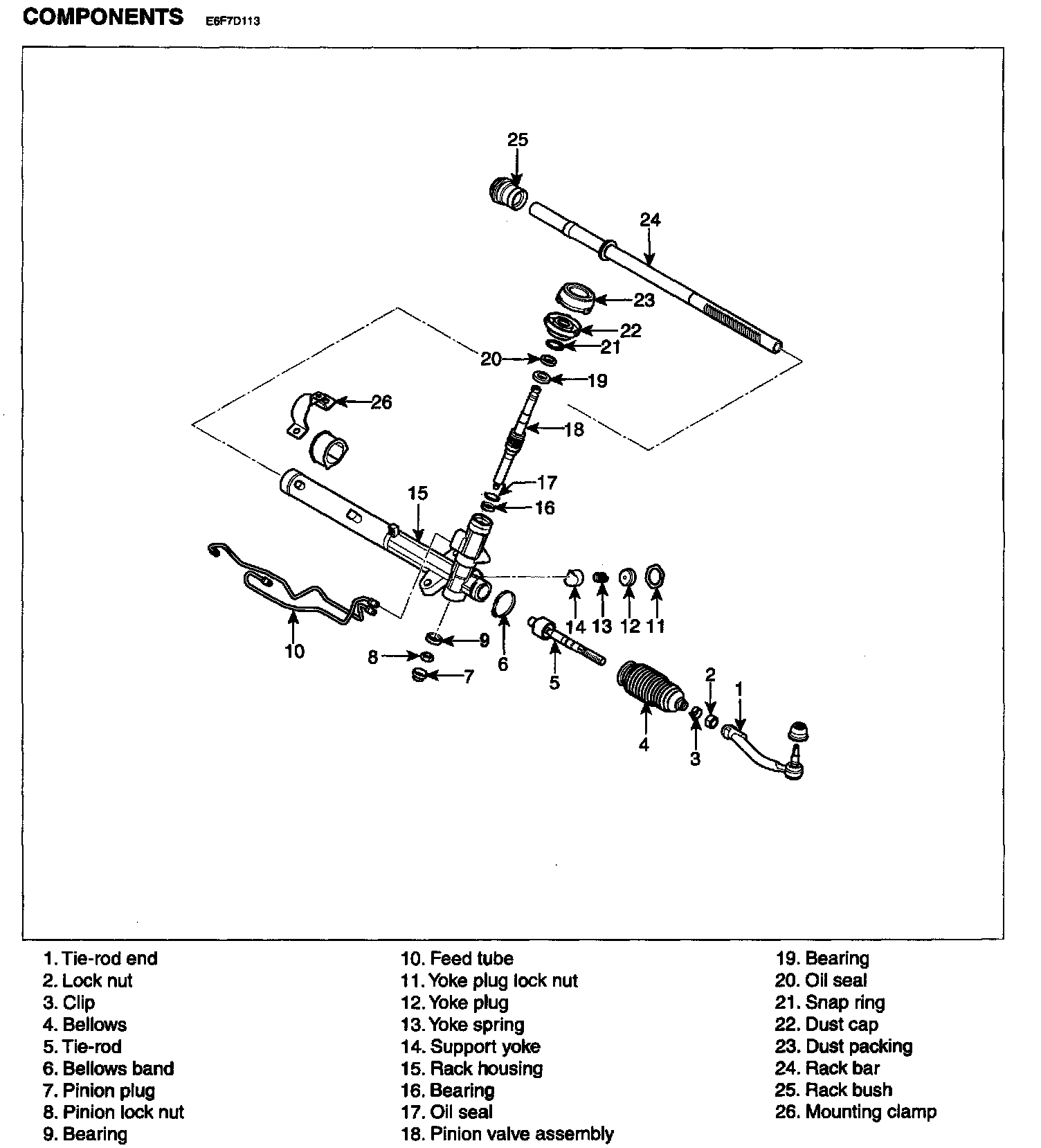

POWER STEERING GEAR BOX

REMOVAL
1. Remove the both front wheels.

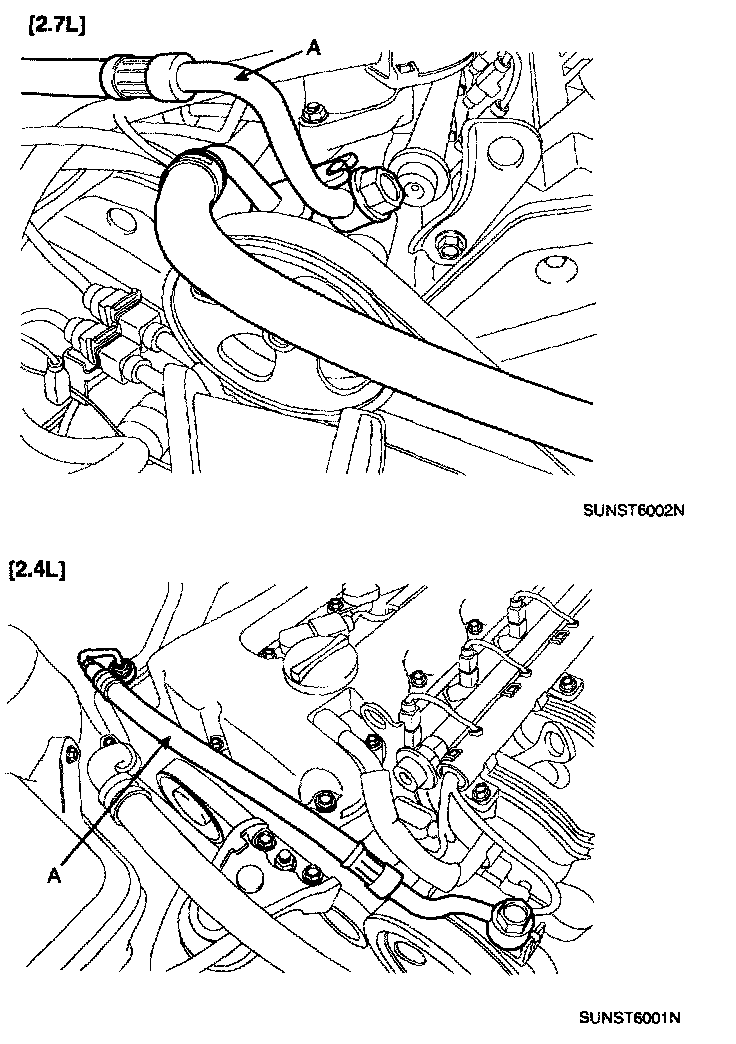

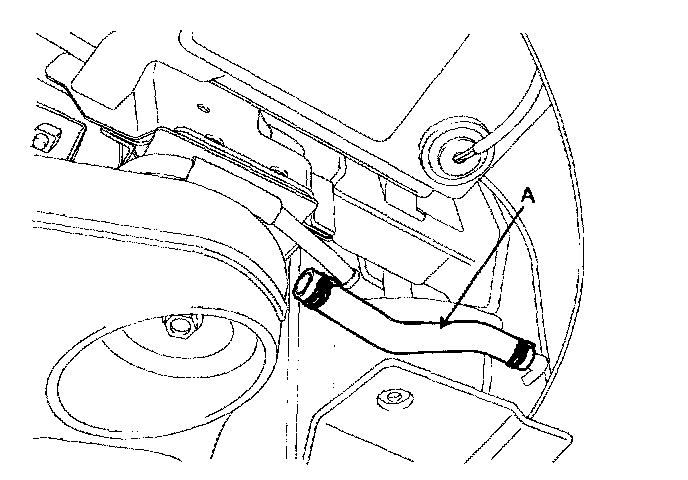

2. Drain the power steering fluid by disconnecting the return hose (A).

3. Disconnect the pressure tube (A) from the power steering pump by loosening the eye bolt.

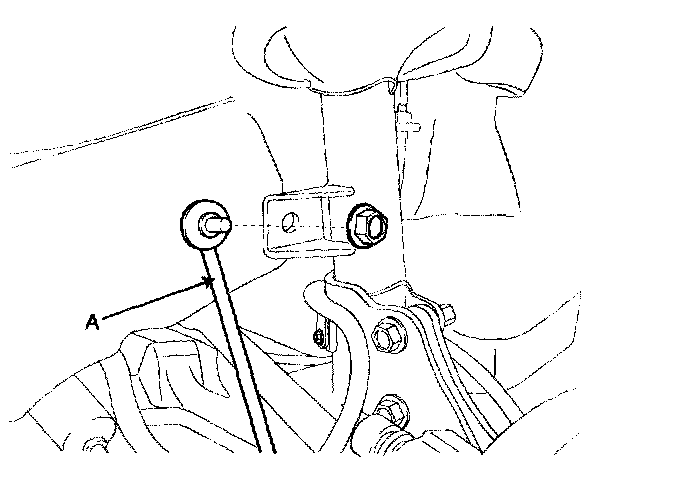

4. Disconnect the stabilizer link (A) with the strut assembly by loosening the nut.

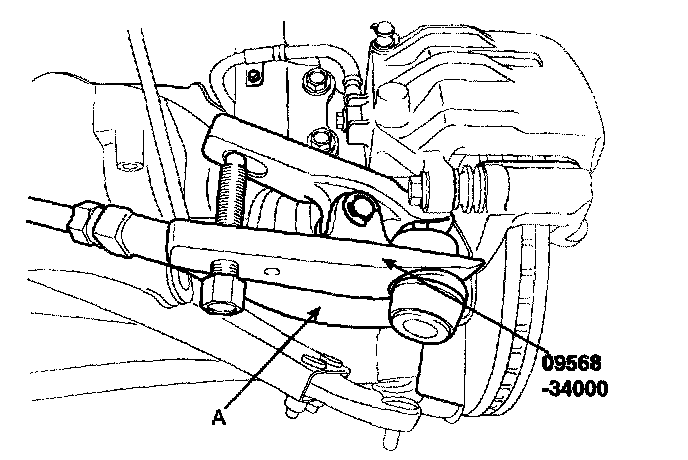

5. Remove the split pin and castle nut and then disconnect the tie-rod end (A) with the knuckle using a SST (09568-34000).

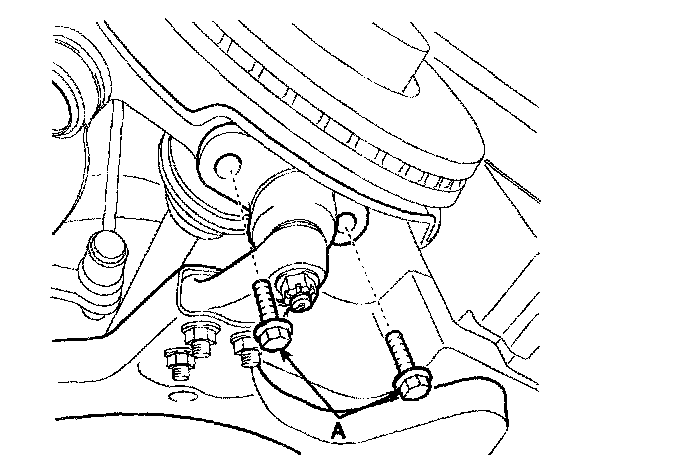

6. Separate the knuckle with the lower arm by loosening the mounting bolts (A).

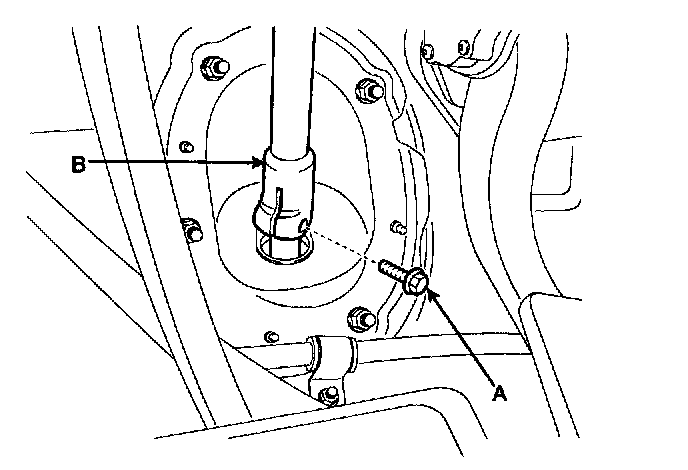

7. Loosen the bolt (A) and then disconnect the universal joint assembly (B) with the pinion of the steering gear.

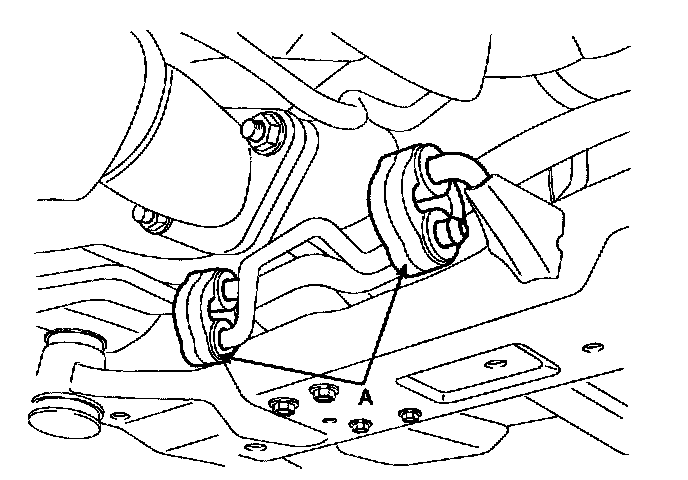

8. Remove the muffler rubber hanger (A).

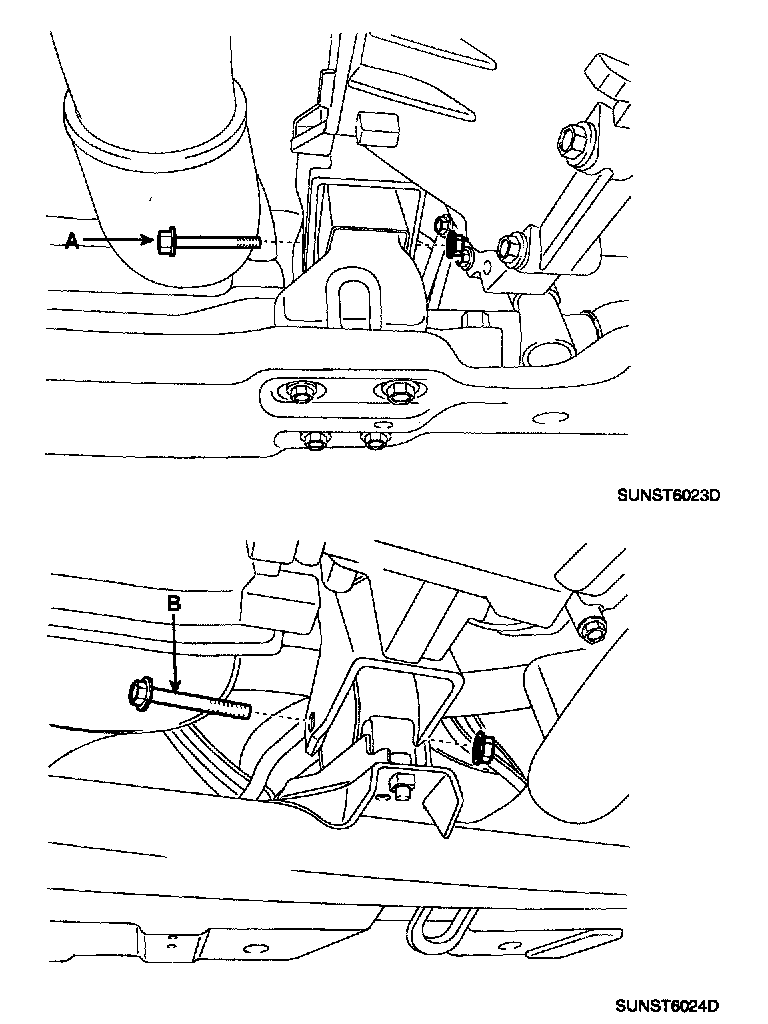

9. Remove the front and rear roll stopper through bolts & nuts (A, B).

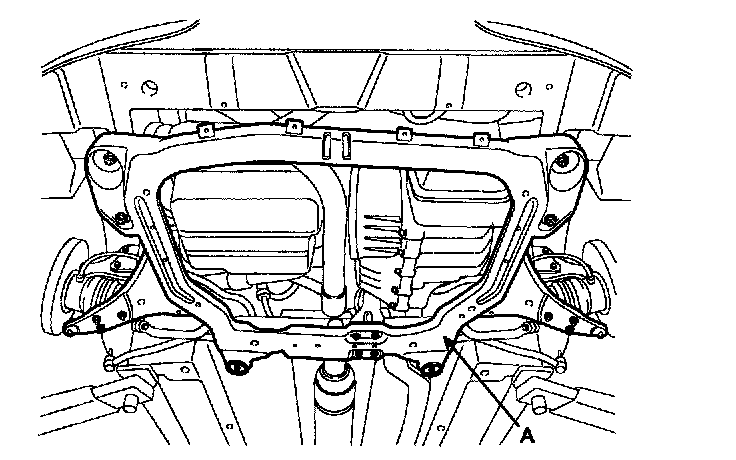

10. Remove the sub-frame (A) and stay by loosening mounting bolts.

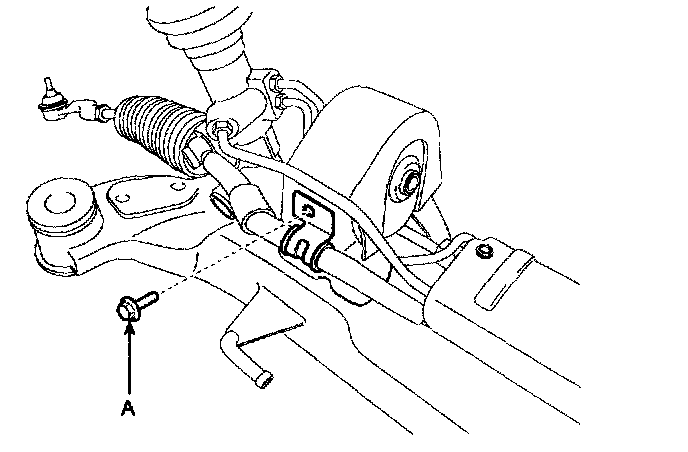

11. Loosen the return hose mounting bracket bolt (A).

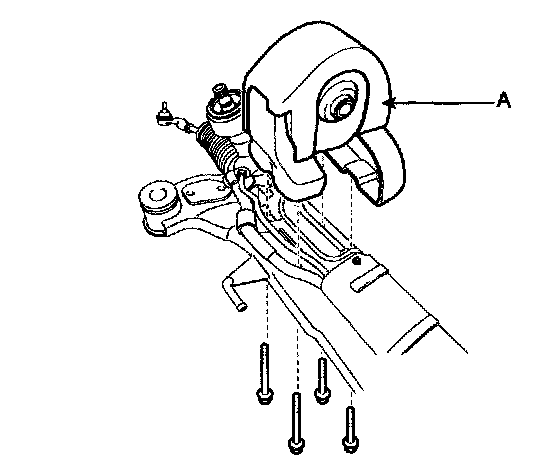

12. Remove the rear roll stopper (A) from the sub-frame by loosening the mounting bolts.

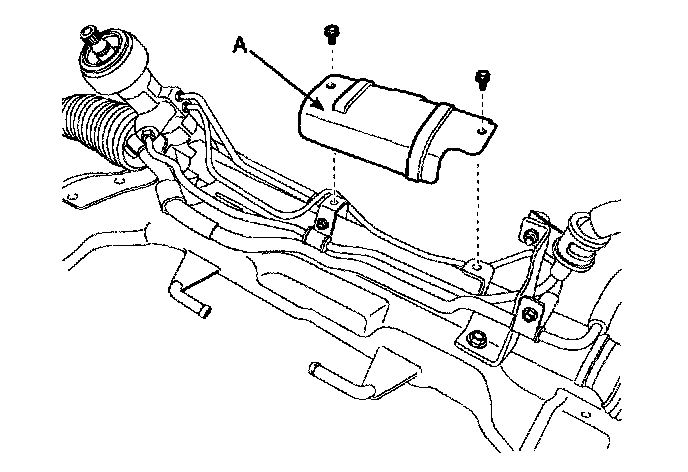

13. Remove the heat protector (A).

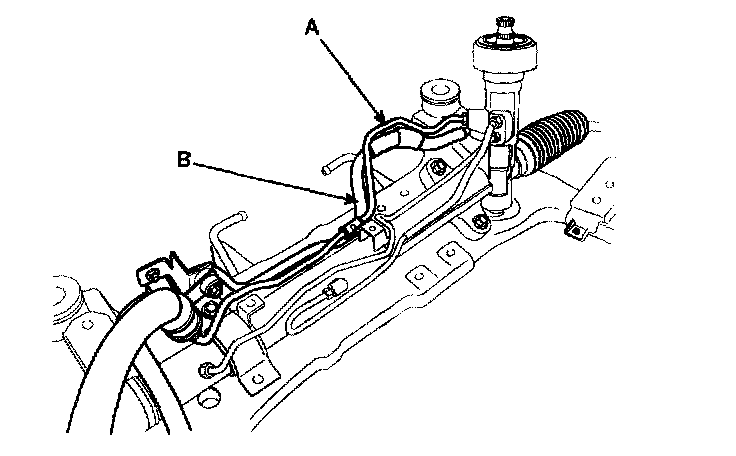

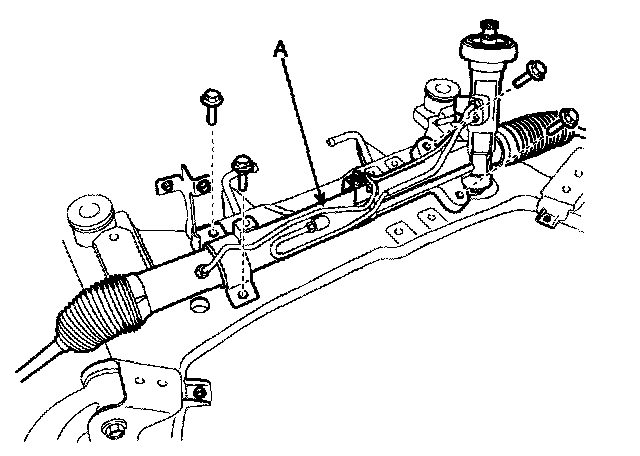

14. Remove the pressure (A) and return tube (B) from the steering gear box.

15. Remove the steering gear box from the sub-frame by loosening the mounting bolts.
