Steering Column Cover: Service and Repair

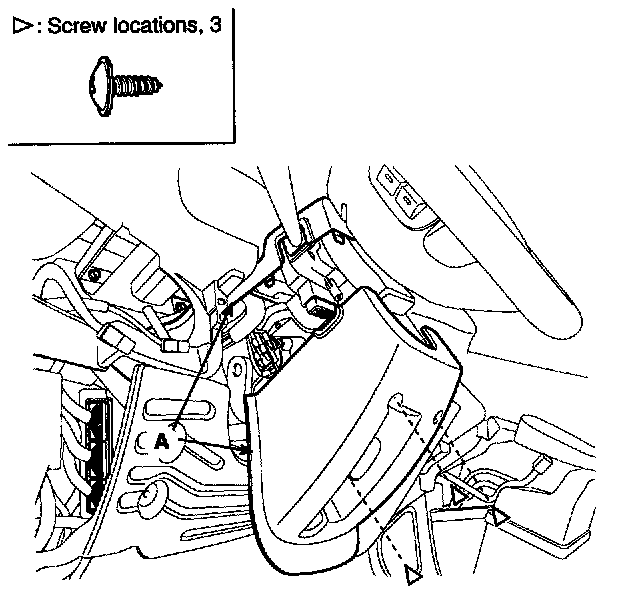

SHROUD REPLACEMENT

1. Loosen the screws.
2. Remove the shroud assembly (A).






3. Installation is the reverse of removal.
