Home >> Kia >> 2007 >> Rondo V6-2.7L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Starting and Charging

Starting and Charging

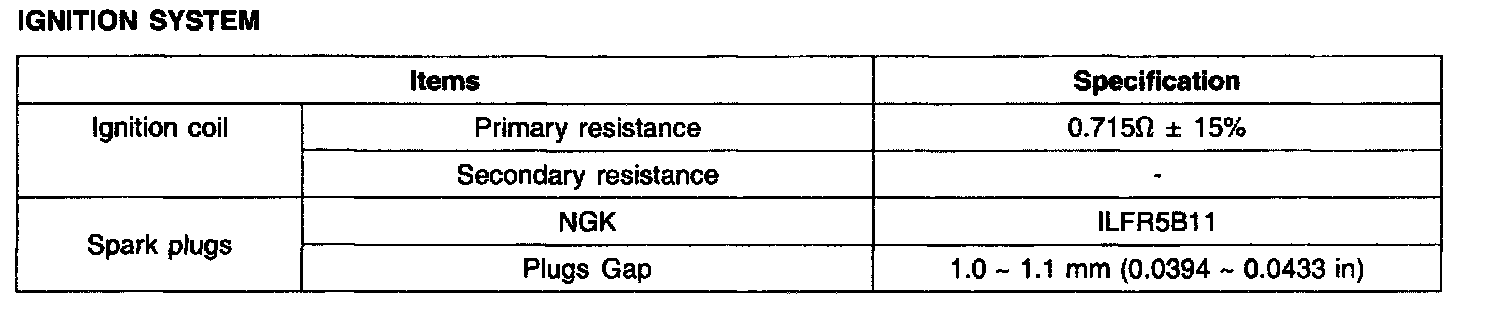

Ignition System - Specification:



Starting System - Specification:

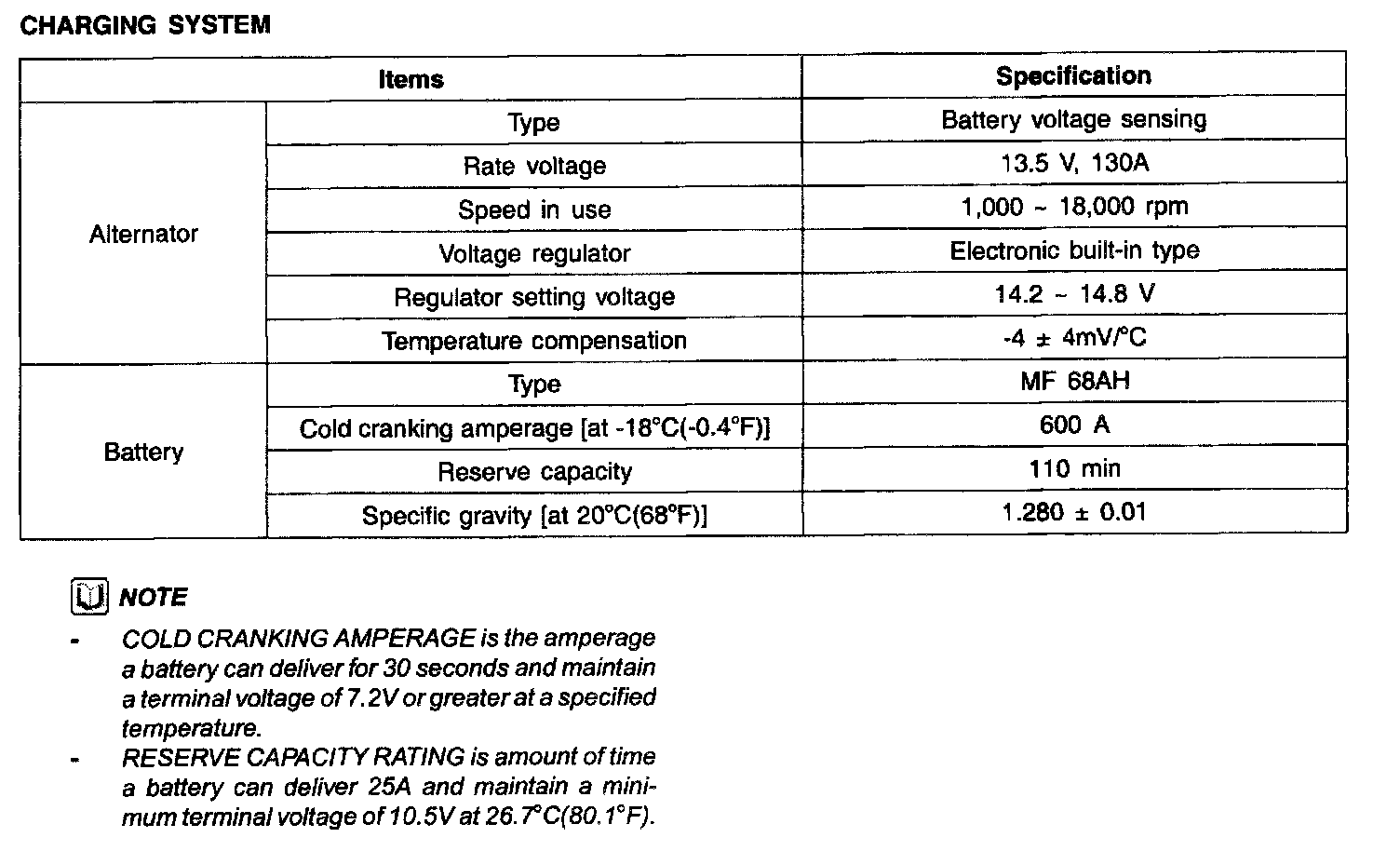

Charging System - Specification:
