Spark Plug: Service and Repair
REPLACEMENTSPARK PLUG

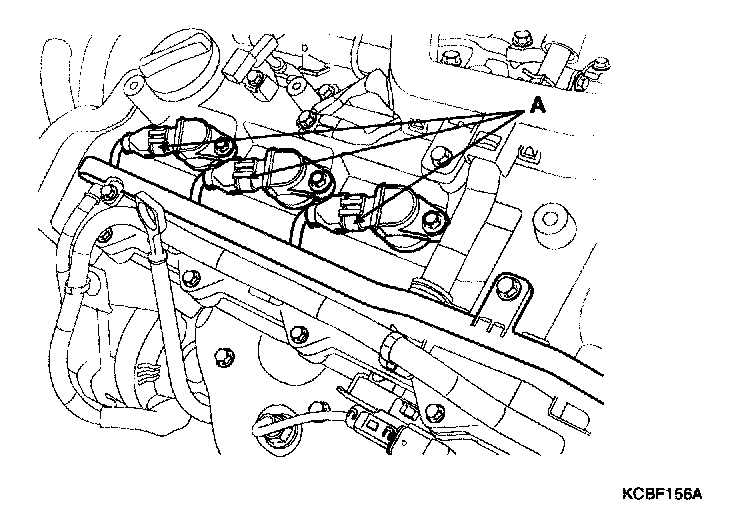

1. Remove the ignition coil connector (A).
2. Remove the ignition coil.
3. Using a spark plug socket, remove the spark plug.
CAUTION: Be careful that no contaminates enter through the spark plug holes.
4. When replacing the spark plug, always use the long reach type spark plug.
Do not use a short reach type.
1. Color Marking (Tip).
- [2.7 L]
Unleaded : Yellow Marking
Leaded : Green Marking
- [Others]
Marking Color is different or does not exist
2. Length (Tip-Tip / PT Length).
- 2.7 L : 83.2 mm / 26.5 mm
- [Others]
The length is different from the specification above.
3. Part ID.
- [2.7 L]
Unleaded : ILFRSB11
Leaded : LFR5A
INSPECT SPARK PLUG
1. Inspect the electrodes (A) and ceramic insulator (B).
2. Check the electrode gap (A).
Standard : 1.0 - 1.1 mm (0.0394 - 0.0433 in.)
