Overhead Console Lamp

OVERHEAD CONSOLE LAMP




INSPECTION

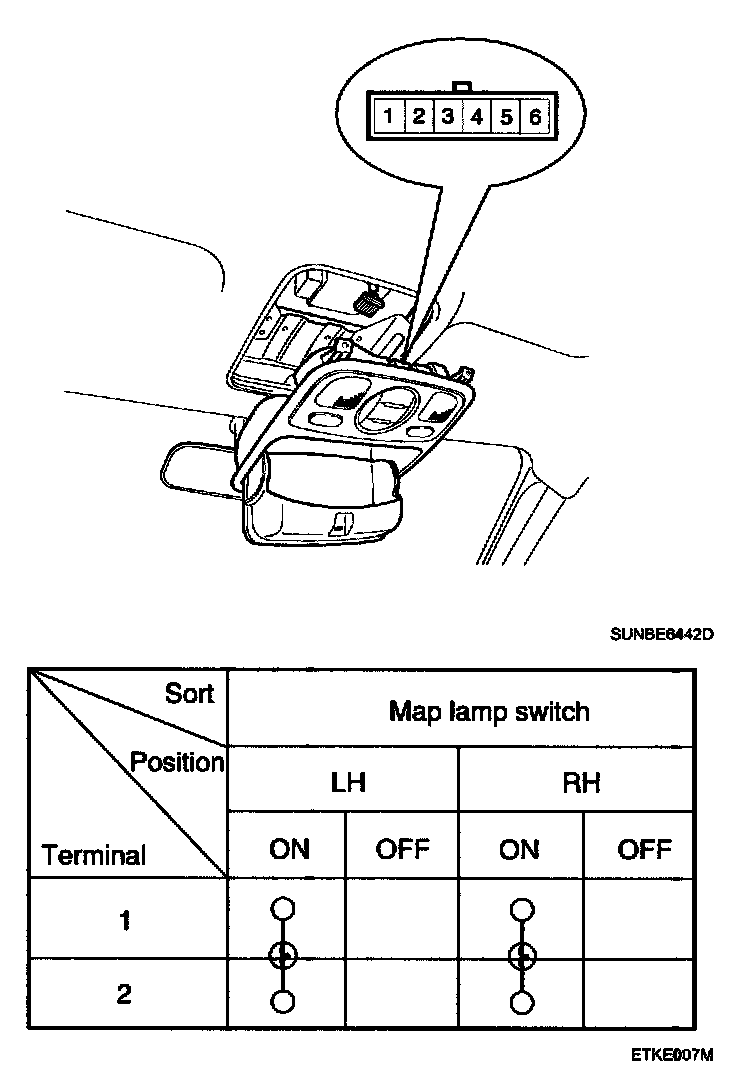

Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.
