Room Lamp

ROOM LAMP

REMOVAL

ROOM LAMP
1. Disconnect the negative (-) battery terminal.
2. Detach the lamp lens from the room lamp with a flat-tip screwdriver then remove the bulb.

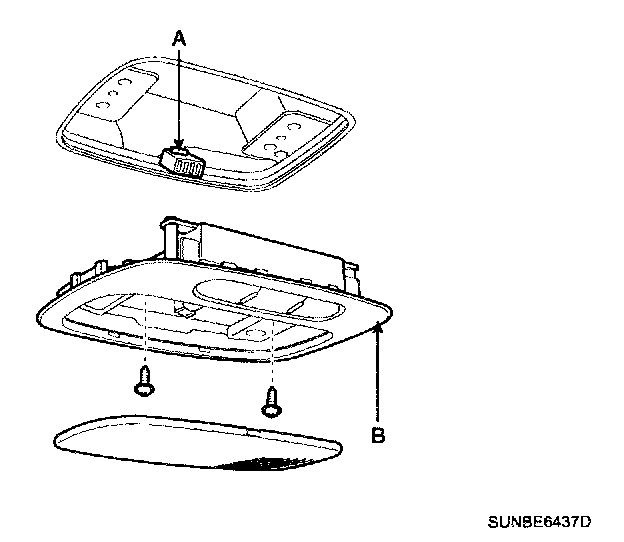

3. Loosen the fixing screw (2EA) and disconnect the 3P connector (A). And then remove the room lamp assembly (B).

TRUNK ROOM LAMP
1. Disconnect the negative (-) battery terminal.
2. Detach the lamp lens from the trunk room lamp with a flat-tip screwdriver then remove the bulb.

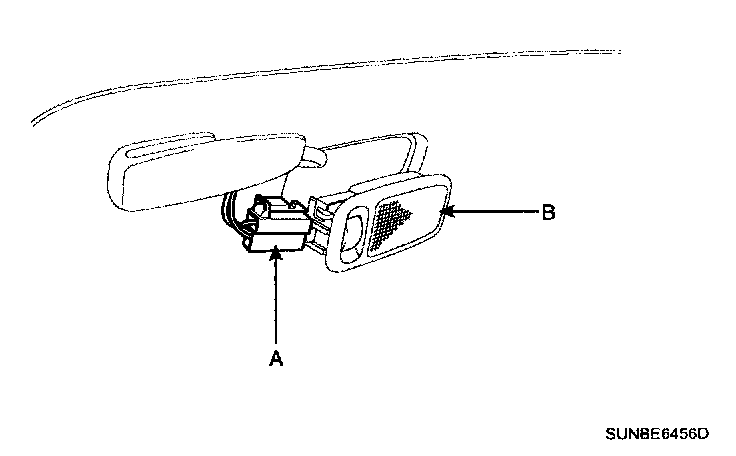

3. Loosen the fixing screw (2EA) and disconnect the 2P connector (A). And then remove the room lamp assembly (B).

INSTALLATION

ROOM LAMP
1. Install the room lamp assembly after connecting the lamp connector.
2. Install the lamp lens after assembling the bulb.

TRUNK ROOM LAMP
1. Install the trunk room lamp assembly after connecting the lamp connector.
2. Install the lamp lens after assembling the bulb.
