Inside Rear View Mirror Replacement

INSIDE REAR VIEW MIRROR REPLACEMENT

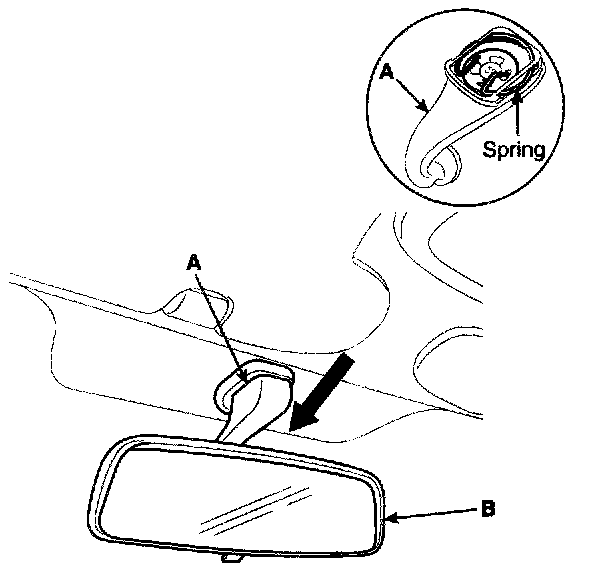

1. Push the inside rear view mirror base (A) down to wards the inside rear view mirror assembly (B).






2. Installation is the reverse of removal.
