Cowl Side Trim Replacement

COWL SIDE TRIM REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the front door scuff trim.

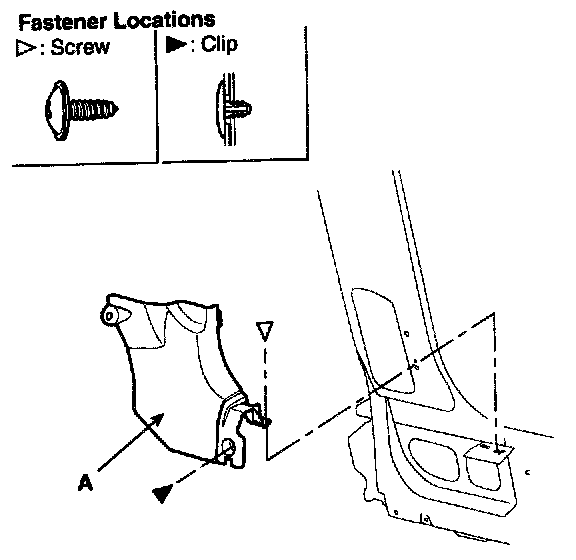

2. Remove the cowl side trim (A).






3. Installation is the reverse of removal.

NOTE: Replace any damage clips.
