Overhead Console Lamp Replacement

OVERHEAD CONSOLE LAMP REPLACEMENT

NOTE:
- When prying with a tat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.

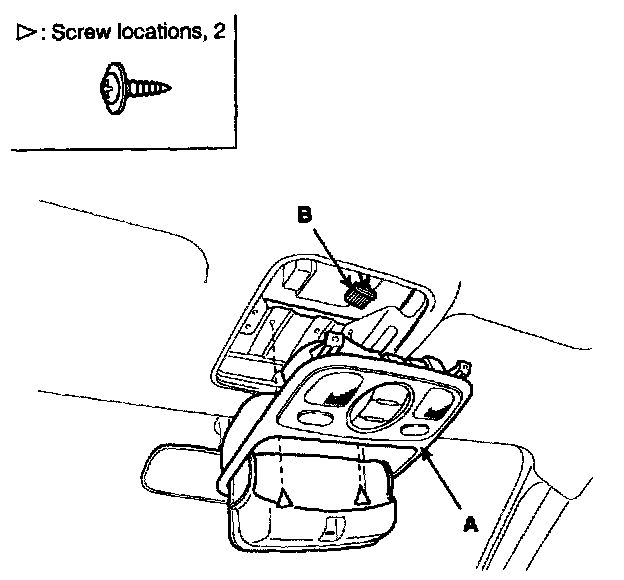

1. Remove the overhead console
- Remove the screw.
- Pull out the root console (A).
- Disconnect the connector (B).






2. Installation is the reverse of removal.
