Front Door Weatherstrip: Service and Repair

DOOR WEATHERSTRIP REPLACEMENT

1. Loosen the checker mounting bolts.

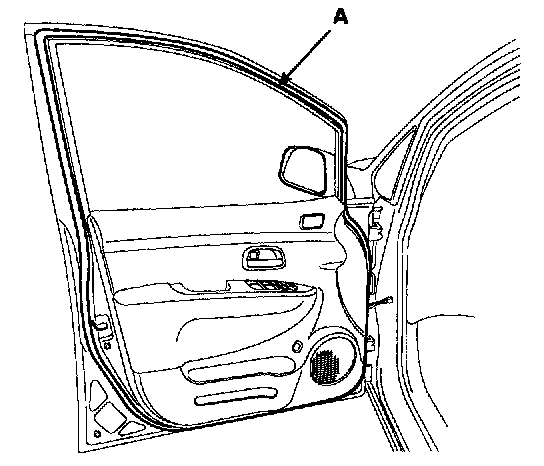

2. Detach the clips, then remove the weatherstrip(A).






3. Installation is the reverse of removal.
