Front Wiper Motor

FRONT WIPER MOTOR

REMOVAL

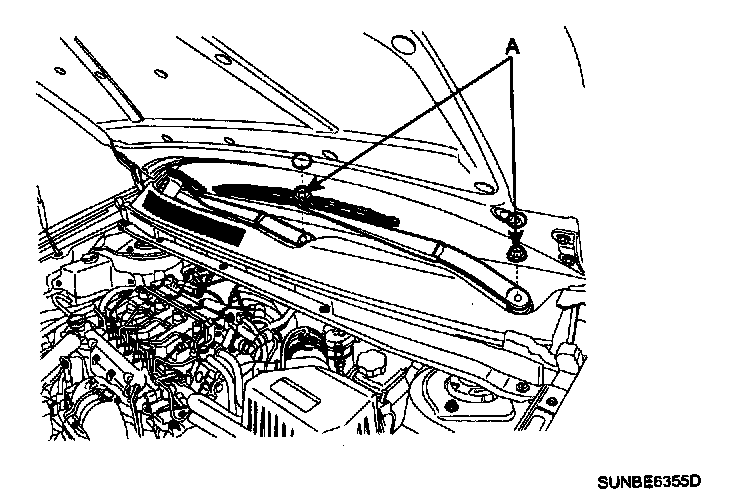

1. Remove the windshield wiper arm and blade after removing a nut (A).

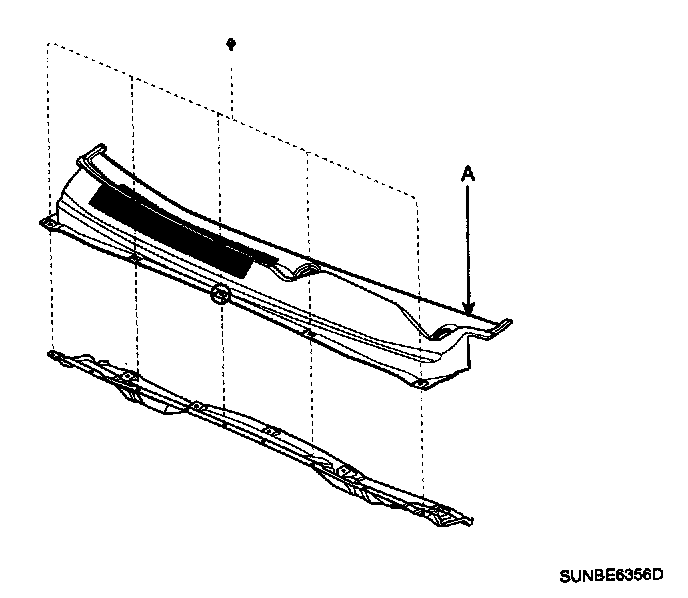

2. Remove the weather strip and the cowl top cover (A) after removing 5 rivets.

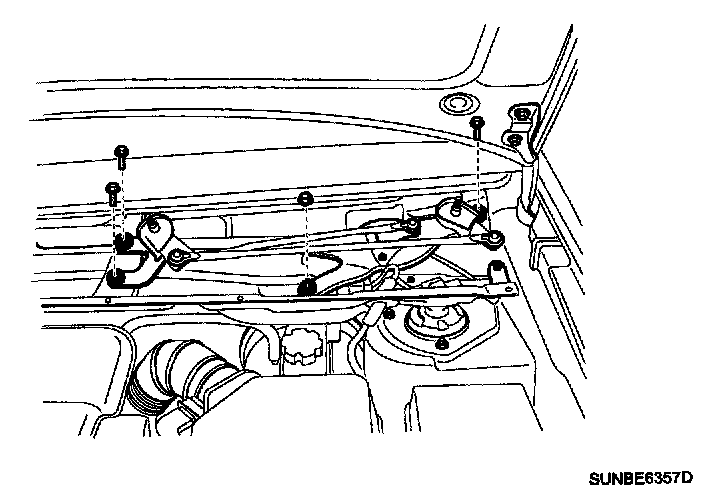

3. Remove the windshield wiper motor and linkage assembly after removing 4 bolts. Disconnect the wiper motor connector from the wiper motor & linkage assembly.

INSTALLATION
1. Install the wiper motor and linkage assembly and then connect the wiper motor connector.

TORQUE : 7 - 11 Nm (0.7 - 1.1, kgf.m, 5.0 - 7.9 lbf.ft)

2. Install the cowl top cover.
3. Install the windshield wiper arm and blade.

TORQUE : 28 - 33 Nm (2.8 - 3.3 kgf.m, 20 - 23.8 lbf.ft)

INSPECTION

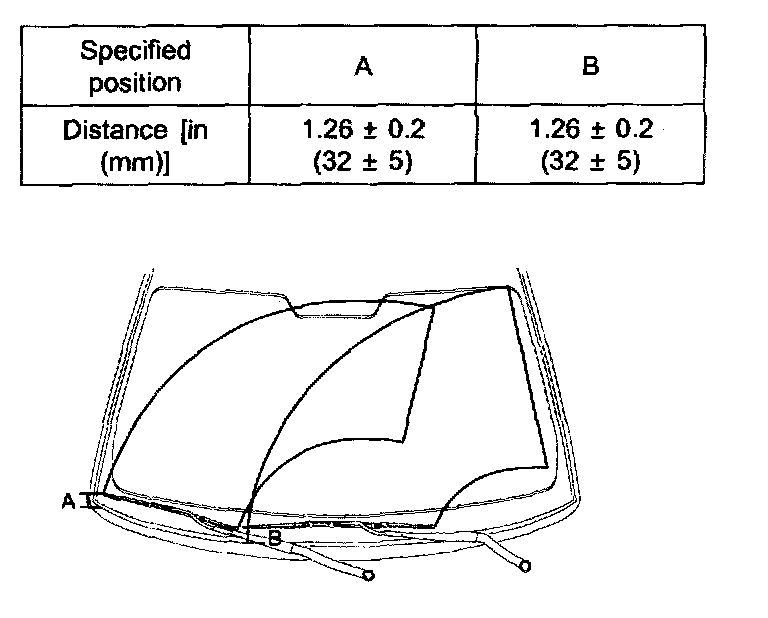

1. Install the wiper arm and blade to the specified position.

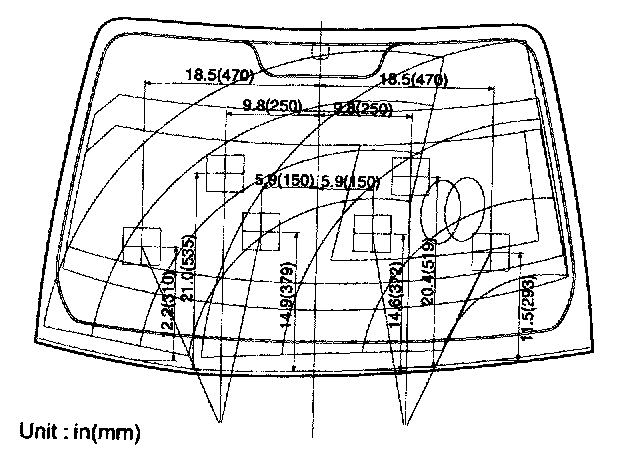

2. Set the washer nozzle on the specified spray position.
