Symptom Related Diagnostic Procedures

INSPECTION CHART FOR TROUBLE SYMPTOMS

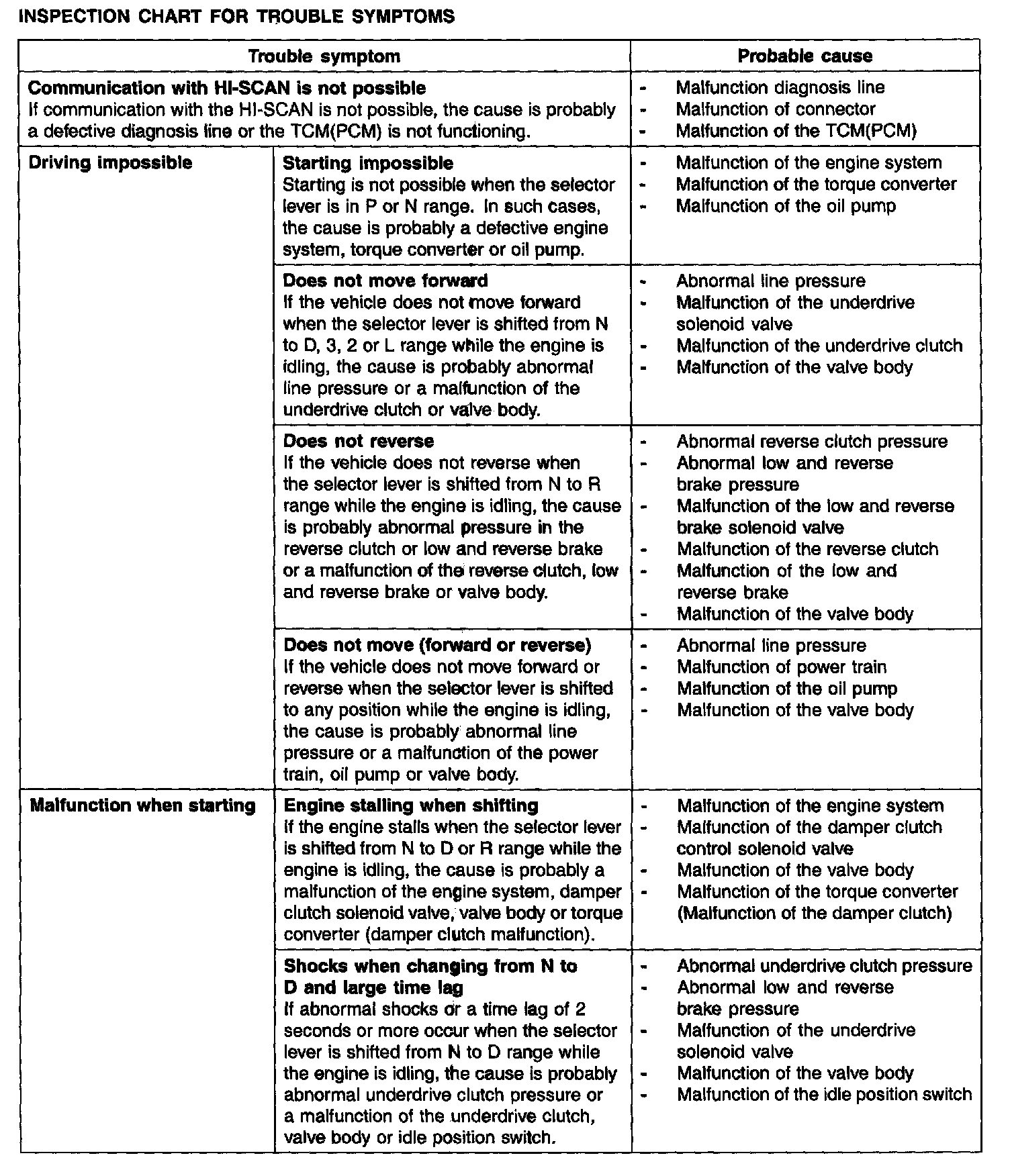

Inspection Chart For Trouble Symptoms (Part 1):

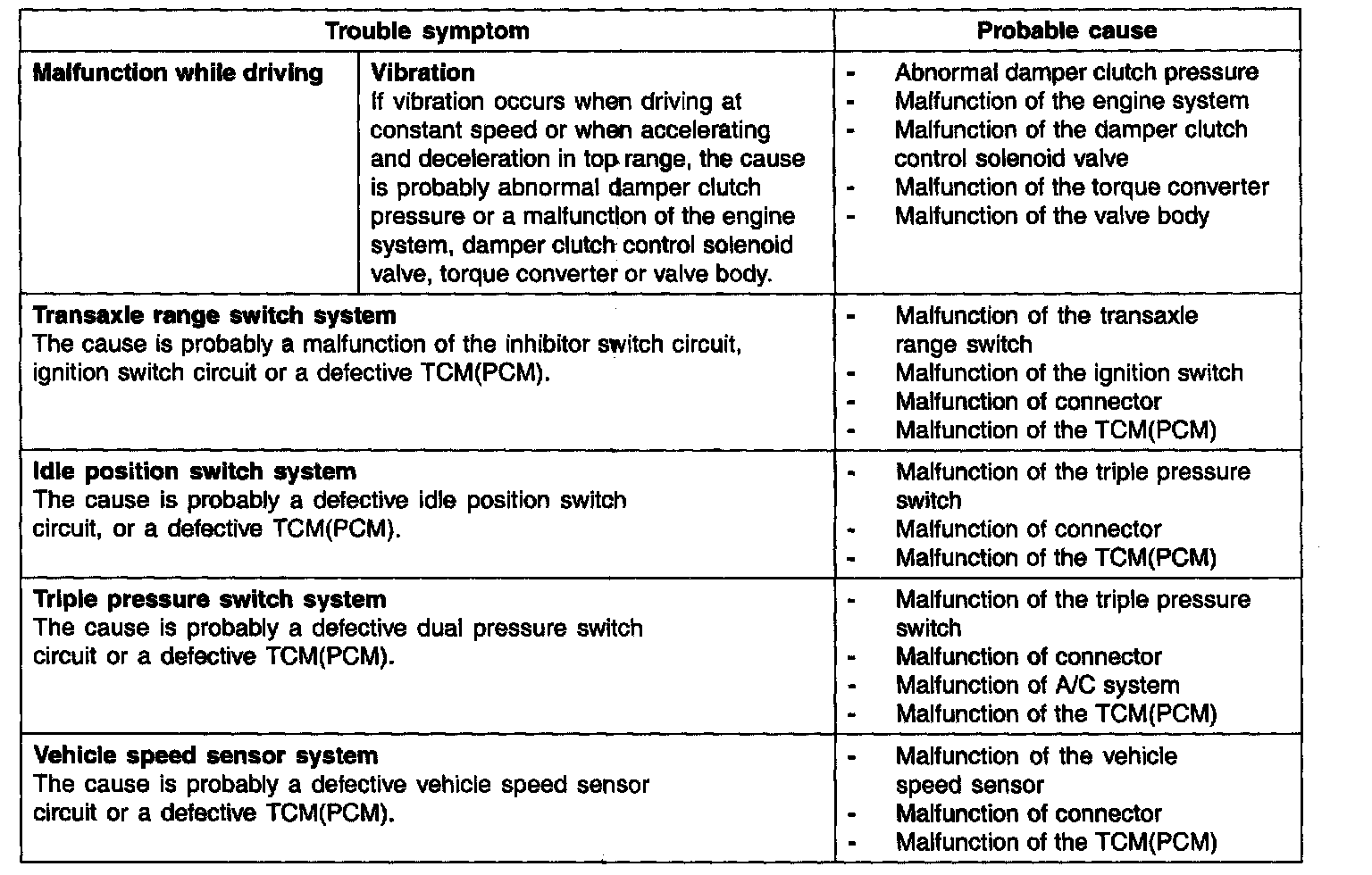

Inspection Chart For Trouble Symptoms (Part 2):




Inspection Chart For Trouble Symptoms (Part 3):
