Removal

TRAILING ARM

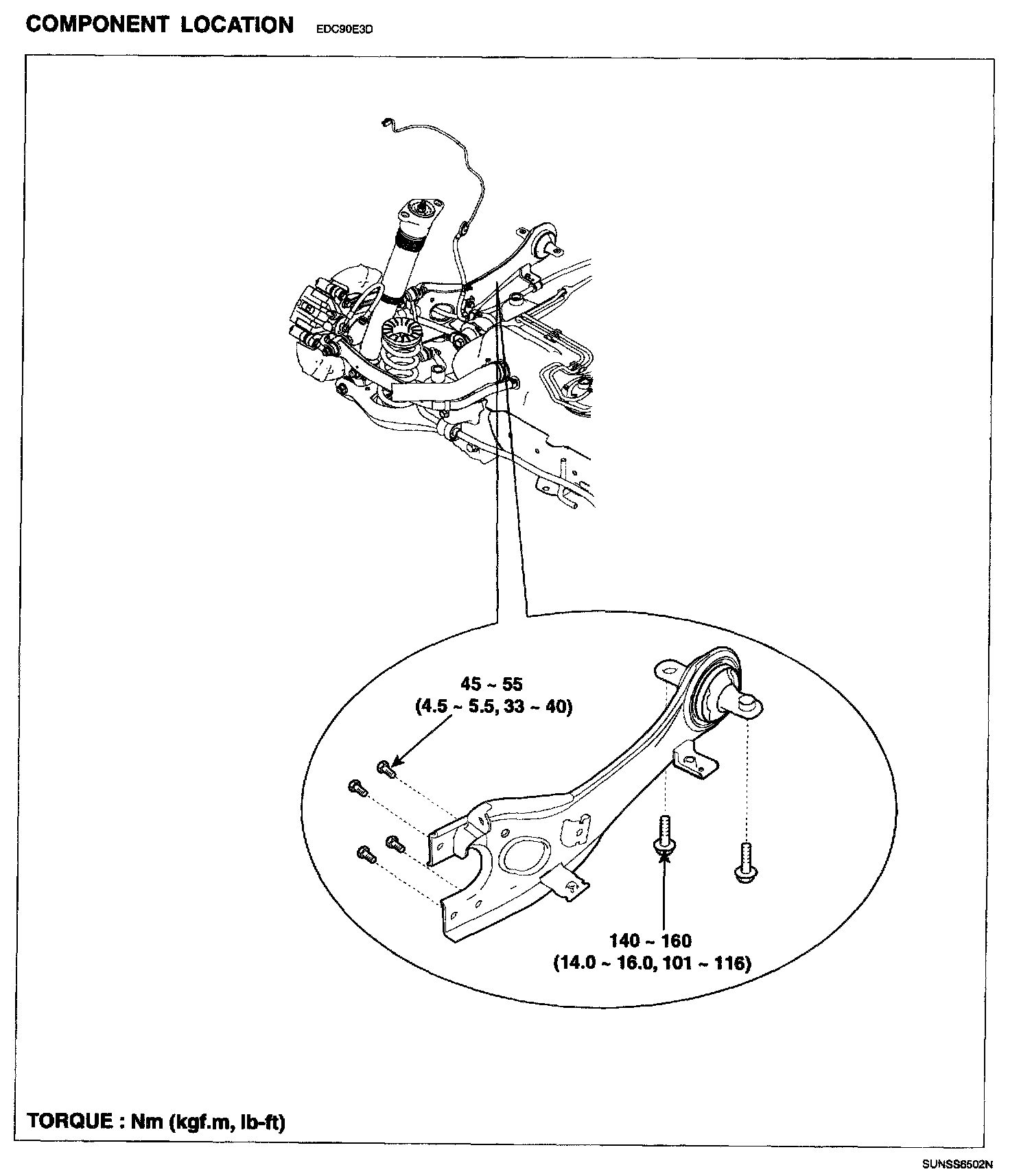

Component Location:

REMOVAL
1. Remove the rear wheel & tire.

CAUTION: Be careful not to damage the hub bolts when removing the rear wheel & tire.

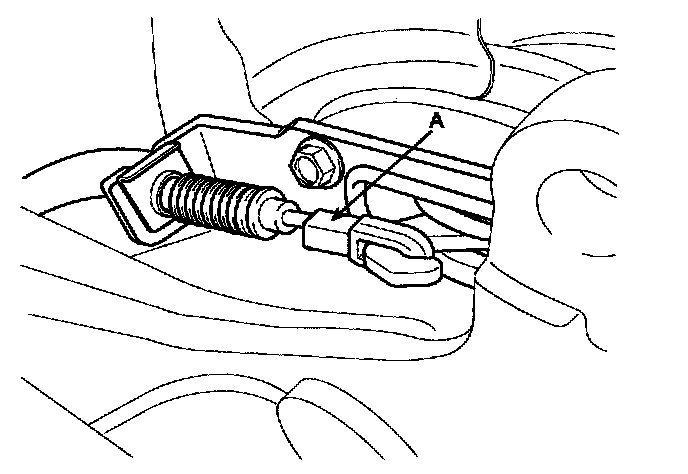

2. Disconnect the parking brake cable (A) with the rear brake assembly.

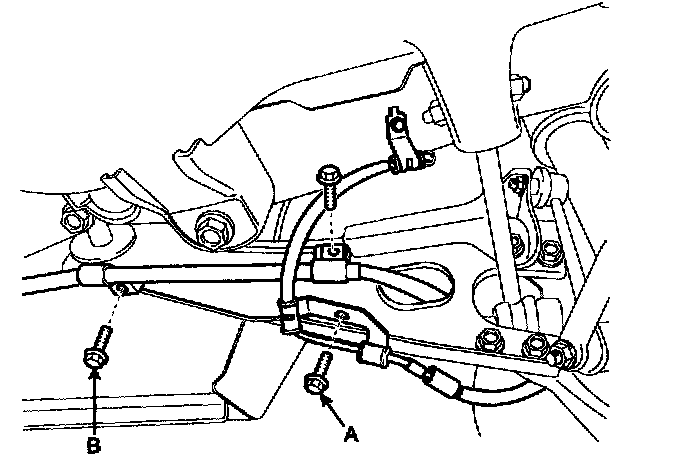

3. Remove the wheel speed sensor and parking brake cable bracket bolts (A, B).

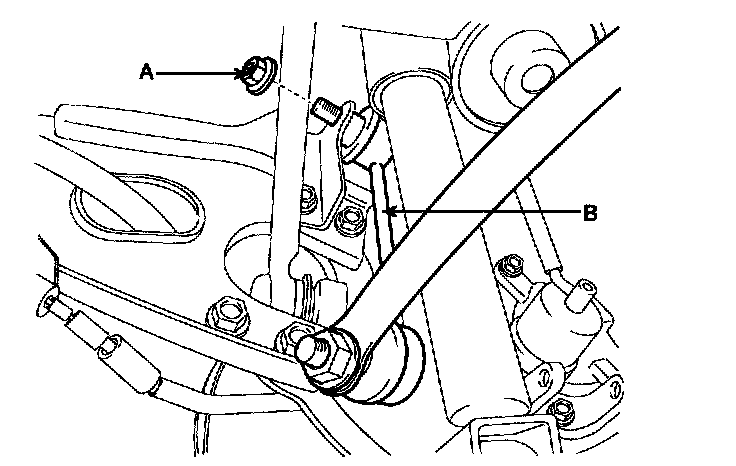

4. Disconnect the rear stabilizer link (B) with the trailing arm by loosening the nut (A).

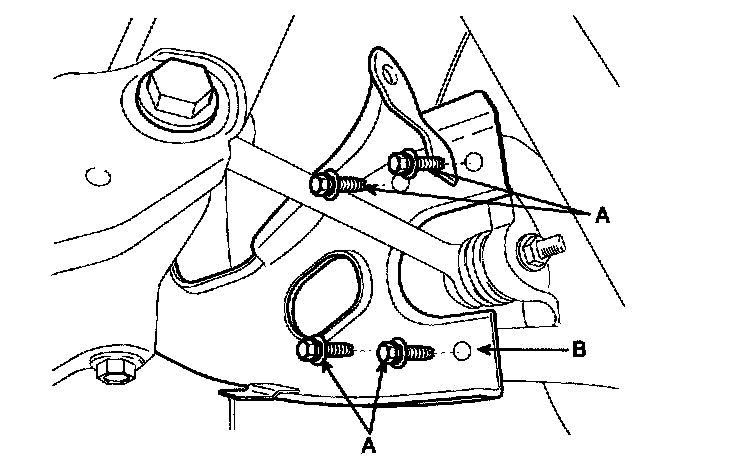

5. Disconnect the trailing arm (B) with the carrier assembly by loosening the mounting bolts (A).





6. Remove the rear trailing arm (A) by loosening the mounting bolt (B).
