Installation

REAR STABILIZER BAR

INSTALLATION

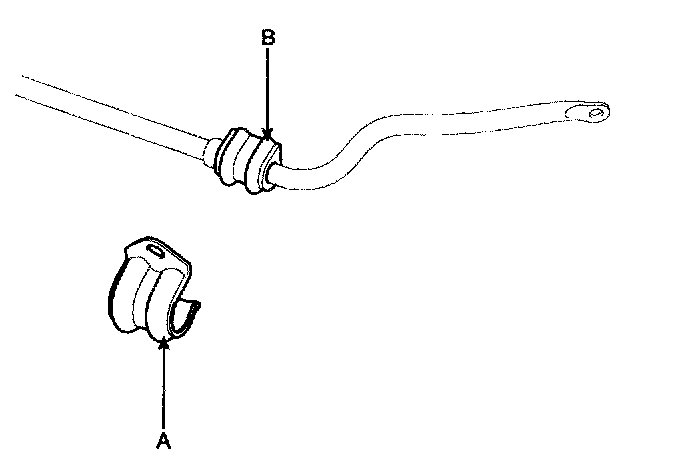

1. Install the mounting bracket (A) and bushing (B) to the rear stabilizer bar.

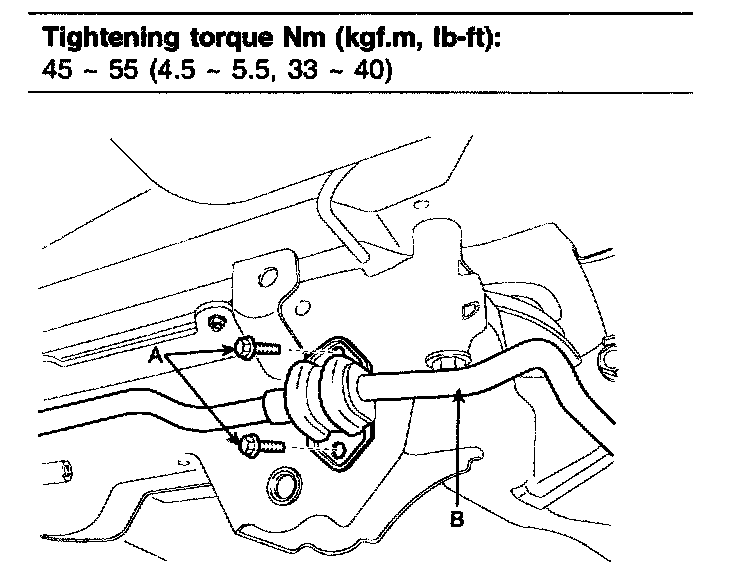

2. Install the rear stabilizer bar (B) to the cross member by tightening the bracket mounting bolts (A).

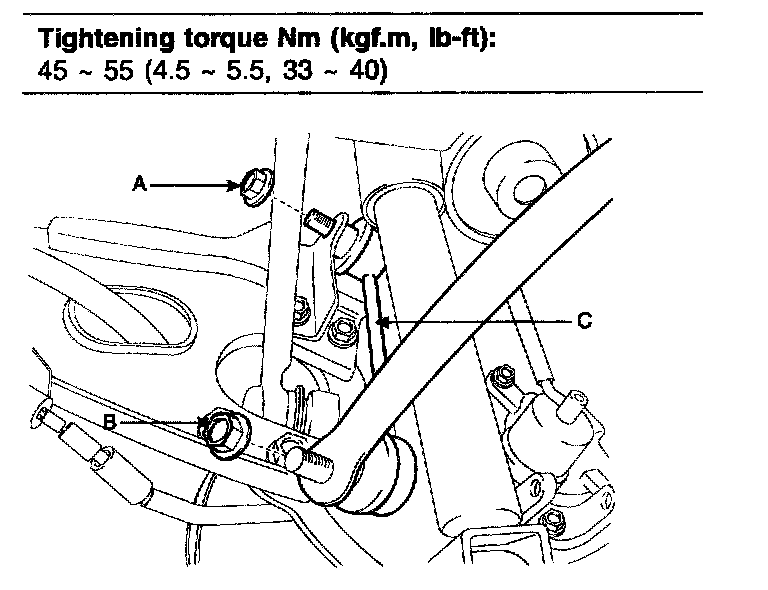

3. Connect the rear stabilizer link (C) between the rear stabilizer bar and the trailing arm and then tighten the nut (A, B).





4. Install the rear wheel & tire.

Tightening torque Nm (kgf.m, lb-ft): 90 - 110 (9.0 - 11.0, 65 - 80)

CAUTION: Be careful not to damage the hub bolts when installing the rear wheel & tire.
