Installation

FRONT STABILIZER BAR

INSTALLATION

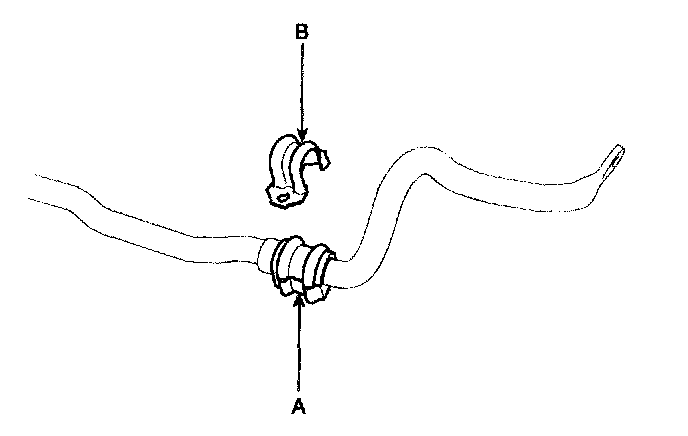

1. Install the bushing (A) and the bracket (B) to the stabilizer bar.

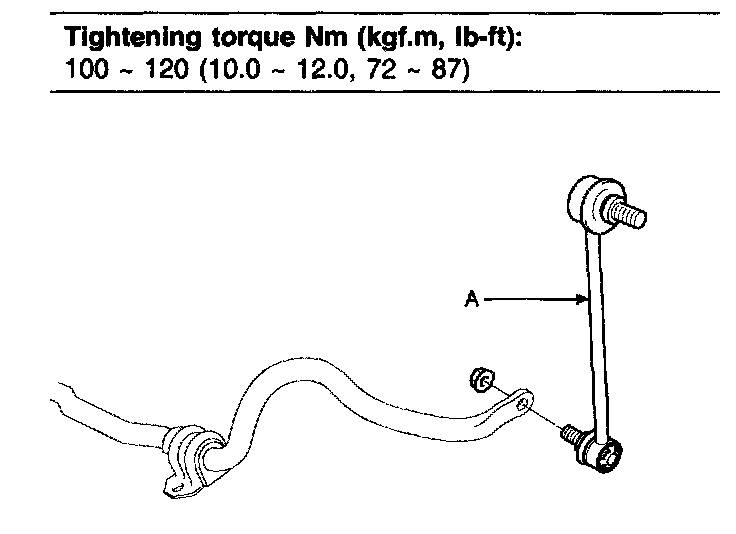

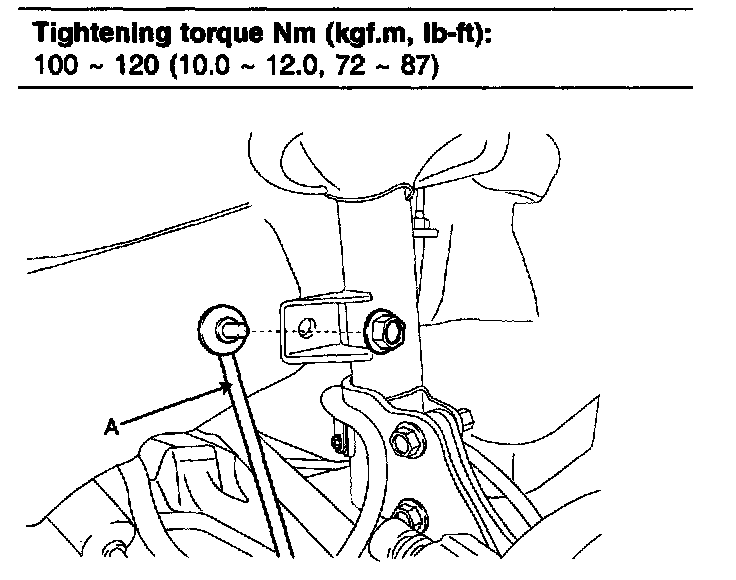

2. Connect the stabilizer link (A) with the stabilizer bar by tightening the nut.

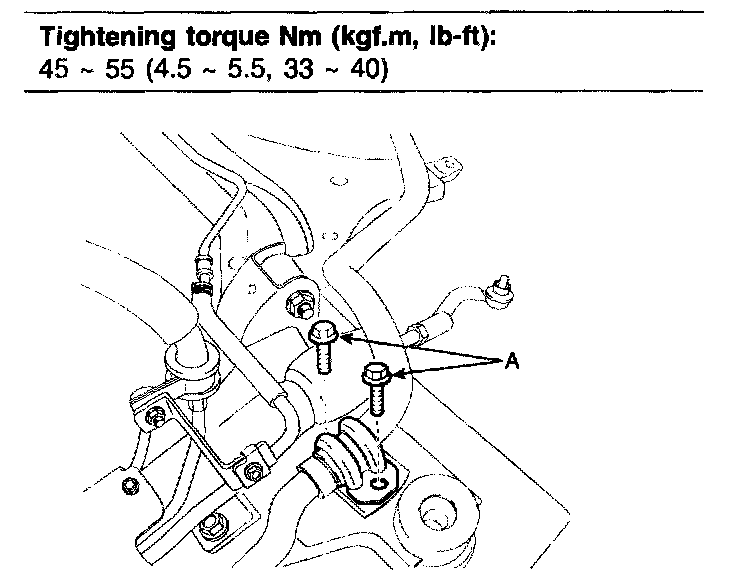

3. Install the stabilizer to the sub-frame by tightening the bracket mounting bolts (A).

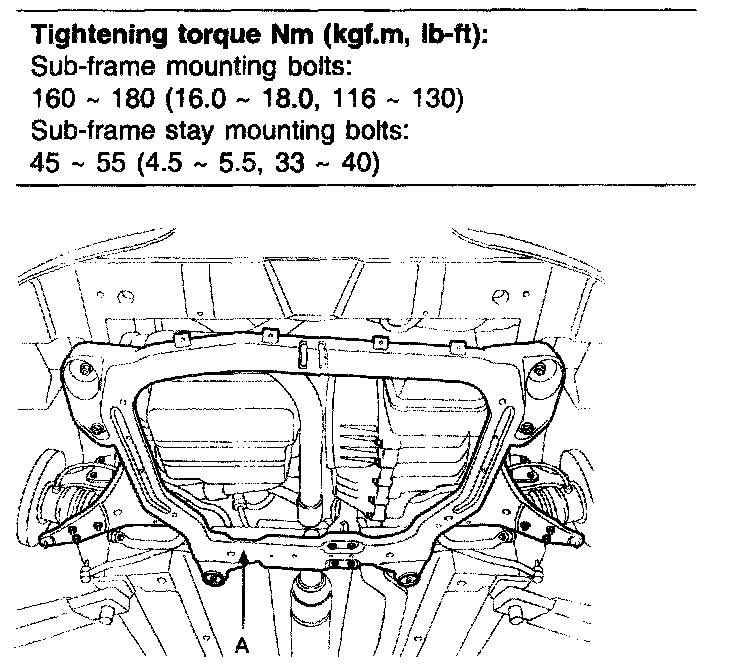

4. Install the sub-frame (A) and stay.

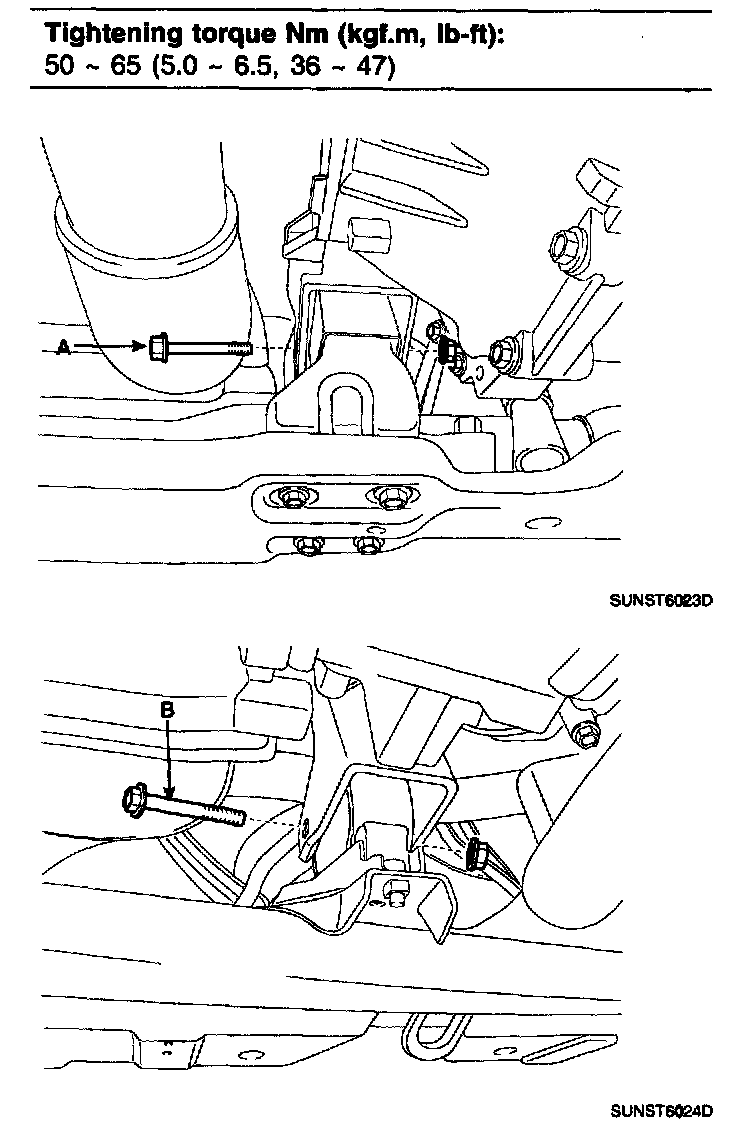

5. Install the front and rear roll stopper through bolts (A, B) and then tighten the nuts.

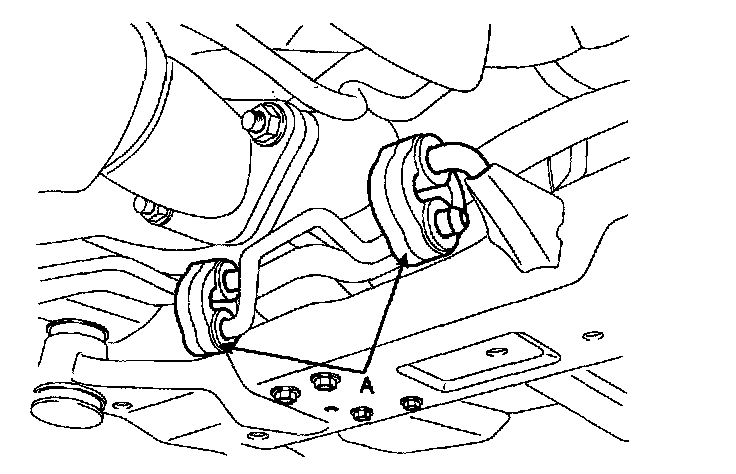

6. Install the muffler rubber hanger (A).

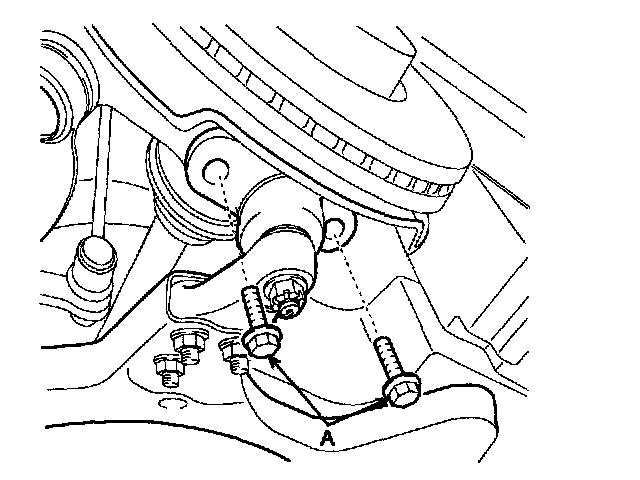

7. Connect the lower arm with the knuckle by tightening the mounting bolts (A).





8. Connect the tie-rod end with the knuckle and then install the castle nut and split pin.

Tightening torque Nm (kgf.m, lb-ft): 24 - 34 (2.4 - 3.4, 17 - 25)

9. Connect the stabilizer link (A) with front strut assembly and then tighten the nut.

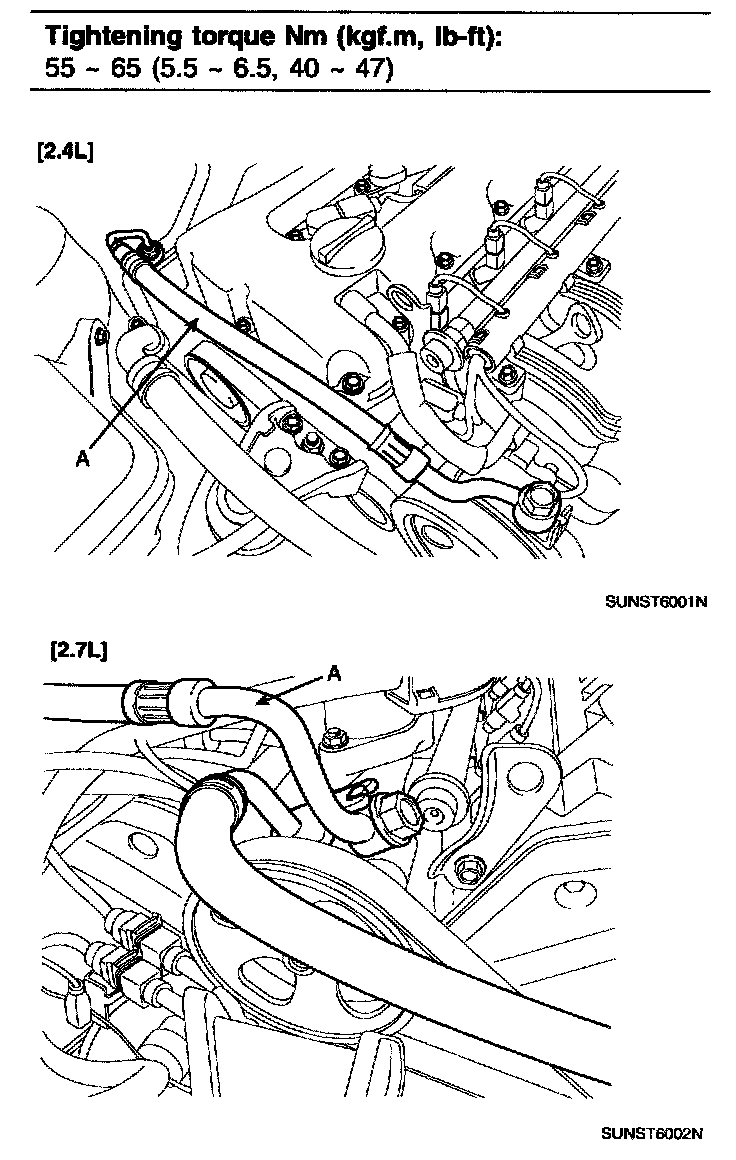

10. Connect the power steering return hose (A).





11. Connect the pressure tube (A) to the power steering pump by tightening the eye bolt.

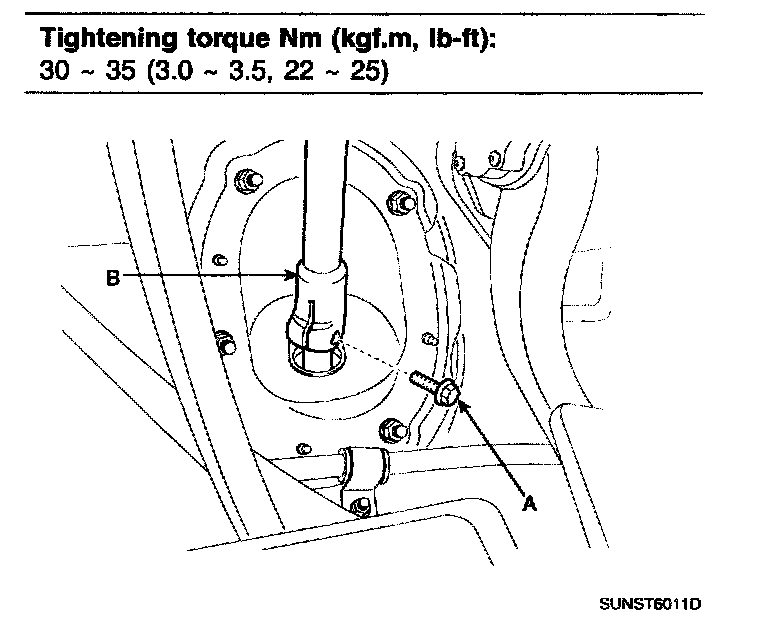

12. Connect the universal joint assembly (B) with the pinion of the steering gear box and then tighten the bolt (A).





13. Install the front wheel & tire.

Tightening torque Nm (kgf.m, lb-ft): 90 - 110 (9.0 - 11.0, 65 - 80)

CAUTION: Be careful not to damage the hub bolts when installing the wheel & tire.

14. Bleed the power steering system.
