Rear Upper Arm

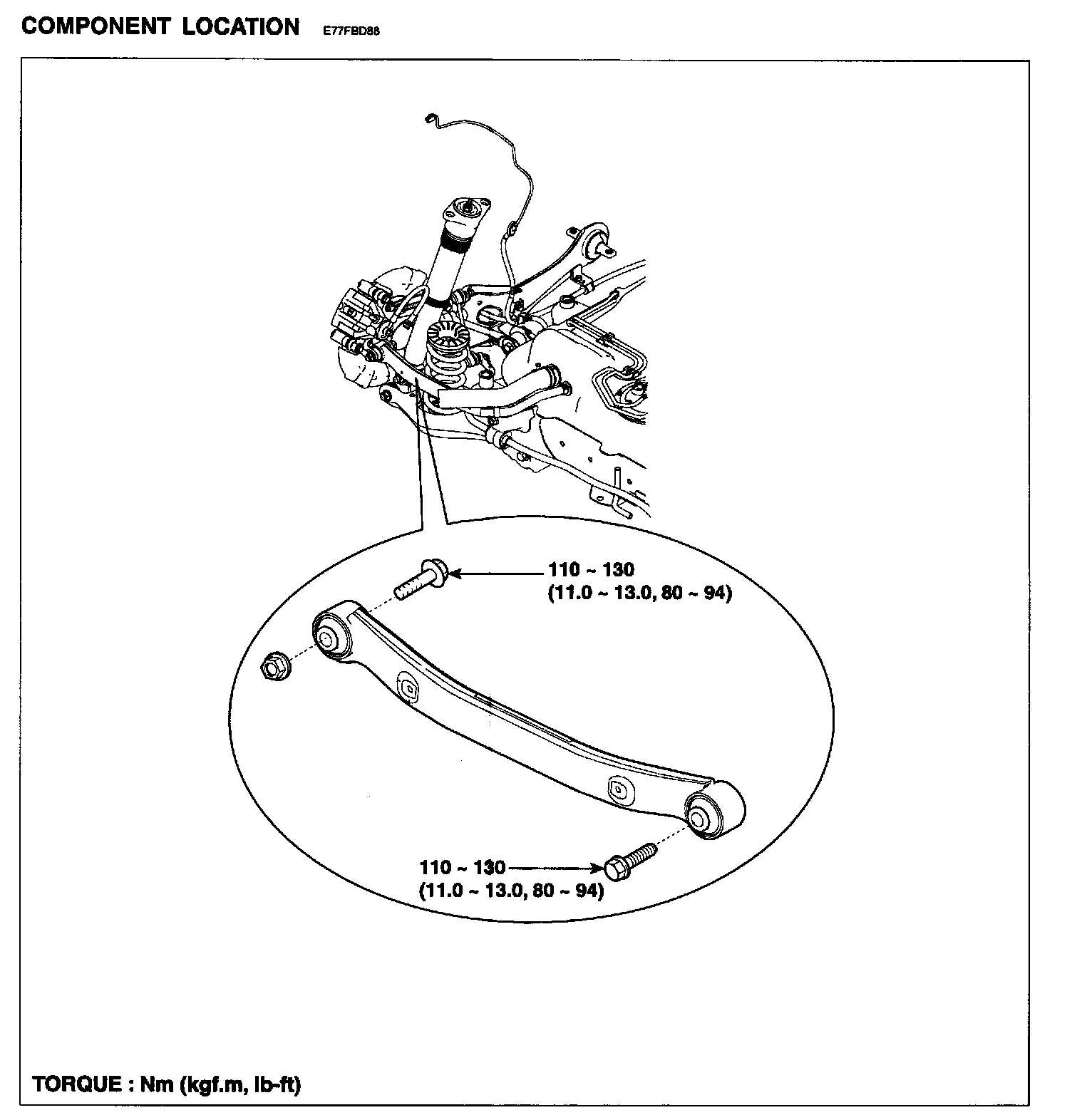

UPPER ARMComponent Location:
REMOVAL
1. Remove the rear wheel & tire.
CAUTION: Be careful not to damage the hub bolts when removing the rear wheel & tire.

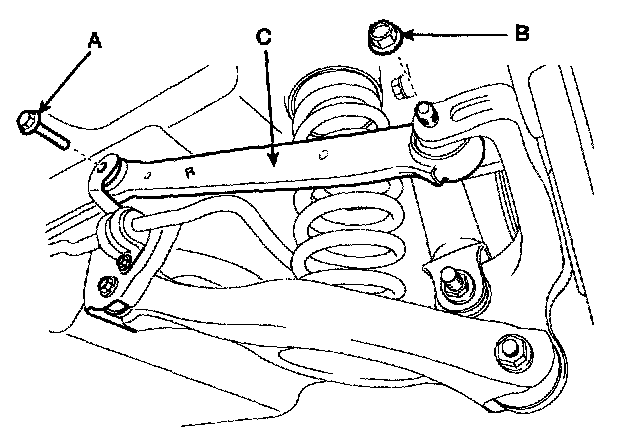

2. Remove the rear upper arm (C) by loosening the mounting bolts & nut (A, B).
REMOVAL
1. Remove the rear wheel & tire.
CAUTION: Be careful not to damage the hub bolts when removing the rear wheel & tire.
2. Remove the rear upper arm (C) by loosening the mounting bolts & nut (A, B).
