Rear Assist Arm
REAR ASSIST ARMINSTALLATION

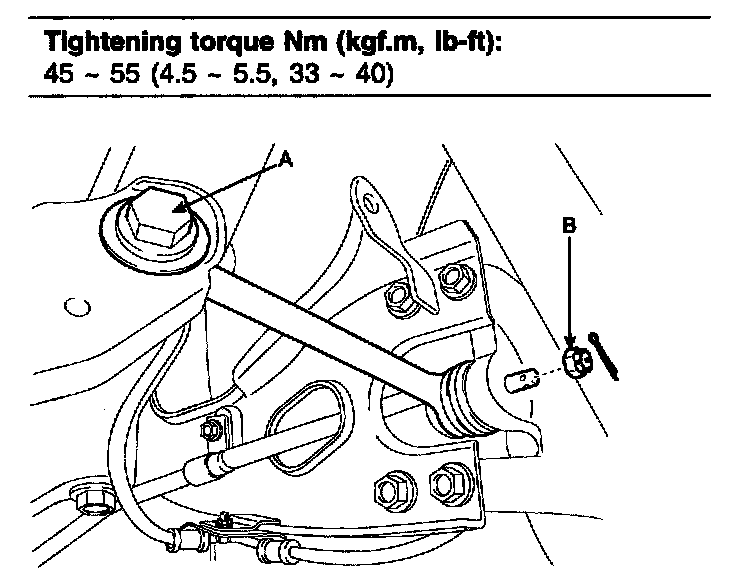

1. Install the rear assist and the cam bolt (A) and then tighten the nut.
Tightening torque Nm (kgf.m, lb-ft): 80 - 100 (8.0 - 10.0, 58 - 72)
2. Install the castle nut (B) and split pin to the rear assist arm ball joint.
3. Install the rear wheel & tire.
Tightening torque Nm (kgf.m, lb-ft): 90 - 110 (9.0 - 11.0, 65 - 80)
CAUTION: Be careful to damage the hub bolts when Installing the wheel & tire.
