Removal

FRONT LOWER ARM

COMPONENT LOCATION

Component Location:

REMOVAL
1. Remove the front wheel & tire.

CAUTION: Be careful not to damage the hub bolts when removing the front wheel & tire.

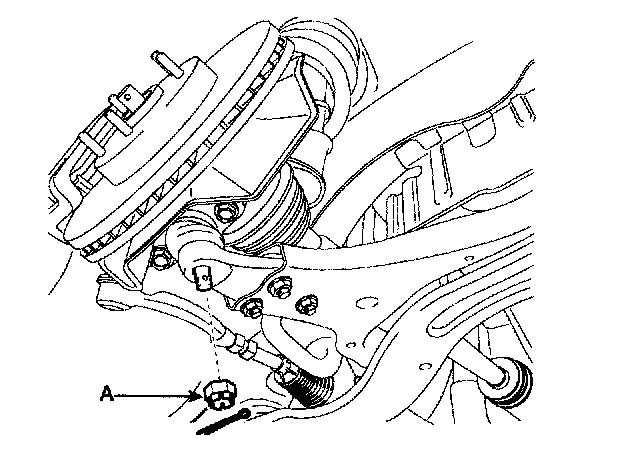

2. Remove the split pin and the castle nut (A) from the lower arm ball joint.

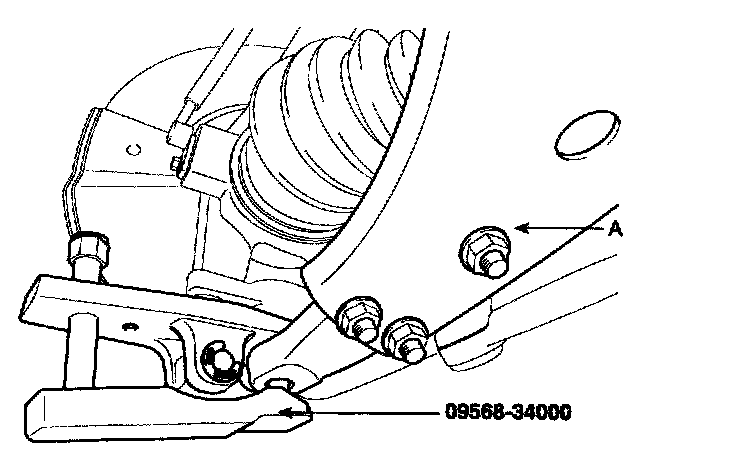

3. Separate the lower arm from the lower arm (A) ball joint by using SST (09568-34000).





4. Loosen the bolts and nut and then remove the lower arm (A) from the sub-frame.
