Installation

STEERING COLUMN & SHAFT

INSTALLATION

CAUTION: Apply the Multi-purpose grease to sliding of the each part before installation.

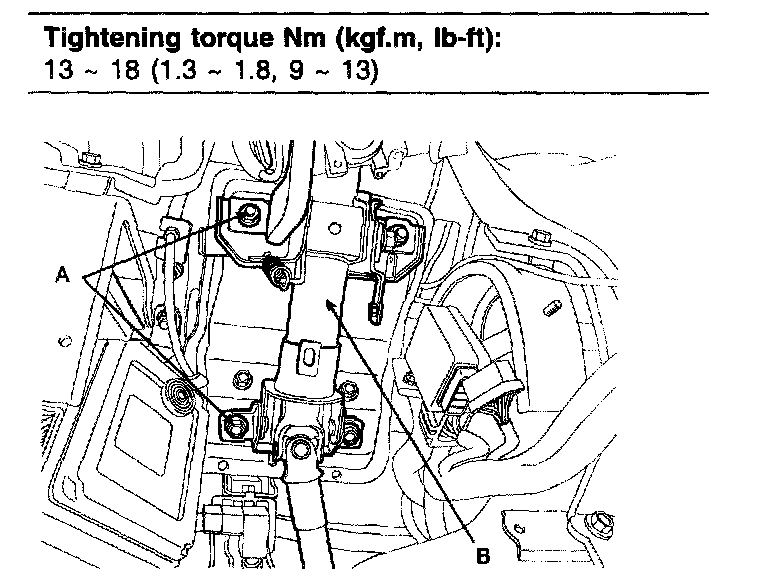

1. Install the steering column & universal joint assembly (B) by tightening the mounting bolts and nuts (A).





CAUTION: Unlike the existing steering column, new replacement part has a pin to prevent the column shaft from tilting, be sure to remove the pin from the tilt bracket after installing the new part.

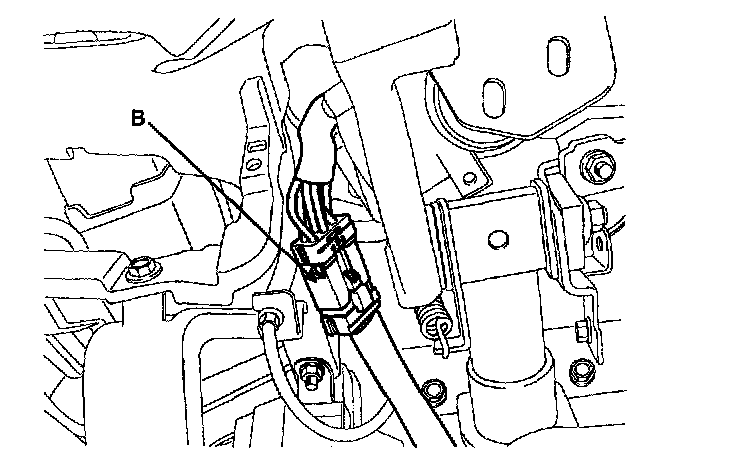

2. Connect the connector (A, B).

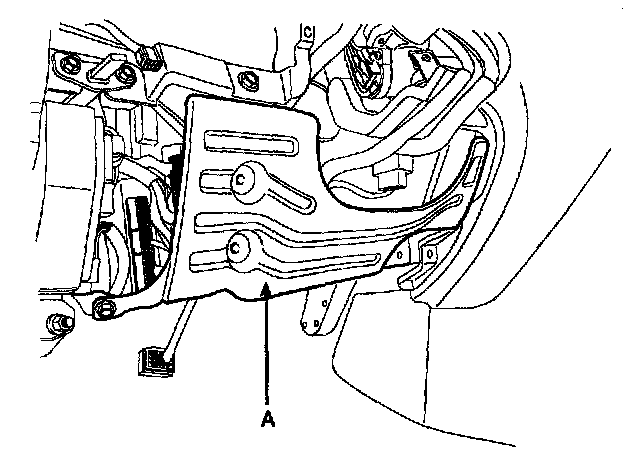

3. Install the reinforce panel (A) by tightening mounting bolts.

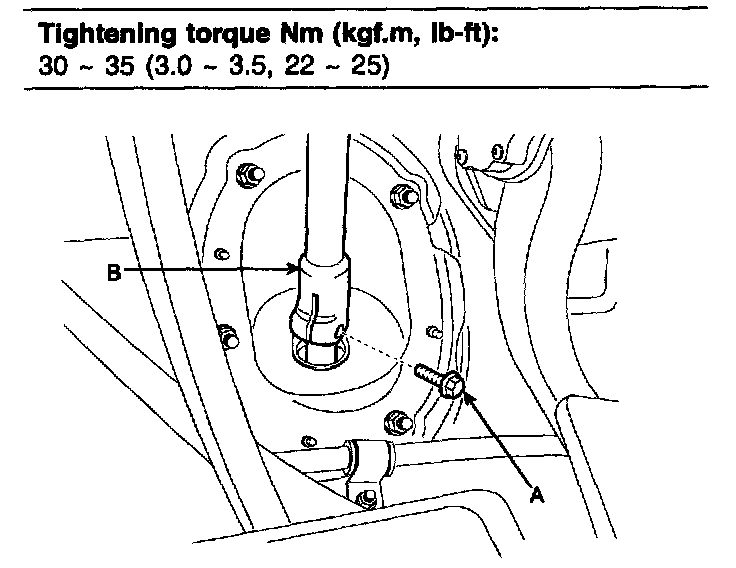

4. Connect the universal joint assembly (B) with the pinion of the steering gear and then tightening the bolt (A).

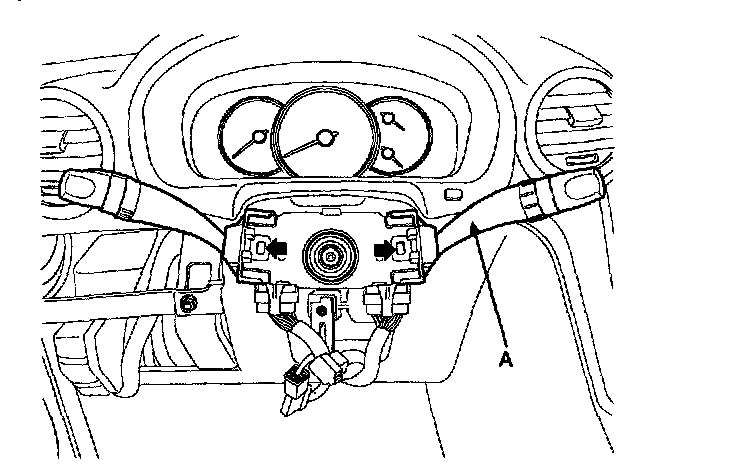

5. Install the multifunction switch (A) to the steering column assembly.

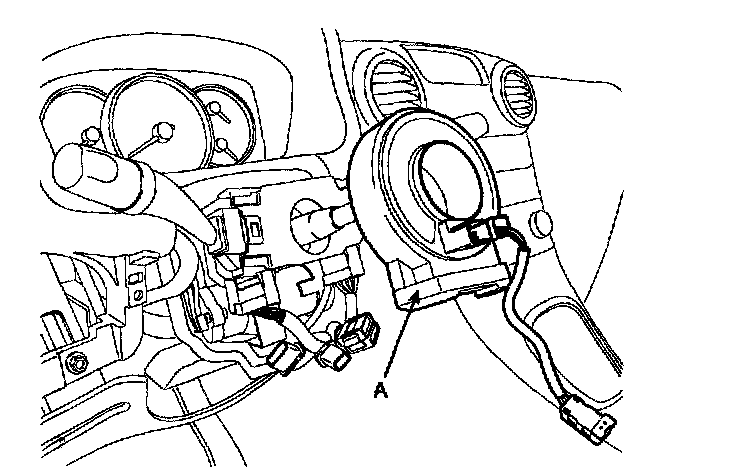

6. Install the clock spring (A) to steering column assembly and then connect the connectors.

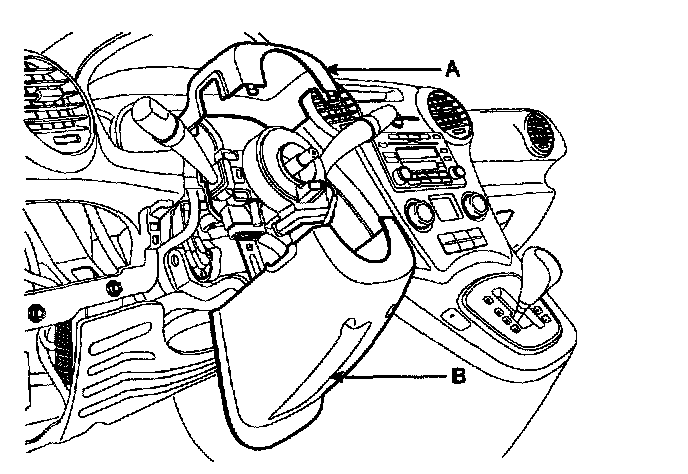

7. Install the steering column upper and lower shroud (A, B).

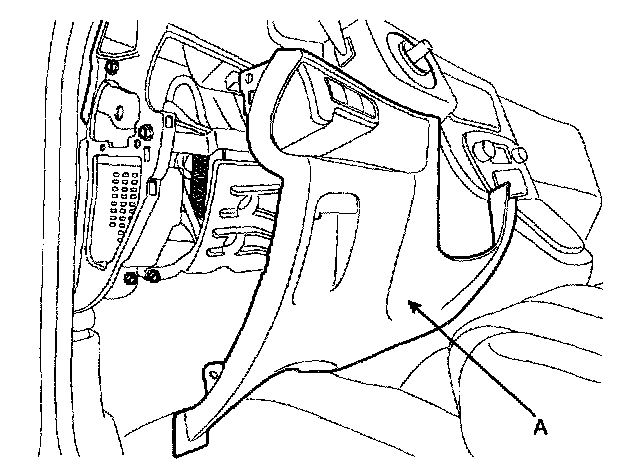

8. Install the lower crash pad (A).





9. Install the parking brake release lever (A) to lower crash pad.





10. Install the steering wheel to the steering column shaft and then tighten the lock nut and washer together.

Tightening torque Nm (kgf.m, lb-ft): 40 - 50 (4.0 - 5.0, 29 - 36)

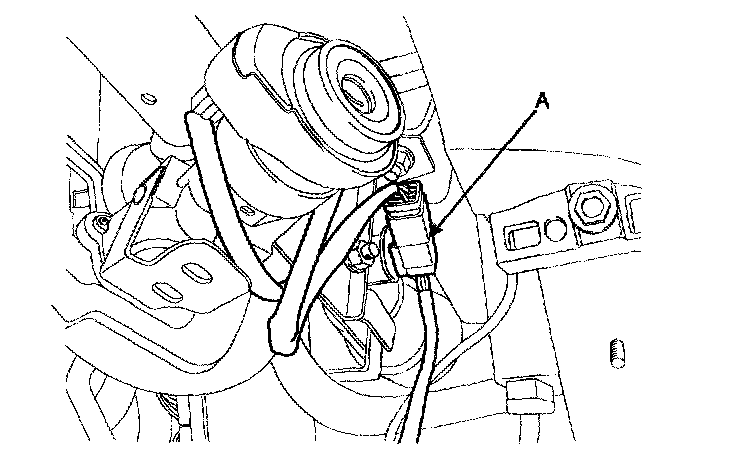

11. Connect the remote switch connector (A) and install the dynamic damper (B).

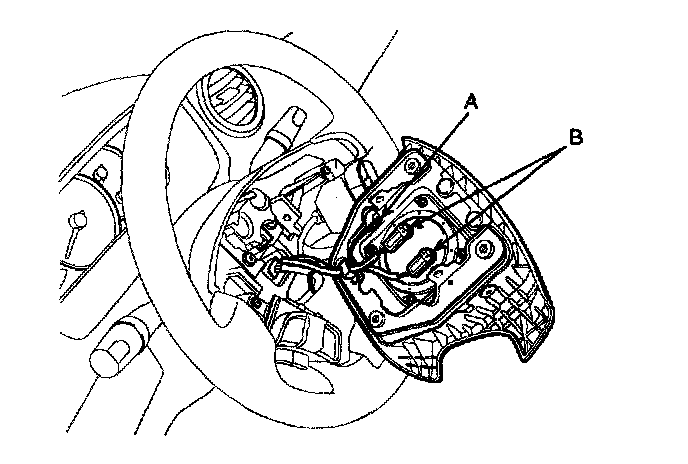

12. Connect the air bag module and horn connector (A, B) to the air bag module and then install the air bag module to the steering wheel.





13. Tighten the torx bolts which are located on the both side of steering wheel.





14. Connect the battery negative cable to the battery.
