Installation

POWER STEERING OIL PUMP

INSTALLATION

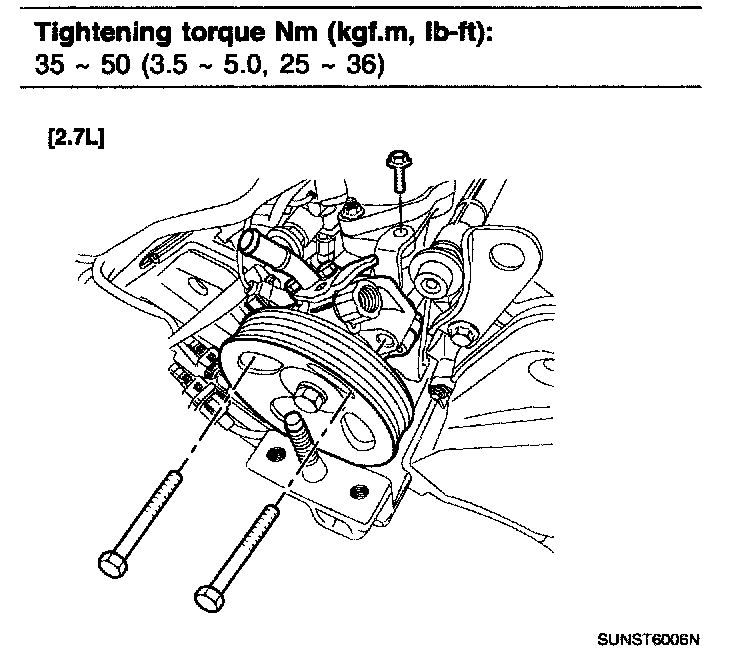

1. Install the power steering pump and tighten the mounting bolts.

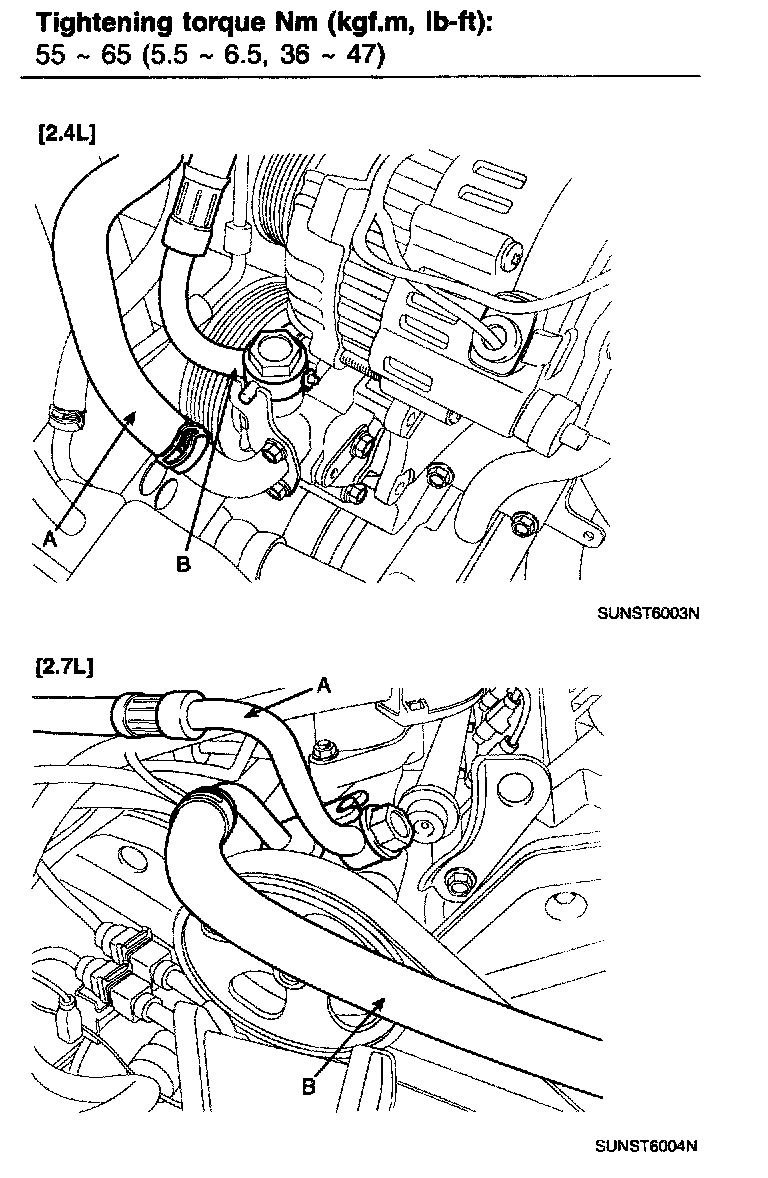

2. Connect the suction hose (B) with suction pipe.

3. Connect the pressure tube (A) to power steering pump by tightening the eye bolt.





4. Install the drive belt.

5. Add power steering fluid to reservoir.

6. Bleed the power steering system. (Refer to Air bleeding)

7. Check power steering pump relief pressure. (Refer to Pump pressure test)
