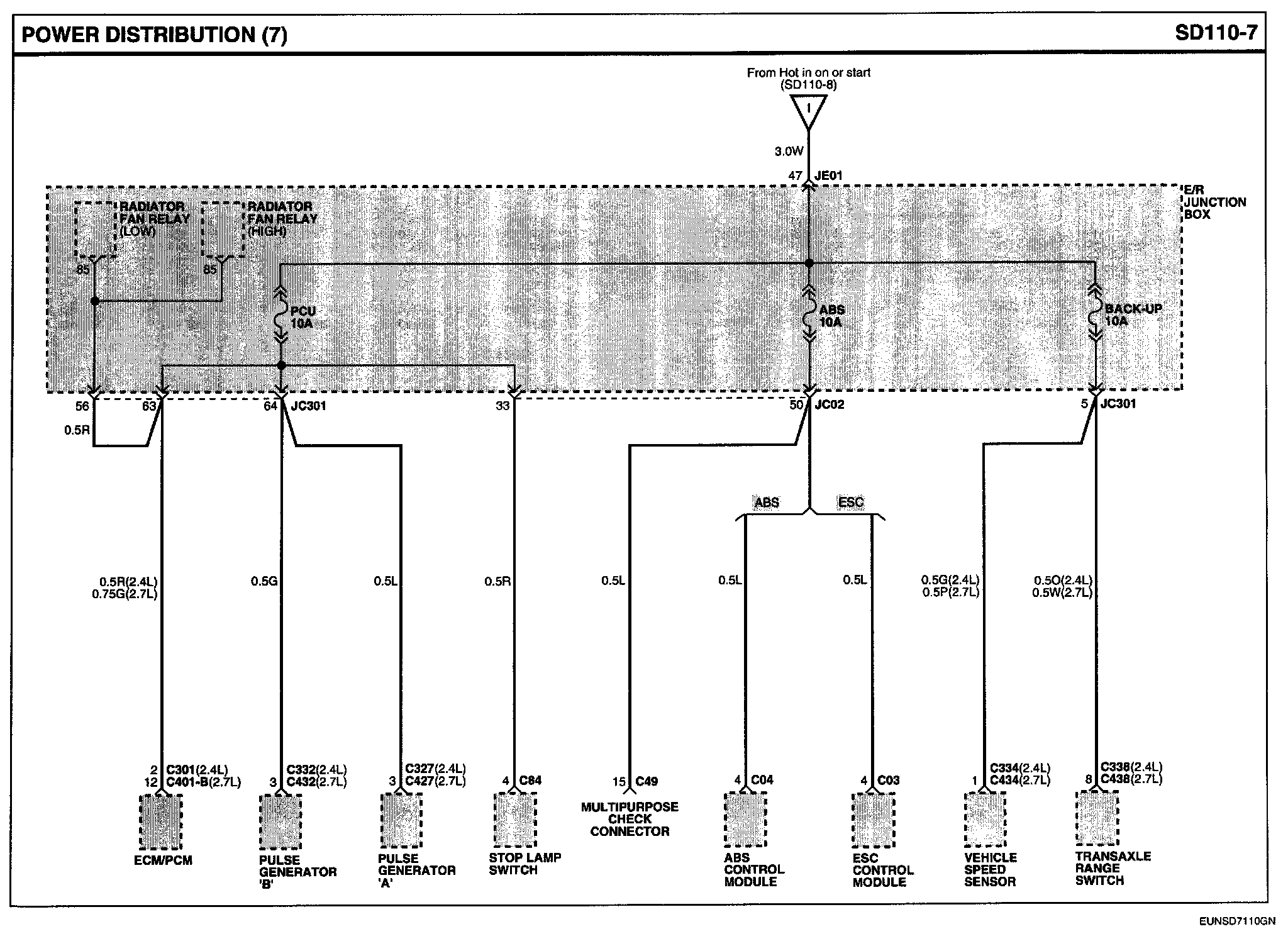

Power Distribution (7)

Power Distribution (7):






Next Diagram Power Distribution (8)

Previous Diagram

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations
