Front Brake Disc Thickness Check
Front Brake Disc Thickness Check

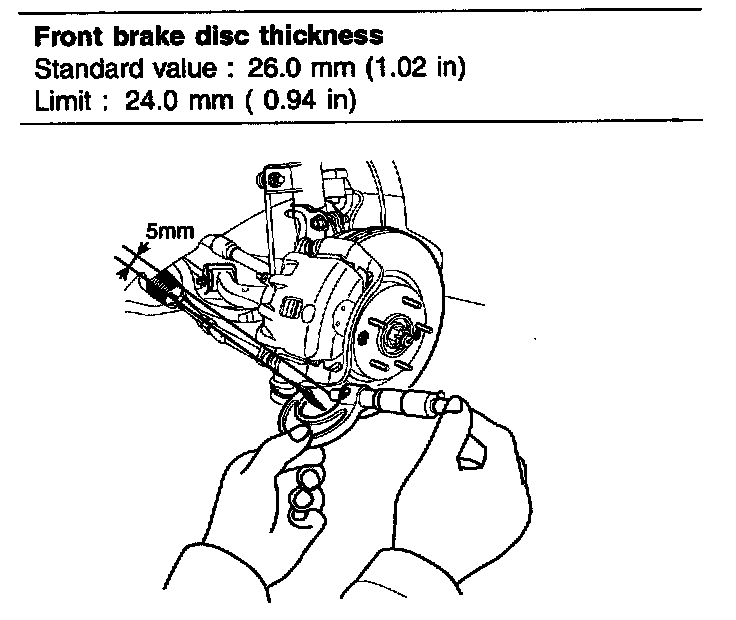

FRONT BRAKE DISC THICKNESS

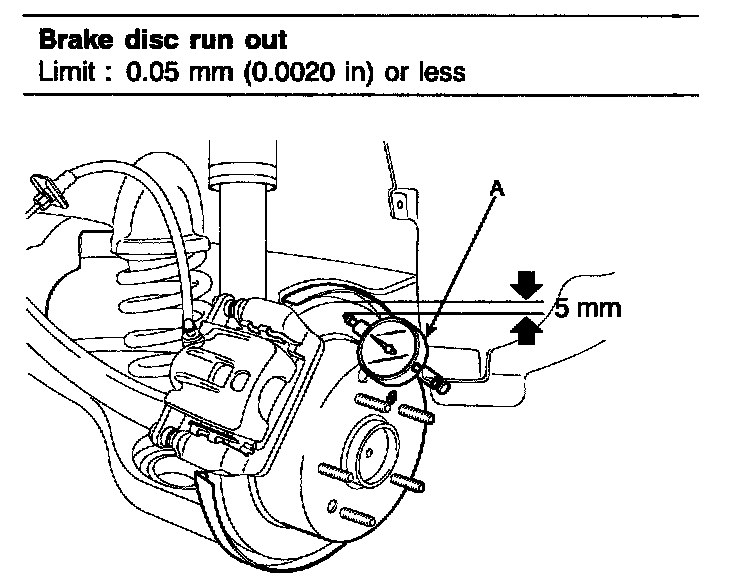

FRONT BRAKE DISC RUN OUT

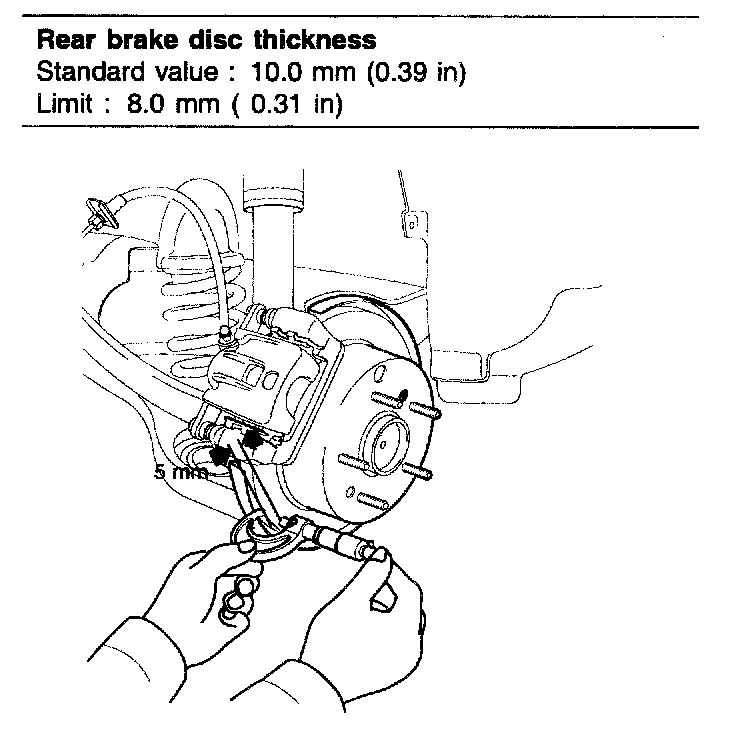

REAR BRAKE DISC THICKNESS
REAR BRAKE DISC RUN OUT
