Home >> Kia >> 2007 >> Rondo L4-2.4L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Starting and Charging

Starting and Charging

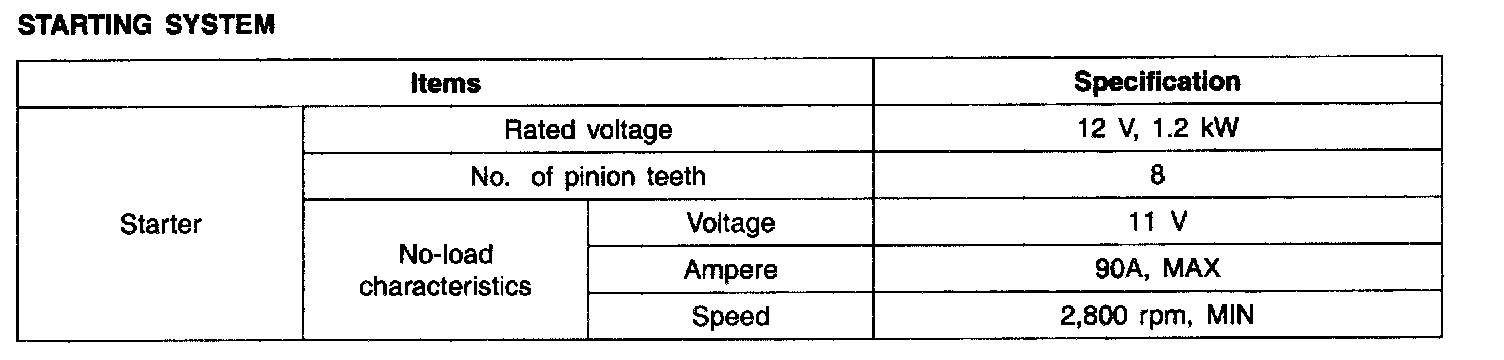

Starting System - Specification:

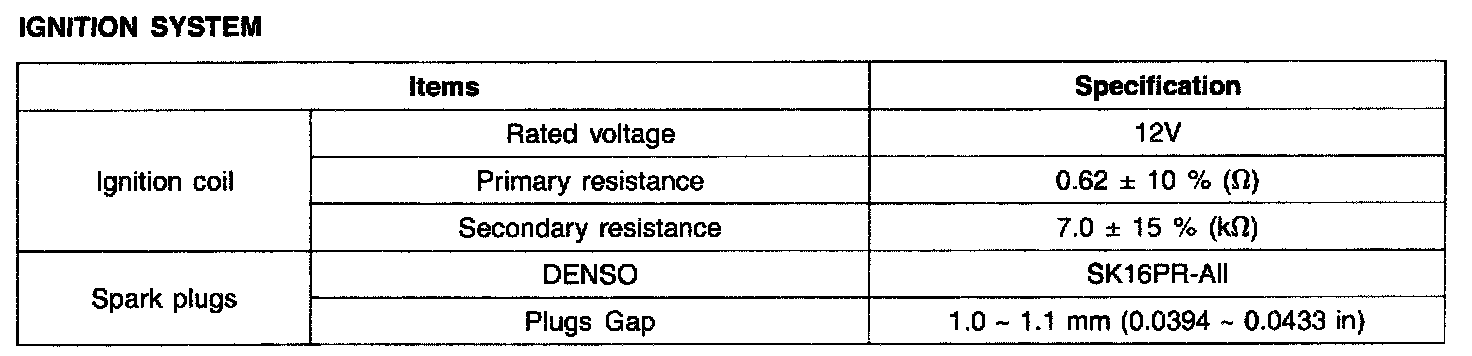

Ignition System - Specifications:

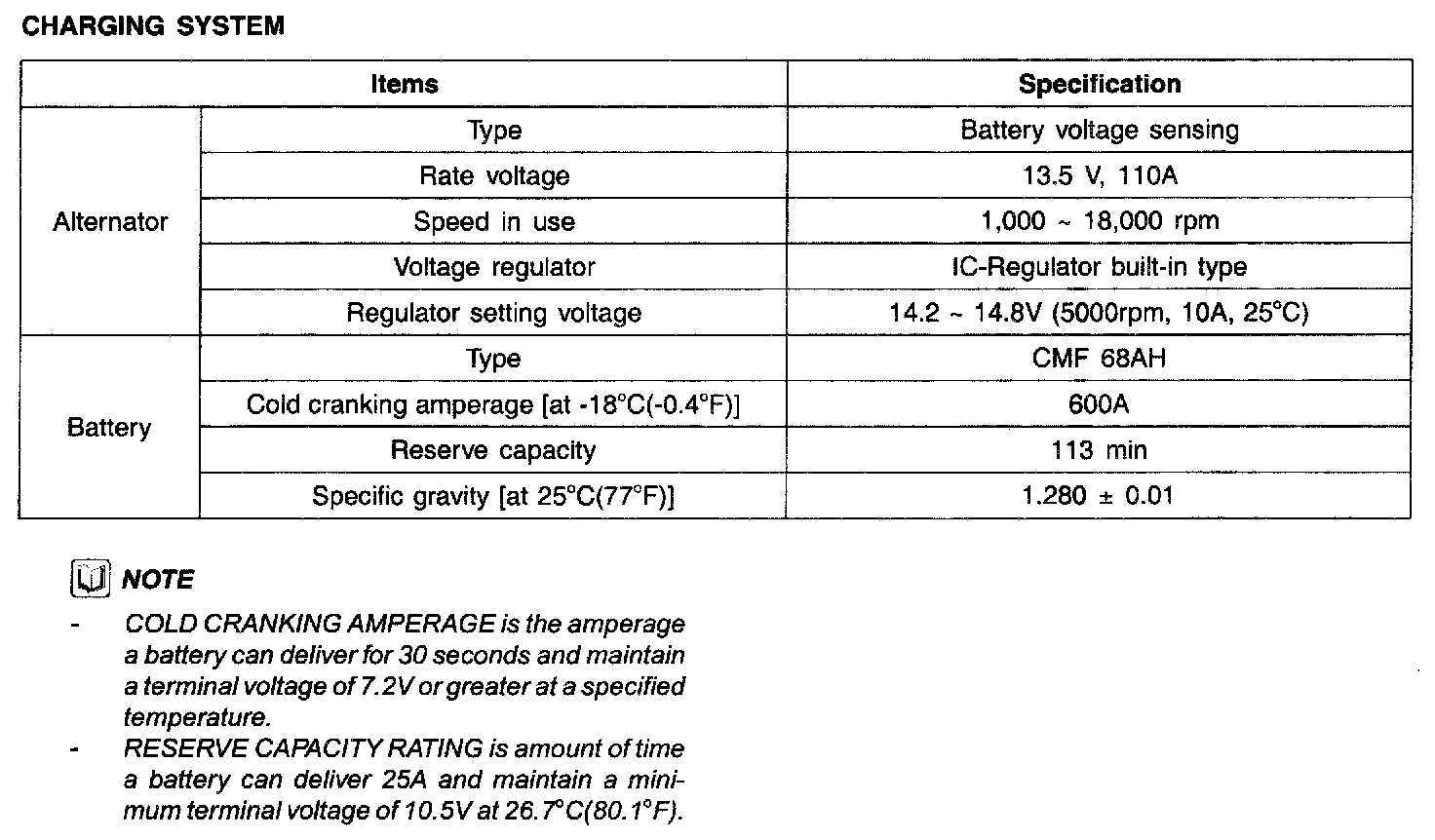

Charging System - Specifications:
