Home >> Kia >> 2007 >> Rondo L4-2.4L >> Repair and Diagnosis >> Specifications >> Capacity Specifications >> Heating and Air Conditioning >> System Specifications

System Specifications

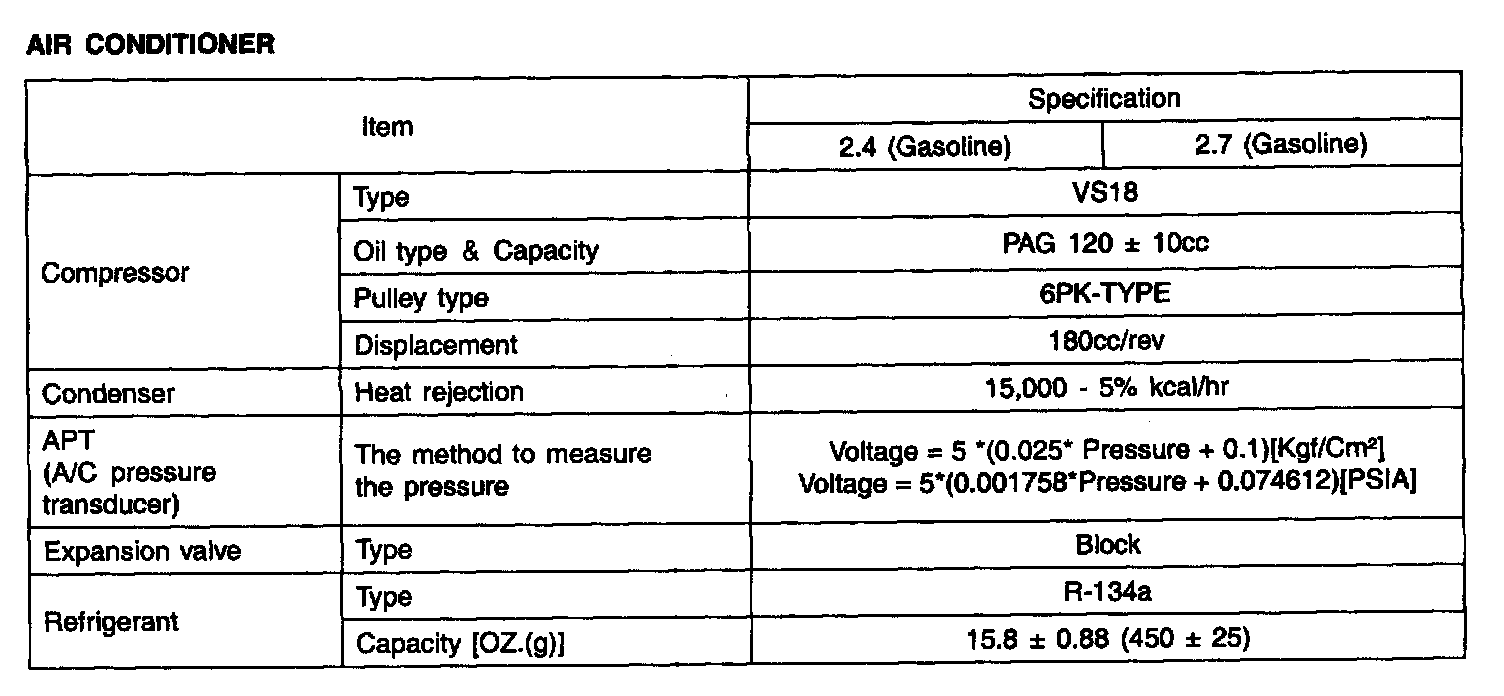

Air Conditioner - Specification:

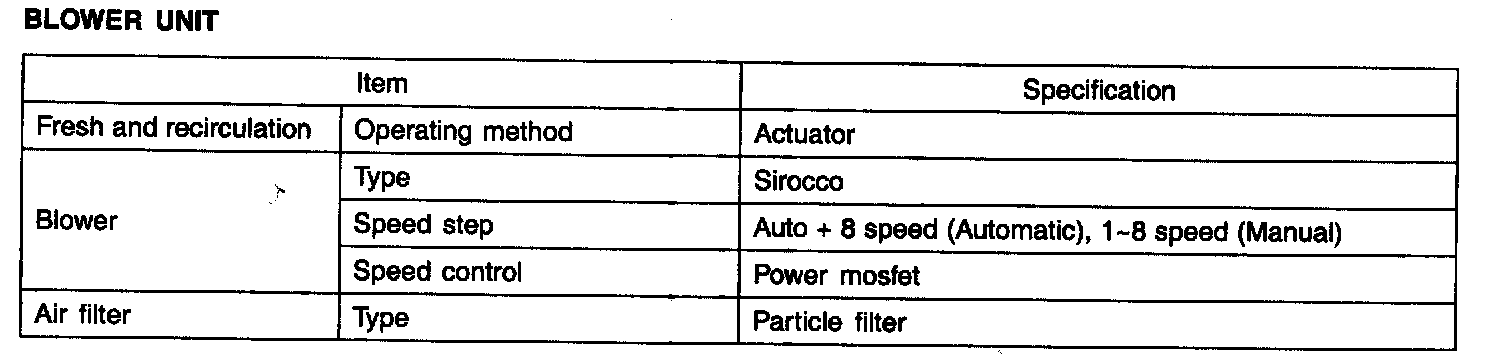

Blower Unit - Specification:

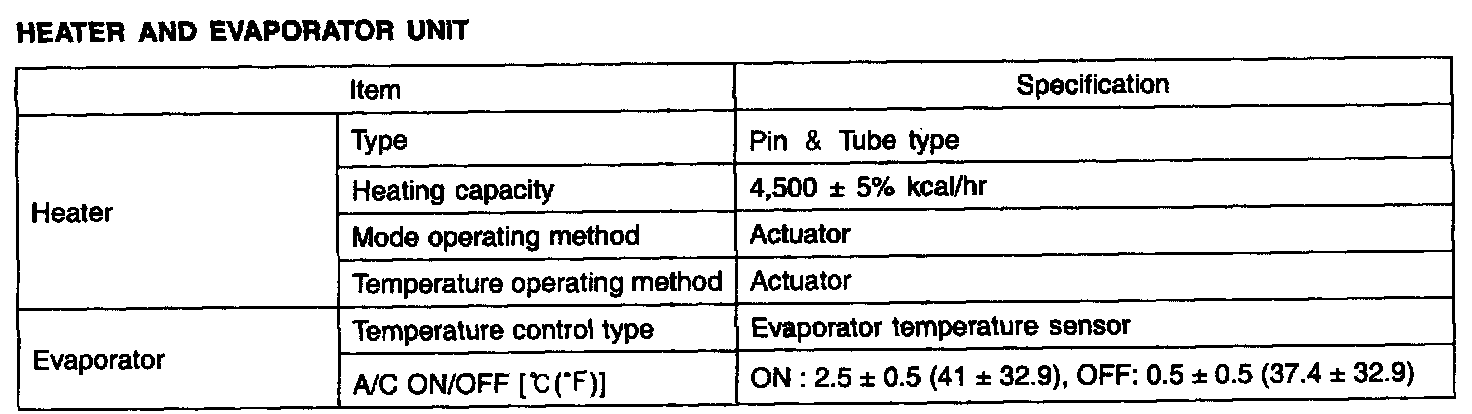

Heater And Evaporator Unit - Specification:
