Hazard Warning Switch: Testing and Inspection

TURN / HAZARD LAMPS

INSPECTION

HAZARD LAMP SWITCH
1. Disconnect the negative (-) battery terminal.

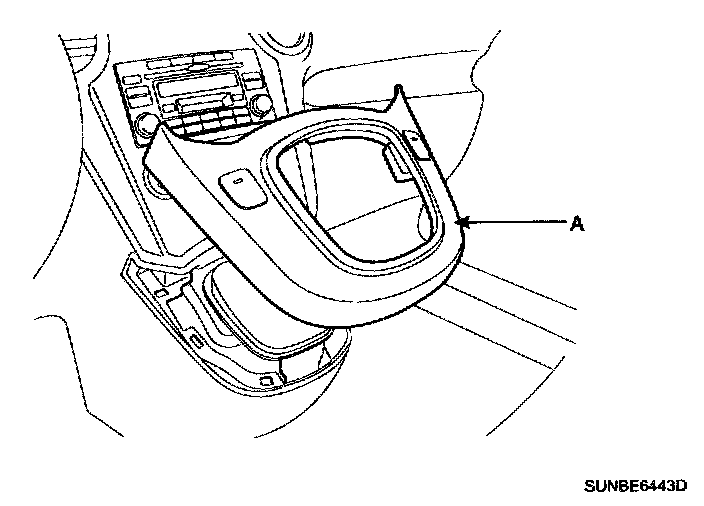

2. Remove the console lower cover (A).

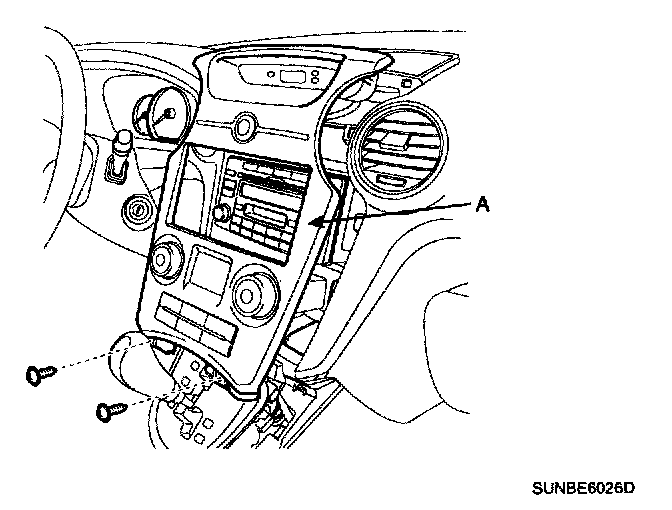

3. Remove the crash pad center facia panel (A).
4. Disconnect the hazard lamp switch connector.

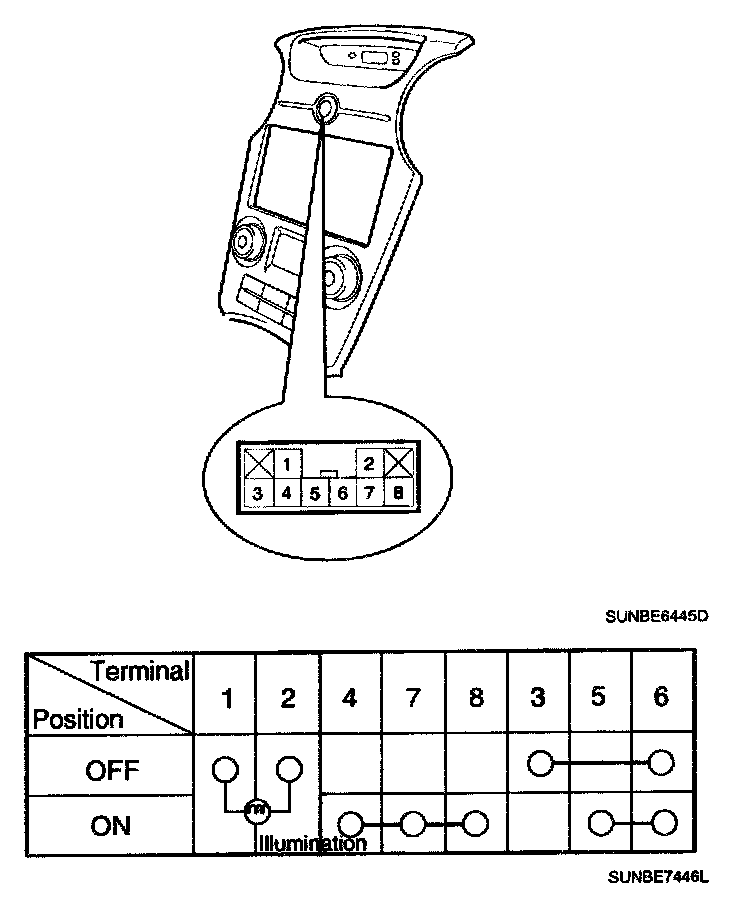

5. Operate the switch and check for continuity between terminals with an ohmmeter.
