Refrigerant Pressure Sensor / Switch: Service and Repair

A/C PRESSURE TRANSDUCER

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Recover the refrigerant with a recovery/charging station.

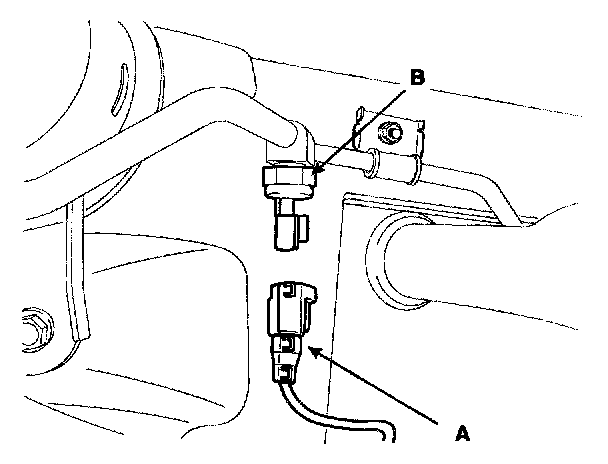

3. Disconnect A/C pressure transducer connector (3P) (A).




4. Remove the A/C pressure transducer (B).

WARNING: Take care that liquid & suction pipe are not bent.

5. Installation is the reverse order of removal.

TORQUE: 10 - 12 N.m (1.0 - 1.2 kgf.m, 7.4 - 8.8 lbf.ft)
